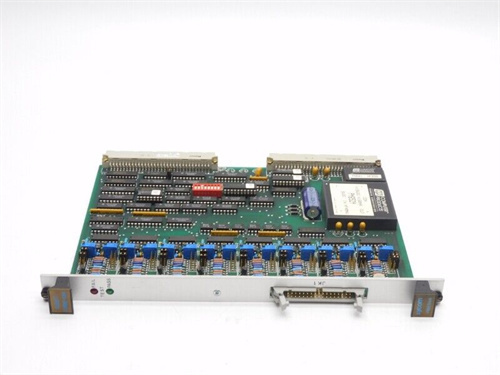

Xycom XVME-653 Controller Technical Specifications

The Xycom XVME-653 is a high-performance VMEbus-based controller module designed for demanding industrial automation, control, and embedded computing applications. Leveraging advanced processing capabilities and robust I/O interfaces, the XVME-653 delivers reliable performance in critical environments.

Key Features

1. Powerful Processor
   • Equipped with an Intel® Pentium® MMX 233 MHz CPU, the XVME-653 provides efficient computation for real-time control tasks.
   • Features a 512 KB synchronous L2 cache, enhancing data access speeds and system responsiveness.
2. Flexible Memory Configuration
   • Supports up to 256 MB of fast-page mode or EDO DRAM, enabling scalable memory options to suit application requirements.
3. VMEbus Compliance
   • Fully compliant with the VMEbus Specification (ANSI/VITA 1-1994), ensuring seamless integration with existing VME systems.
   • Functions as both a DTB (Data Transfer Bus) Master and Slave, supporting A32/A24/A16 and D64/D32/D16/D08 data transfer modes.
4. Rich I/O Interface Options
   • PCI-to-VMEbus Interface: Enables compatibility with standard PC software and operating systems while utilizing VMEbus multiprocessing capabilities.
   • Ethernet Controller: Integrated 10/100 Mbps Ethernet for network connectivity.
   • Serial and Parallel Ports: Includes two high-speed serial ports and an EPP/ECP parallel port for versatile peripheral connectivity.
   • USB Port: Supports USB devices for modern expansion needs.
   • PS/2 Keyboard/Mouse Ports: Facilitates user interaction with standard input devices.
5. High Reliability and Durability
   • Designed for industrial environments, the XVME-653 operates reliably in temperatures ranging from 0°C to 60°C (32°F to 140°F).
   • Robust construction ensures long-term stability in harsh conditions.
6. Expansion Capabilities
   • Supports optional PMC/PC/104 expansion modules for additional functionality, such as specialized I/O, FPGA processing, or custom interfaces.

Applications

• Industrial Automation: Ideal for real-time control systems in manufacturing, process control, and robotics.
• Aerospace and Defense: Suitable for avionics, radar systems, and mission-critical applications requiring high reliability.
• Transportation: Used in train control systems, traffic management, and other transportation infrastructure.
• Test and Measurement: Enables high-speed data acquisition and control in laboratory and field environments.

Technical Specifications

• Form Factor: Single-slot VMEbus module (9.2″ × 6.3″ / 233 mm × 160 mm).
• Power Requirements: 220V AC input, 2700W power consumption (specific to configuration).
• Operating Systems: Supports DOS, Windows®, and real-time operating systems (RTOS) like VxWorks® and QNX®.
• Warranty: Backed by a two-year limited warranty for parts and labor.

Why Choose the Xycom XVME-653?

• Legacy Support: Maintains compatibility with existing VMEbus infrastructure while offering modern processing power.
• Scalability: Flexible memory and I/O options allow customization for diverse applications.
• Proven Reliability: Trusted in critical industries for decades, ensuring uptime and performance.

The Xycom XVME-653 is a versatile and robust controller module that combines the reliability of VMEbus architecture with the performance of modern computing, making it an ideal choice for industrial and defense applications.
