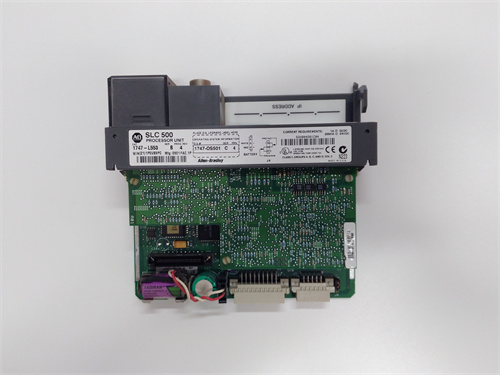

A-B 1747-L553 Detailed Introduction

A-B 1747-L553 is a processor module for Allen-Bradley SLC 500 series PLC(Programmable Logic Controller).The following is a detailed introduction to the module.

Basic properties

Model:1747-L553

Brand:Allen-Bradley(abbreviated as A-B)

Series:SLC 500

Technical specifications and functions

Processor type:SLC 5/05 processor

Memory:Has the highest memory in the SLC 5/05 category,i.e.64 KB

Communication interface

Integrated RS32 sub-D 9-pin connector for point-to-point communication with a locally installed human-machine interface(HMI)or programming workstation.

There is an integrated Ethernet port with a transmission speed of 10/100 mbps,suitable for long-distance communication,with a minimum distance of 100 meters.

The two communication ports can be used simultaneously without affecting the logic execution capability of the processor.

Processing power:Suitable for medium and large applications,control requirements range from manual to automatic control of discrete or analog loops,and the implementation of complex control techniques using a large number of embedded instructions.

Programming:Programming languages​​such as Ladder Logic may be used to define logic and control rules.

Application areas

The 1747-L553 processor module is suitable for various industrial automation fields,including but not limited to

Manufacturing:used for automatic control on production lines.

Process control:used to monitor and control process flows in industries such as chemicals and petroleum.

Equipment control:used for automatic control and management of equipment in mechanical equipment,power systems and other fields.

Product features

High performance:using advanced processors and algorithms,it can quickly and accurately process various control logics and data.

Modular design:supports a variety of input and output modules,which can be flexibly configured to meet different control requirements.

Easy to expand:The modular design of the controller makes the system easy to expand,and it is convenient to add or reduce functional modules later.

Multiple communication protocols:supports multiple communication protocols,such as Modbus,Ethernet,etc.,which is convenient for data exchange and control with other devices.

Reliability and stability:With strict production process and quality control,it has high reliability and stability and can run stably for a long time.
