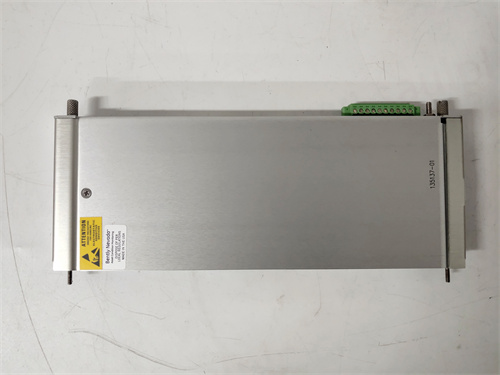

BENTLY 135137-01 Product Details

BENTLY 135137-01 is a position I/O module with internal terminals.It is part of the 3500/45 monitoring system.The module can be used with Proximitors,RPT or DC LVDT to receive and process input signals from rotary potentiometers,proximity sensors,DC linear variable differential transformers(DC LVDT),AC linear variable differential transformers(AC LVDT)and rotary position sensors(RPT).

Main functions

Multi-channel input:BENTLY 135137-01 is a 4-channel device,each channel can receive different types of sensor inputs,which improves the flexibility and reliability of the system.

Signal processing:The module may contain a processor and memory for high-precision processing and storage of input signals.Digital signal processing algorithms such as filtering,amplification,and calibration can be performed to extract useful information.

Alarm function:The module drives alarms by continuously comparing monitoring parameters and configured alarm set points,collecting important machine information for operation and maintenance,thereby protecting the machine.

Programmability:Users can program alarm set points,monitoring parameters,etc.to meet different application requirements.Programming can be performed through 3500 Frame configuration software or other related software.

Communication interface:The module can provide standard digital interfaces,such as serial communication interfaces(such as RS-232,RS-485)or Ethernet interfaces,allowing the module to exchange,transmit or remotely monitor data with other devices or systems.

Technical Specifications

Part Number:135137-01

Manufacturer:Bently Nevada

Series:3500

Product Type:I/O Module with Internal Terminals

Dimensions:241 mm x 24.4 mm x 99.1 mm

Weight:Approximately 0.44 kg(Specific weight may vary due to product manufacturing and configuration differences)

Input Type:Accepts inputs from rotary potentiometers,proximity sensors,DC LVDT,AC LVDT,and RPT

Application Fields

BENTLY 135137-01 can be widely used in various industrial fields,especially in situations where precise monitoring of the displacement and rotational position of mechanical systems is required,such as

Industrial Automation:Used to monitor and control the position or vibration of mechanical parts on the production line.

Power Plant:Monitor the displacement of rotating parts of key equipment(such as turbines,generators).

Aerospace:Monitor the displacement of moving parts in aerospace applications,such as aircraft,missiles,or satellites.

Manufacturing:Measure and monitor the position of production equipment to ensure the accuracy of the production process.

Product Features

High precision and reliability:ensure accurate acquisition and transmission of input signals,which is very important for industrial automation and mechanical control systems.

Fast response time:can monitor and respond to changes in input signals in a timely manner.

Status indication:the module usually provides a status indicator or display to display the status of the input channel,which is convenient for users to monitor and diagnose in real time.

Fault diagnosis function:used to detect and report abnormal status of sensors or signal processing modules,which helps to find and solve potential problems in a timely manner and improve system reliability and safety.
