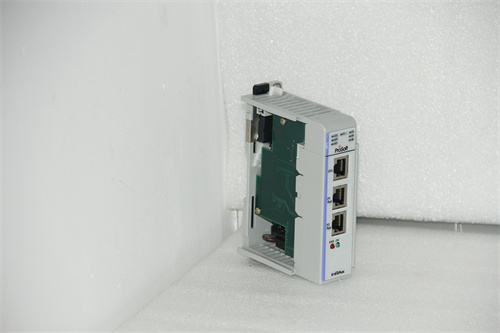

ProSoft MVI69-AFC Product Overview

MVI69-AFC is an oil and gas flow computer module produced by ProSoft Technology.It is part of the ProSoft Technology product series,which also includes a variety of other communication modules.The following is a detailed introduction to MVI69-AFC.

Main functions

MVI69-AFC mainly plays the role of communication and data transmission in industrial automation.It can connect different automation equipment and systems to achieve data exchange and communication control.Through this module,users can easily integrate PLC,sensors,actuators and other devices into the automation system to achieve remote monitoring,data acquisition,fault diagnosis and other functions.

Technical features

Flow calculation function:The MVI69-AFC module can calculate oil and gas flow in real time,including mass flow,volume flow and standard flow.It supports a variety of flow calculation methods and algorithms,which can be configured and adjusted according to actual application requirements.

Multiple input interfaces:The module provides a variety of input interfaces for connecting various sensors and measuring devices,such as pressure sensors,temperature sensors,flow meters,etc.Through these input interfaces,MVI69-AFC can obtain the necessary measurement data for flow calculation.

Data processing and correction:The module has powerful data processing and correction functions,which can process,correct and modify input data.This includes the correction of parameters such as temperature,pressure,density,etc.to improve the accuracy and reliability of flow calculation.

Data communication and integration:The MVI69-AFC module supports a variety of data communication protocols and interfaces,such as Modbus,Ethernet/IP,etc.,and can communicate and integrate data with the main control system or host computer.This allows the oil and gas flow calculation results to be transmitted and monitored in real time,and to exchange and coordinate data with other systems.

Flexible configuration and programming:The module has flexible configuration and programming capabilities,and parameter setting and logic programming can be performed through configuration tools and programming software.Users can customize configuration and function expansion according to specific application requirements to meet specific oil and gas flow calculation requirements.

Application scenarios

The MVI69-AFC module is widely used in the field of industrial automation,especially in the oil and gas industry.It can be used in natural gas compression factor calculation,natural gas flow metering system,oil and gas field station control system and other fields to provide accurate data support for oil and gas production and transportation.

Product Specifications and Parameters

The specific specifications and parameters of MVI69-AFC may vary depending on the product model and production batch.Here are some common specifications and parameter information

Working voltage:usually 24V DC or 220V AC(depending on the product model).

Output frequency:60KHZ(or other frequencies,depending on the product model).

Dimensions and weight:The specific dimensions and weight may vary depending on the product model and production process.

Communication protocol:Supports multiple data communication protocols such as Modbus and Ethernet/IP.
