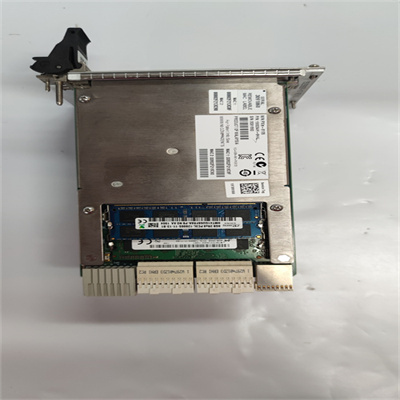

NI PXIe-8135 Detailed Information

NI PXIe-8135 is a high-performance PXI Express embedded controller produced by National Instruments(NI),designed for processor-intensive modular instrumentation and data acquisition applications.The following is a detailed introduction to NI PXIe-8135.

Product Overview

Brand and Model:NI PXIe-8135

Processor:Based on Intel Core i7-3610QE processor,with a base frequency of 2.3 GHz,up to 3.3 GHz in single-core Turbo Boost mode,the quad-core processor provides powerful computing power.

Memory:Dual-channel 1,600 MHz DDR3 memory,standard configuration is 4 GB(1 x 4 GB DIMM),and can be expanded to 16 GB to meet the needs of big data processing.

Bus bandwidth:System bandwidth is up to 8 GB/s,and slot bandwidth is 4 GB/s,ensuring high-speed data transmission.

Product Features

High-performance processor:Quad-core processor configuration,support Turbo Boost technology,can efficiently handle complex measurement and control tasks.

Rich interfaces

Network:2 Gigabit Ethernet ports(10/100/1000BASE-TX)support high-speed network communication.

USB:2 SuperSpeed​​USB ports and 4 high-speed USB ports to meet a variety of peripheral connection needs.

Others:Integrated hard drive,serial port and other peripheral I/O interfaces provide comprehensive connection options.

Real-time operating system support:Can run real-time operating systems,suitable for applications with high real-time requirements,such as control systems and high-precision measurements.

LabVIEW and NI software support:Compatible with NI’s software platforms(such as LabVIEW,LabVIEW Real-Time),providing a wealth of tools and development environments to facilitate users to design and program systems.

High reliability and maintainability

Provide in-ROM memory and hard disk diagnostic functions,users can quickly access in-ROM diagnostics of hard disks and memory without the need for external third-party tools.

Supports rapid on-site replacement of key components(such as hard disks,memory)without affecting the warranty.

Provide hard disk and memory upgrade services to simplify the purchase process of spare components.

Easy to configure and manage

Configuration and management can be performed using the Measurement and Automation Explorer(MAX)tool.

Two methods are provided to rebuild the original factory state of the user’s hard disk to ensure system stability and recoverability.

Application areas

Automated testing:used in automated test systems(ATE)to perform various test and measurement tasks.

Real-time control systems:suitable for applications that require high-performance real-time control,such as motion control,machine vision,etc.

Data acquisition and processing:used for high-speed data acquisition and processing tasks,such as data logging,signal processing,etc.

Industrial measurement and monitoring:used for measurement and monitoring systems in industrial environments to ensure the quality and stability of production processes.

Scientific experiments:suitable for scientific research and experiments in laboratory environments,supporting complex measurement and control tasks.
