ABB PFTL101B 10KN 3BSE004197R1 Product Overview

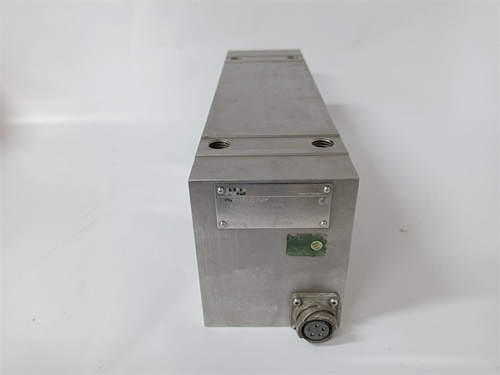

ABB PFTL101B 10KN 3BSE004197R1 is a pressure magnetic force sensor in the ABB Presductor series,designed specifically for industrial tension measurement.Its core advantages lie in high precision,anti-interference ability,and wide load range,suitable for tension control and monitoring in fields such as papermaking,metallurgy,textiles,and packaging.

technical specifications

Parameter item specification description

Rated load 10 kN(approximately 1125 pounds)

Accuracy level±0.5%FS(full-scale error)

Output signal analog signal(mV/V)or digital signal

Working temperature range-20°C to+80°C

Protection level IP65(dustproof and waterproof)

Material:Stainless Steel

Size 25mm×25mm×100mm

Weight 0.5 kg

Displacement 0.015mm

Spring constant 325 kN/mm

Lateral load capacity 30.0 kN

Main features and advantages

Magnetic core technology

Based on the principle of magneto elastic effect,electrical signals are directly generated through magnetic field changes to avoid mechanical deformation interference and ensure measurement stability.

High precision and wide range

Supports a measurement range of 0.01 to 20 kN(for different models)to meet the diverse needs of lightweight to heavy-duty equipment.

Anti interference and environmental adaptability

IP65 protection level,corrosion-resistant,dustproof and waterproof,suitable for high temperature,high humidity and dusty industrial environments.

Modular design

Supports cylindrical plugs or fixed cable connections for quick installation and maintenance,compatible with multiple tension control units(such as Millmate 400).

Multi scenario compatibility

Provide analog/digital dual output mode,compatible with PLC,DCS systems,and third-party controllers,supporting remote monitoring and data integration.

application area

Paper making and metal processing:Monitor the tension of paper and metal strips to ensure the stability of the production process.

Textile and Packaging:Control the tension of yarns and films to improve product consistency.

Metallurgy and Chemical Industry:Used for tension feedback of rolling mills and conveyors,optimizing process parameters.

Automation equipment:integrated into robots and servo systems to achieve precise force control.
