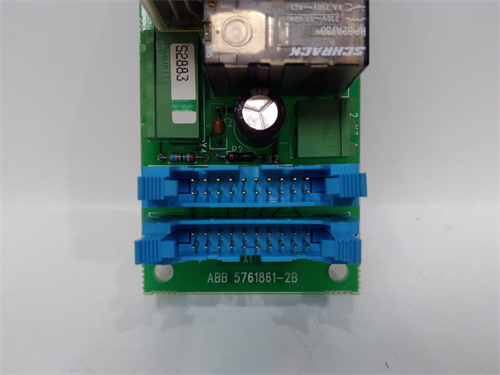

ABB SNAT604 5761861-2B Product Introduction

The SNAT604 5761861-2B module is designed to implement control logic,collect and process data,and communicate with other devices.It supports multiple communication protocols and interfaces,enabling seamless integration with other devices and systems.This module belongs to ABB’s low-voltage control product series and is widely used in various industrial industries,automation equipment and large-scale infrastructure equipment,as well as equipment control in commercial and civil buildings.

Main Features

High-performance processor:The module is equipped with an Intel Atom D2550 dual-core processor with a main frequency of up to 1.86GHz,providing powerful computing power.

Memory and storage:Supports up to 8GB of DDR3 SDRAM memory(standard configuration is 2GB)and is equipped with an MSATA hard disk to ensure stability and efficiency when processing complex tasks.

Rich interfaces:Provides 2 RS-232 serial ports,1 Gigabit Ethernet port,4 USB ports(supports up to 8 USB devices)and optional 8-bit GPIO interface to meet various connection needs.

HD display:Supports VGA+HDMI high-definition display,which is convenient for users to monitor and operate.

Redundant output design:The redundant output function can improve the reliability and stability of the system.When one power module fails,the other module can immediately take over the work to ensure the continuous operation of the system.

Wide temperature operating range:After field testing from-40℃to 80℃,it can adapt to various harsh working environments.

Strong configurability:It can be configured according to different application requirements and supports multiple operating systems,such as Windows XP/Win7 Embedded,Win7 and Linux.

Technical Specifications

The following are some main technical specifications of SNAT604 5761861-2B

Processor:Intel Atom D2550 dual-core processor,main frequency 1.86GHz

Memory:Support up to 8GB DDR3 SDRAM memory(standard 2GB)

Storage:MSATA hard disk

Interface:2 RS-232 serial ports,1 Gigabit Ethernet port,4 USB ports(up to 8 USB devices),optional 8-bit GPIO interface

Display:Support VGA+HDMI high-definition display

Power supply:The operating voltage range is 7V~30V DC

Dimensions:Approximately 210.46mm x 124.15mm x 63mm(width x height x depth,may vary depending on the specific product)

Weight:Approximately 1.5kg(may vary depending on the specific product)

Power consumption:The whole machine power consumption is 18W,energy-saving and efficient

Operating temperature:-40℃to 80℃

Application areas

SNAT604 The 5761861-2B module is widely used in the following fields

Industrial automation:used in scenarios such as automated manufacturing production lines and robotic systems to ensure precise and efficient control.

Process control:integrated into process control systems to help regulate and monitor key process parameters to ensure optimal performance and safety of the system.

Building automation:used for building environment control,such as automated management of air conditioning,lighting and other systems.

Railway transportation:provides stable and reliable power supply and control logic for rail transportation systems.

Data center:used for data acquisition,processing and communication in data centers.
