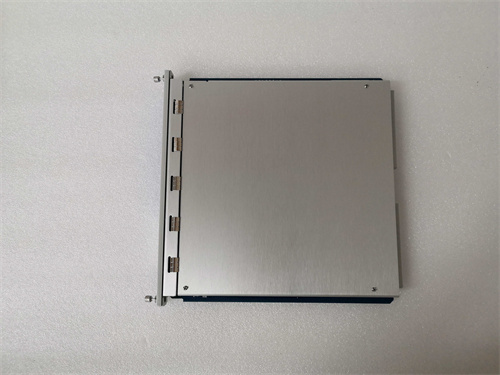

BENTLY 3500 92 136180-01 Product Details
BENTLY 3500/92 136180-01 is a communication gateway module produced by Bently Nevada.The following is a detailed introduction to the module.
Basic information
Part number:3500/92 136180-01
Manufacturer:Bently Nevada
Series:3500 series
Product type:communication gateway module
Power consumption:Typical value is 5.0 watts(may vary depending on module configuration and usage)
Dimensions:241 mm high,24.4 mm wide,242 mm deep
Weight:0.82 kg
Functional safety:SIL 2
Country of manufacture:United States
Technical features
Communication capabilities
Provides extensive serial(RS232/RS422/RS485)and Ethernet TCP/IP communication capabilities.
Monitoring valuesand status of all racks can be integrated with process control and other automation systems.
Supports Ethernet communication with data acquisition software and 3500 frame configuration software.
Supported protocols
Modicon Modbus protocol(via serial communication).
Modbus/TCP protocol(serial Modbus variant for TCP/IP Ethernet communication).
Proprietary Bently Nevada protocol(used to communicate with 3500 frame configuration and data acquisition software packages).
Network connection
Ethernet connection is RJ45 connection,suitable for 10BASE-T star configuration Ethernet.
Ethernet TCP/IP frame and Modbus/TCP protocol in accordance with IEEE802.3 standard.
Module status indication
Equipped with OK LED indicator to indicate that the 3500/92 module is operating normally.
Equipped with TX/RX LED indicator to indicate that the 3500/92 module is communicating with other modules in the 3500 frame.
Application scenarios
Vibration monitoring and mechanical health management
The module can be used in vibration monitoring and mechanical health management systems to provide power supply for sensors,monitoring devices and other key components in the system to ensure the normal operation of the vibration monitoring system.
Rotating Equipment Monitoring
It can be used to monitor and protect rotating equipment,such as turbines,generators,compressors,etc.,provide reliable power supply,and support vibration monitoring systems for real-time monitoring and fault diagnosis of equipment.
Energy Industry
It is widely used in the energy industry,including power plants,nuclear power plants,oil and gas facilities,etc.,to provide power support for vibration monitoring and mechanical health management systems.
It can be used in industrial automation systems to provide power for automation control equipment and monitoring systems to ensure stable operation and safe control of equipment.
Other Information
Availability:Usually available from stock.
Working Environment
The operating temperature range is-30 to+65 degrees Celsius.
The storage temperature range is-40 to+85 degrees Celsius.
The humidity requirement is 95%(non-condensing).
