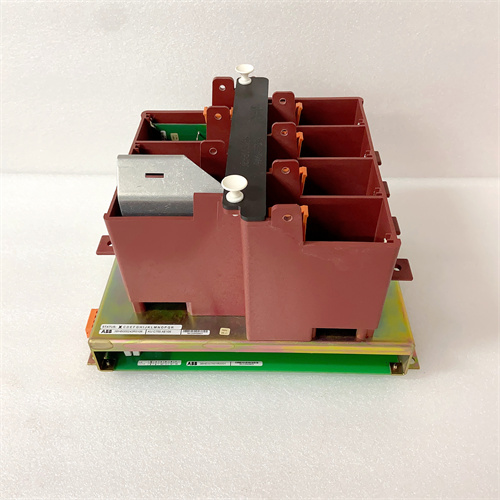

ABB KUC755AE106 3BHB005243R0106 Product Introduction

ABB KUC755AE106 3BHB005243R0106 is a drive module produced by ABB Group.The following is a detailed introduction to the module.

Basic parameters

Model:KUC755AE106

Part number:3BHB005243R0106

Manufacturer:ABB Group

Dimensions:243mm x 100mm x 50mm

Weight:1.5kg

Rated voltage:220V

Rated current:5A

Output frequency:50Hz

Voltage adjustment range:±0.5%

Frequency adjustment range:±0.2 Hz

Excitation system response time:<10 ms

Excitation system efficiency:>98%

Functional features

High performance:Provides precise and reliable control.

Multi-function:Supports multiple communication methods and control modes,such as open-loop control or closed-loop control,as well as a certain degree of programmability to adapt to different motion control needs.

High efficiency:The excitation system efficiency exceeds 98%,ensuring the effective use of energy.

Fast response:The excitation system response time is less than 10 milliseconds,meeting the application requirements for fast response.

Reliability:It has high reliability and durability to ensure the stable operation of equipment and systems.

Main function

The main function of this module is to control the excitation current of the synchronous generator to ensure the stable operation of the power system.By accurately controlling the excitation current,the performance of the power system can be optimized and the stability and reliability of the power system can be improved.

Application field

The ABB KUC755AE106 3BHB005243R0106 module has a wide range of applications in multiple industries and fields due to its high performance and versatility

Industrial automation:automated production lines,robot control and motor control of processing equipment.

Power engineering:electromechanical and frequency converters,electric transportation objects,elevators,winches and conveyor belt systems in power systems.

Energy and utilities:such as electricity,water,gas,etc.,used to control and manage the excitation process of various power generation equipment,motors and transmission systems.

Manufacturing:such as machinery,chemicals,pharmaceuticals,etc.,used to ensure the stable operation of production equipment.

Other Features

Power supply:Provide appropriate power input to meet the working requirements of the module,which may include different voltage and frequency ranges.

Output power:The driver module is usually designed to provide a certain range of output power to meet the needs of different applications.

Communication interface:An interface that supports communication with other automation equipment or systems for easy integration and control.The existence of this communication interface enables KUC755AE106 to easily connect with other devices or systems to achieve data sharing and exchange.

Protection function:The driver module may have various protection functions,such as overload protection,overheating protection,short circuit protection,etc.,to ensure the safe operation of equipment and systems.These protection functions can cut off the power supply in time when the equipment fails or abnormal conditions occur,preventing further damage to the equipment or causing greater safety accidents.

Diagnostic function:Provide diagnostic and monitoring functions to help detect and solve potential faults or problems in a timely manner.

Industrial standard compliance:Comply with industrial standards to ensure compatibility with equipment and systems from other manufacturers.
