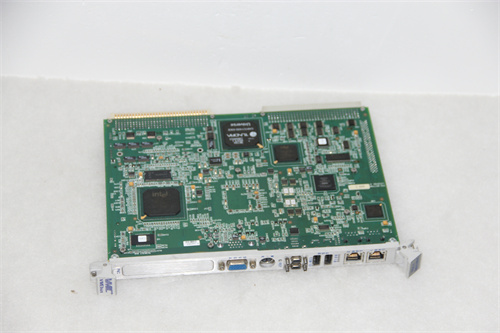

GE VMIVME-7750 Product Overview

GE VMIVME-7750 is a single-board computer based on VME bus launched by GE(General Electric).The following is a detailed introduction to the product.

Technical Specifications

Processor:Intel Pentium III,with a main frequency of up to 1.26 GHz,with 32-bit addressing and 64-bit data bus.Its superscalar architecture allows three instructions to be executed per clock cycle.Dynamic branch prediction unit,independent instruction and data caches,and MMX™technology also improve the performance of the processor.In addition,the Pentium III processor also provides 256 Kbyte(512 Kbyte at 1.26 GHz)of advanced transfer cache(on-chip full-speed L2 cache),using a dual independent bus architecture to provide high bandwidth and high performance.

Memory:Supports one 144-pin SDRAM SODIMM with a maximum memory capacity of 512 Mbyte.DRAM and VME dual port connection.

Graphics:Built-in 815E chipset AGP graphics adapter,supports high-resolution graphics and multimedia quality video.The adapter is supplemented by 4 Mbyte external synchronous DRAM cache and high-bandwidth 64-bit data interface,supporting screen resolutions up to 1600x1200x256 colors(single view mode).

Interface

Dual Ethernet controllers,supporting 10BaseT and 100BaseTX,connected through two RJ45 connectors.

PMC expansion interface.

Serial,parallel,PCI and other interfaces.

Bus:VME bus.

Power supply:+5V,+12V.

Others:Support CompactFlash storage,operating temperature range of-20℃+70℃,relative humidity of 5%95%(non-condensing).

Product Features

High performance:Adopts Intel Pentium III processor,providing powerful computing power.

Large capacity memory:Supports large capacity memory and can handle large amounts of data.

Rich interfaces:Integrates a variety of interfaces for easy connection with other devices.

Modular design:Conforms to VME standards,has good modular design,easy to expand and maintain.

Industrial-grade design:Suitable for industrial environments,with high reliability and stability.

Application fields

GE VMIVME-7750 is a high-performance,reliable industrial-grade VME single-board computer with a wide range of applications in the field of industrial control.It can be used as the core of data processing,perform complex computing tasks,and process data from sensors or other devices.At the same time,it can also be used as the core of the control system to achieve control and management of equipment.In addition,it can also be used to build data acquisition systems,image processing systems,and control systems in the fields of military electronics,power plants,industrial production lines,and transportation systems.

Product advantages

Advanced technology:Adopts the latest processor and chipset technology to provide powerful computing power and graphics processing capabilities.

High reliability:Conforms to industrial-grade design standards,has high reliability and stability,and is suitable for various harsh industrial environments.

Easy to expand:The modular design makes the system easy to expand and maintain,and it is convenient for users to customize and upgrade according to actual needs.

Wide range of application fields:Applicable to multiple fields,such as industrial control,data acquisition,image processing,military electronics,etc.,to meet the diverse needs of users.
