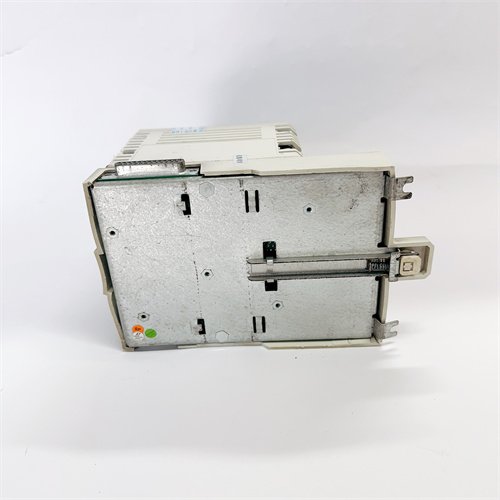

ABB PM864AK01 Product Details

ABB PM864AK01 is a high-performance controller produced by ABB,belonging to the AC800M series.The following is a detailed introduction to the controller.

Basic Overview

Model:PM864AK01

Series:AC800M

Features:Based on rail installation,with modular design,it integrates multiple functions such as real-time control,communication,data storage and processing.

Main Features

Real-time control capability:PM864AK01 has powerful real-time control capabilities,can handle real-time feedback and dynamic control requirements,and ensure that the system operates stably within the predetermined parameters.

Communication capability:Supports multiple communication protocols,such as Modbus,Profibus,Ethernet,etc.,and can exchange and communicate data with other devices,sensors,actuators and monitoring systems,which helps to simplify the network structure and improve the flexibility of the system.

Storage capacity:Equipped with 32M memory capacity for storing control programs,data and historical records,it can handle large amounts of data and ensure the stability and reliability of the system.

Programmability:Supports multiple programming languages​​and development tools,such as LD(ladder diagram),ST(structured text),FBD(function block diagram)under the IEC 61131-3 standard.Users can customize the module through programming to perform specific control logic and tasks.

Multitasking:Supports multitasking and can perform multiple control tasks at the same time,which improves the efficiency of the system.

Safety function:It may be equipped with a safety function to monitor and manage dangerous situations,and take necessary safety measures in an emergency.

Redundant design:In order to improve the reliability of the system,PM864AK01 is usually designed with redundancy functions to prevent single point failures and ensure continuous operation of the system.

Self-diagnosis:With self-diagnosis function,it can detect faults and generate alarms,which helps maintenance personnel quickly locate and solve problems,thereby improving the availability and reliability of the system.

Hardware interface

Bottom board interface:There are two RJ45 Ethernet ports(CN1,CN2)for connecting to the control network,and two RJ45 serial ports(COM3,COM4).One is an RS-232C port with modem control signals,the other port is isolated and used to connect the configuration tool.

Other interfaces:Depending on the configuration,this may include PROFIBUS DP,etc.
