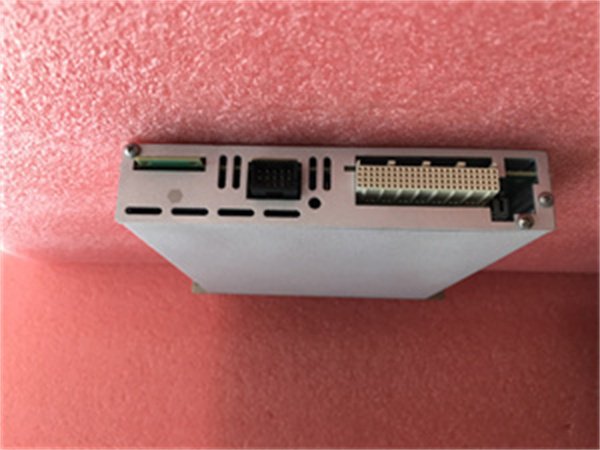

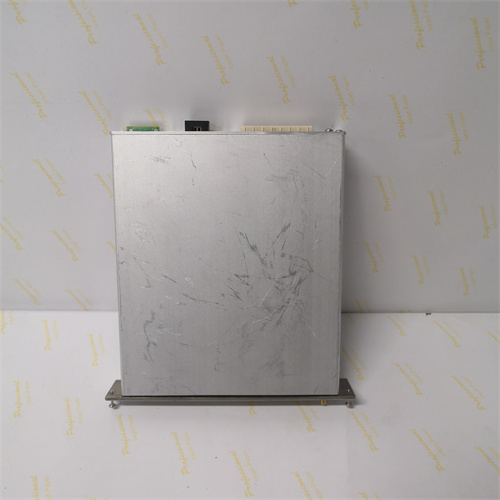

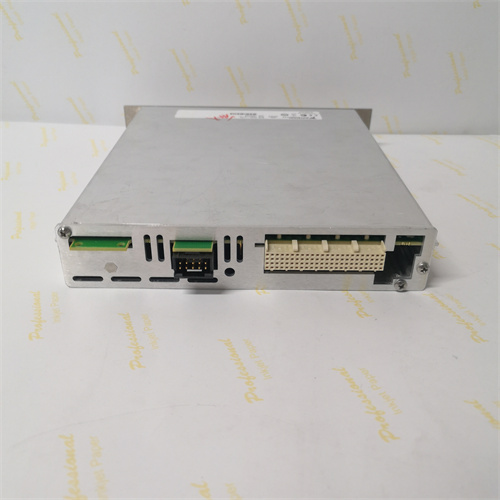

NI SCXI-1193 Product Overview

SCXI-1193 is designed to connect data acquisition equipment and sensors or actuators to achieve signal transmission and data acquisition.It has multiple configuration modes and can be flexibly applied to various industrial and laboratory environments.

Main Features

High density and high performance

SCXI-1193,as a 32-channel multiplexer,has high density characteristics and is suitable for processing a large number of signals.

It can withstand signal frequencies from DC to more than 500MHz,demonstrating its wide range of applications and powerful performance.

Multiple configuration modes

SCXI-1193 can be configured as an unterminated multiplexer,an externally terminated multiplexer,or a sparse matrix.

This flexibility enables it to adapt to different application requirements and provide optimized signal transmission performance.

High-density push-in MCX connectors

The module uses high-density push-in MCX connectors for discrete but manageable wiring.

This design makes the SCXI-1193 highly flexible and convenient in terms of wiring and connection.

Integration with high-frequency devices

The SCXI-1193 is designed to integrate with high-frequency devices,such as the PXI-5404 frequency generator and the PXI-5112 high-speed digitizer.

This makes it play an important role in high-frequency applications such as wireless communications,radar systems,and electronic warfare.

Flexible topology

The SCXI-1193 can be programmed to configure multiple topologies,such as quad 8×1 multiplexers,quad 4×1 terminated multiplexers,dual 16×1 multiplexers,etc.

This flexibility provides users with more choices and configuration options.

Physical and Electrical Characteristics

Physical Dimensions and Weight

The dimensions of the SCXI-1193 are 1.2×6.8×7.8 inches(or 3.0×17.3×19.8 cm)and the weight is 2 ounces(or 960 grams,which may vary depending on the configuration).

Operating and Storage Temperatures

The recommended operating temperature range is 0°C to 50°C.

The storage temperature range is-20°C to 70°C.

Humidity Range

Non-condensing humidity range is 5%to 85%.

Electrical Characteristics

RF Power Handling:10 Watts to 500MHz.

Maximum RF Power Consumption Limit:7W.

Scan Rate:Maximum 100 operations per second.

Relay Life:Up to 50 million mechanical cycles and 300,000 electrical cycles.

Application Scenarios

SCXI-1193 is suitable for a variety of application scenarios that require high-frequency signal multiplexing,such as wireless communication testing,radar system testing,electronic warfare simulation,etc.At the same time,due to its high performance and flexibility,it is also often used in industrial automation,laboratory testing and other fields.
