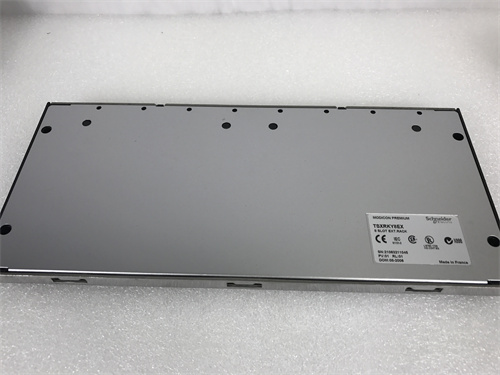

Schneider TSXRKY8EX Product Overview

Schneider TSXRKY8EX is an expandable rack produced by Schneider Electric.Here is a detailed introduction about it.

Basic attributes

Brand:Schneider

Model:TSXRKY8EX

Origin:Switzerland

Year:2020(or later,because the product is still sold at different time points)

Weight:about 1.75 kg to 2 kg(slightly different according to different sources)

Functional characteristics

Scalability:The TSXRKY8EX rack is expandable and is the basic unit of the Premium control system platform.It can be used to install all modules of the PLC workstation,including power supply,processor,discrete I/O,analog I/O and special modules.

Electrical function:It has a bus(BUS X)connection function,which can distribute data and service signals of the entire PLC workstation.To meet user requirements,there are various types of backplanes to form a PLC station with 1 to a maximum of 16 backplanes,and the maximum BUS X distribution distance is 100m.

Heat dissipation performance:TSXFAN**P fan modules are installed on Premium PLC racks to provide forced air flow,maintain a more balanced ambient temperature in the rack,and eliminate possible hot spots.Specifically,two fan modules are required for each 8-position backplane rack.

Application scenarios

TSXRKY8EX expandable racks are widely used in the field of industrial automation,especially in PLC systems that require high performance,reliability and scalability.
