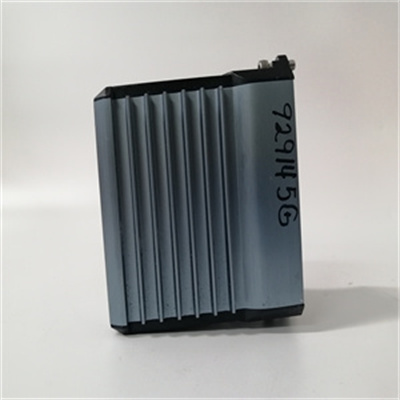

FOXBORO FBM232 P0926GW Product Introduction

The FBM232 P0926GW module is part of the FOXBORO automation control system and is commonly used to monitor and control industrial processes.It can establish a communication bridge between single-port field I/O devices and the EcoStruxure™Foxboro™DCS system to achieve efficient data transmission and device management.

Main Features

High-speed data transmission:FBM232 P0926GW supports Ethernet transmission rates of 10 Mbps or 100 Mbps,ensuring fast and stable data transmission.

Multi-device communication capability:The module can communicate with up to 64 field devices at the same time,making it a powerful assistant for field device management.

Rich I/O software drivers:Users can download the required I/O software drivers from a large protocol library to easily configure the device.These drivers can identify the specific protocols used by the device and support standard products as well as custom-developed drivers based on demand.

Efficient DCI block connection:FBM232 P0926GW supports up to 2000 DCI block connections,making data integration more efficient.

Harsh environment suitability:The module is designed for G3-level(harsh)environments to ensure stable operation in various environments.

Programmable logic:FBM232 P0926GW supports programmable logic,allowing users to define and configure logic functions,such as triggering output actions or implementing control strategies based on the status of input signals.

Real-time monitoring and feedback:Provides real-time monitoring functions so that operators can view the status of digital input channels at any time and take measures as needed.

Alarm function:Supports alarm functions,which can trigger alarms when specific conditions are met to notify operators or take automatic control measures.

Application areas

The FBM232 P0926GW Ethernet communication module is suitable for multiple industries,including manufacturing,power,chemical,mining and construction.It can be used to collect data from sensors and equipment for process monitoring and data analysis,and supports remote monitoring functions,allowing users to access and monitor connected devices and data from remote locations.

Configuration and connection

Port configuration:The port configurator of the FBM232 Ethernet communication module can easily set the communication parameters of each port,such as DHCP,IP address,etc.

Device configuration:The device configurator is used to configure specific devices and specific point considerations,such as scan rate,data address to be transmitted,and data volume.

Connection method:Data communication between FBM232 and field devices is carried out through RJ-45 connectors.FBM232 can be connected to field devices through hubs or Ethernet switches.
