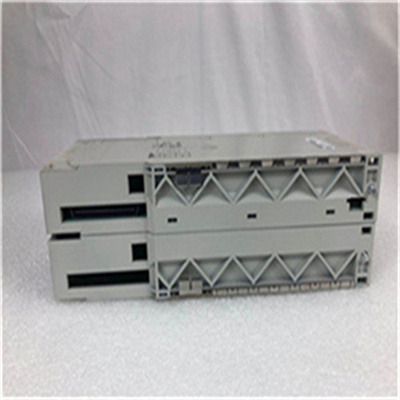

Schneider 140CPU65150 Product Introduction

140CPU65150 is a member of Schneider Electric’s Unity processor Modicon Quantum series and is one of the newer models in the processor module series.It combines the standard functions of PLC(Programmable Logic Controller)with the diagnostic capabilities of a network server,providing users with powerful control and diagnostic functions.

Main Features

High-performance processor:The 140CPU65150 has a clock frequency of 166 Mhz and is capable of handling complex control tasks.

Expandable file storage:The processor comes with an expandable 8MB file storage for storing programs and data.

Multiple connection types:The 140CPU65150 supports a variety of integrated connection types,including Ethernet TCP/IP,Modbus,Modbus Plus,and USB,which facilitates users to communicate and exchange data with other devices.

Rich I/O resources:The processor has 63 distributed I/O stations,1 rack and 3 distributed networks,8000 discrete inputs and discrete outputs in the distributed network,and 31744 discrete inputs and outputs in the remote system,meeting various control needs.

Diagnostic function:140CPU65150 has a web server function for diagnostic purposes only.Users can use the software to configure its services and monitor the operating status of the processor.

Multiple optional modules:6 optional modules are available for 140CPU65150,including Ethernet,Modbus,Modbus Plus,Profibus DP and Sy/Max,etc.,which enhances its flexibility and scalability.

Technical specifications

Input voltage:24V

Output voltage:24V

Output power:50W

Frequency range:10-50Hz

Rated forward average current:20A

Operating temperature:20℃(the specific operating temperature range may vary depending on product batches or application scenarios)

Number of pins:300

Data rate:10/100 Mbps

File storage:8MB expandable

Programming storage:7168 kB or expandable

Memory:768 kB

Connection:RJ-45 connection

Housing:Located in a double-width standard Quantum housing,requiring two consecutive slots in the Quantum rack

Application areas

140CPU65150 is suitable for various industrial automation and control fields,such as manufacturing,process control,energy management,etc.Its high performance,scalability and multiple connection types make it an ideal choice for various complex control systems.
