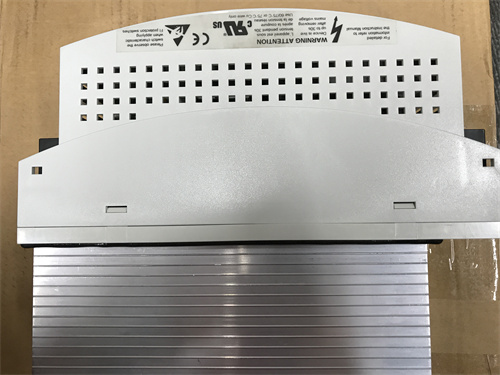

KUKA KSD1-32 Product Introduction

KUKA KSD1-32 is a servo drive manufactured by KUKA.Here is a detailed introduction to it.

Product Overview

Model:KSD1-32

Manufacturer:KUKA

Origin:Germany

Designed for:CNC machining,surface machining and load use

Technical Features

High-performance servo drive:KUKA KSD1-32 uses advanced control algorithms to achieve smooth and accurate motion control at high speeds,ensuring the accuracy and stability of the robot when performing various tasks.

Polling environment support:Supports 32-point polling environment(customization can reach 128 points),suitable for a variety of application scenarios.

Long-distance transmission capability:The transmission distance of the RS-485 port can reach 1200 meters(at 9600 BPS),while the transmission distance of the RS-232 port does not exceed 5 meters.

Static protection:Equipped with 15kV static protection to protect the interface from electric shock damage.

Interface type:RS-232 uses DB9 female interface,RS-485 uses DB9 male interface or 3-bit industrial terminal interface.

Compact design:It uses a compact KR C4 control cabinet and robot controller,equipped with Windows Embedded Standard 7 operating system,and uses KRL(KUKA Robot Language)as the programming language,which is easy to integrate into various robot applications and convenient for users to program and debug.

Hardware specifications

Power input:Accepts 400VAC,50/60Hz power input.

Power consumption:5.5 kVA.

Protection level:IP54,ensuring stable operation in general industrial environments.

Application areas

KUKA KSD1-32 servo drives are widely used in automation equipment such as industrial robots and CNC machining centers,especially in robot applications that require precise control and stable operation.
