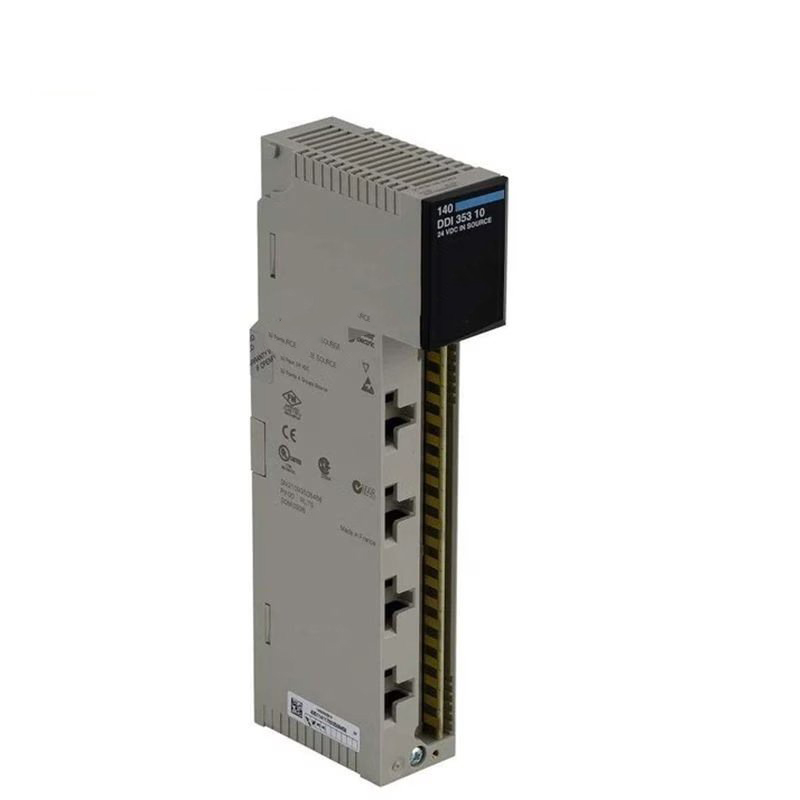

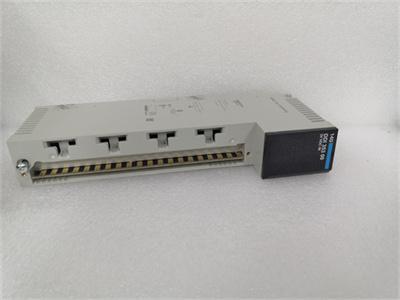

SCHNEIDER 140DDI35310 Product Details

SCHNEIDER 140DDI35310 is a discrete input module in Schneider Electric’s Modicon Quantum series,designed specifically for industrial automation control systems.Its core functions focus on high-precision signal acquisition and multi protocol communication.The following is a comprehensive analysis of its technical characteristics.

Product positioning

Type:Industrial Automation Discrete Input Module

Series:Modicon Quantum

Core objective

As the core input unit of PLC system,it supports switch signal acquisition and logic control in complex industrial scenarios.

Adapt automation systems of different scales(such as food processing,metallurgy,water treatment,etc.)through modular design.

Core functions

Input characteristics

Number of channels:32 points(4 groups,8 points per group)

Input voltage:24 V DC(supports sink logic,requires connection to positive potential common terminal)

Isolation method:Group isolation(8 independent isolation points per group)

Response time:≤1 ms(ON/OFF state switching)

Communication and Expansion

Built in interface

2-channel Modbus serial communication

Ethernet interface(supporting real-time data transmission)

Compatible protocols:Modbus,Profinet,EtherCAT

Online configuration:Supports Unity Pro software to modify parameters online without the need for downtime maintenance.

Security and protection

Overcurrent protection:Built in 2.4 kΩcurrent limiting resistor,maximum input current 14 mA

Fault detection:No fault detection function,supports abnormal status indication(LED status display)

Certification standards:UL 508,CSA 22.2-142,ATEX Zone 2/22

Technical parameters

Parameter specifications

Working voltage 24 V DC(input)/100-240 V AC(power supply)

Bus current 330 mA(maximum)

Power consumption 1.7 W+0.36 W/channel(in use)

Working temperature:0°C to+55°C

Protection level IP20(non sealed environment)

Dimensions 140 mm×100 mm×80 mm

Weight 0.8 kg

Typical application scenarios

Industrial production line control

Monitor the switch status of equipment such as robotic arms and conveyor belts(such as proximity sensors and limit switch signals).

energy management

Collecting relay contact status in the power system to achieve fault isolation and protection logic.

Environmental monitoring

Detect the switch signals of fire protection systems and security equipment(such as smoke detectors and access control status).

infrastructure

Monitor the start stop status of valves and pump units in water treatment plants to ensure process stability.

Technical advantages

High density design:32 input channels integrated into a compact module,saving cabinet space.

Flexible Expansion:Supports multi module cascading and adapts to large-scale control systems with 256 or more points.

Industrial grade reliability

Grouping isolation design reduces the risk of signal interference.

The mean time between failures(MTBF)is greater than 50000 hours.

compatibility

Compatible with Modicon Premium/Quantum series CPUs(such as 140CPU65160,140CPU67160).

Support Unity Pro software programming to simplify system integration.
