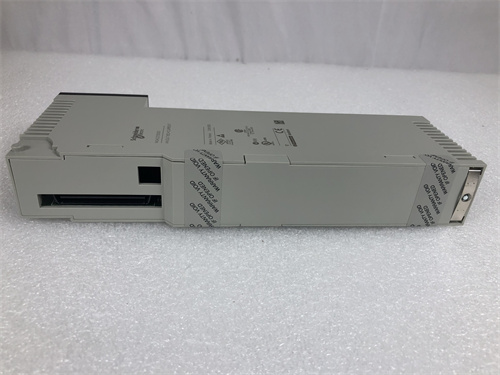

SCHNEIDER 140ACO1300 Product Details

SCHNEIDER 140ACO13000 is an analog output module manufactured by Schneider Electric.The following is a detailed introduction to the module.

Product Overview

Model:140ACO13000

Brand:Schneider

Series:Modicon Quantum ExoStruxure Control Series

Application:Control of discrete and analog I/O modules

Technical Features

Output Channels:8 analog output channels for controlling and monitoring current.

Output Range

420mA,04095 counts

420mA,016000 counts

025mA,025000 counts

020mA,020000 counts

Loop Voltage and Voltage Drop:The loop voltage is 630V DC,and the voltage drop is also 630V(25mA).

Update Time:5ms

Setup Time:1.6ms to 5%of the final value,3.2ms to±0.1%of the final value.

Bus current requirement:550mA

Power consumption:5.0W maximum

External power supply requirement:6~30V

Full scale(accuracy within 25 degrees°C with linearity)

Linearity:0 degrees 0 absolute:accuracy±10A2.0(±24A%(240mA,016000 counts);±4µA(025mA,025000 counts);±4µ0A(020mA,0200mA,04095 counts)

Temperature offset accuracy:0.007%full scale/°C(maximum),0.004%full scale/°C(typical)

Channel isolation:No isolation between channels

Indicator:Has 8 green LEDs

Application and Configuration

Application scope:This module can be used in fields such as material handling,packaging and textile machinery,providing high-performance analog output functions.

Configuration method:It can be configured through UnityPro software,and supports online configuration modification.During the configuration process,the module parameters and channel configuration need to be set to meet actual needs.

Product certification and warranty

Product certification:This module has passed UL 508,CSA 22.2-142,e,FM Class 1 Zone 2,ATEX Zone 2/22 and other certifications ensure the safety and reliability of the product.

Warranty period:Two-year warranty service is provided.

Other features

Powerful processing capability:In the existing PLC system,the processing speed is relatively fast.

Flexible architecture:You can freely configure a variety of architectures such as local I/O,remote I/O,distributed I/O and fieldbus,and you can also perform mixed configurations.

Perfect system reliability design:Power supply,communication,etc.can be designed with redundancy,and the system can be hot-backed up as needed,and automatically switched in case of failure.

Easy to use:All templates support hot-swap function,and modules can be replaced online without downtime.At the same time,high-performance isolation technology can eliminate electrical noise interference,and high-current output can drive larger loads without external relays.
