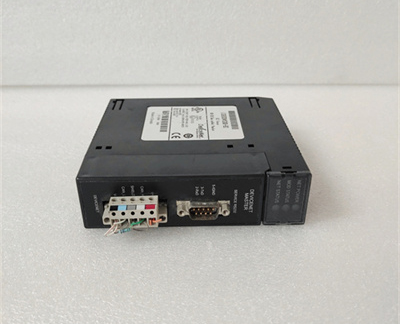

GE IC693DNM200-BD Product Introduction

The GE IC693DNM200-BD is a DeviceNet Master Module that is part of the 90-30 Series Programmable Logic Controller(PLC)platform.Produced by General Electric(now part of Emerson Automation),the module features a compact design,high performance,and ease of use.

Main features

DeviceNet master station functions

Supports all data transmission rates of DeviceNet protocol,such as 125K,250K and 500K baud.

Each slave device can transmit up to 255 bytes of input data and 255 bytes of output data from the master.

A maximum of 3972 bytes of input data and 3972 bytes of output data can be transferred to the master module.

Communication capabilities

Equipped with a DeviceNet terminal and an RS232 9-pin D-type female port(used as module service port).

Explicit messaging,Unconnected Message Manager(UCMM),and one proxy connection per slave unit are supported.

Modularity and scalability

Can be used with other GE 90-30 Series PLC modules to achieve larger,more complex control systems.

Can be combined with other input/output modules,CPU modules,communication modules,etc.to meet the needs of specific applications.

Reliability and stability

Provide stable performance and reliability to ensure the normal operation of the system.

Equipped with upgradable firmware,module updates and bug fixes can be downloaded via the RS232 service port.

Easy to configure and maintain

Provides configuration tools and diagnostic functions for setting network parameters,configuring slave devices,and monitoring network status.

Simplifies system configuration and troubleshooting process.

Technical specifications

Brand:GE

Name:Device Network Main Module

Series:90-30 series

Specifications:12×32×32(unit may be mm,please refer to official documents for details)

Rated voltage:120V AC(or 12 to 24V DC)

Output:32(may refer to the number of channels or other performance indicators)

Speed:150MHz

Frequency:47-63Hz(or 50/60Hz,depending on the application environment)

Power consumption:2.6W

Material code:may vary by supplier or batch(e.g.2548256886 or 96857856300)

Application fields

The GE IC693DNM200-BD module is typically used to connect and control variable frequency drive(VFD)modules and other devices such as sensors and actuators.It allows the PLC system to exchange data and transmit control commands with other devices through the DeviceNet network,and is widely used in automation control systems in various industries.
