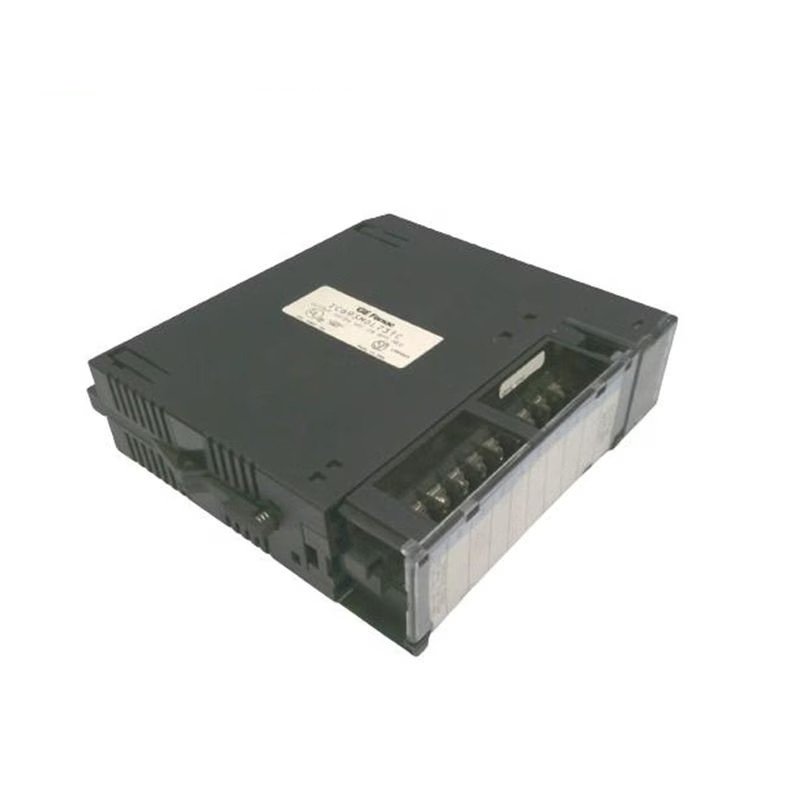

The GE Fanuc HE693DNT250 is a DeviceNet master module designed for integration with the GE Fanuc Series 90-30 PLC. It enables the PLC to communicate with and control devices on a DeviceNet network, making it ideal for applications that require flexible communication between various industrial devices, such as sensors, actuators, and I/O modules. With its high connectivity and compatibility, this module facilitates efficient control and monitoring across a network of connected devices.

Technical Specifications

• Functionality:
  • DeviceNet master module for Series 90-30 PLC
  • Controls up to 63 DeviceNet slave devices
• Operating Voltage:
  • 11-25 VDC (nominal 24 VDC)
• Communication Protocol:
  • DeviceNet, supporting RS-485 communication
• Network Topology:
  • Supports a multi-drop network configuration
  • Maximum communication distance: 1,500 feet (457 meters)
• Baud Rate:
  • Supports a range of baud rates, including 125 kbps, 250 kbps, and 500 kbps
• Power Consumption:
  • 1.5 W (typical)
• Environmental Conditions:
  • Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Humidity: 5% to 95% non-condensing
• Physical Dimensions:
  • Height: 90 mm (3.54 in)
  • Width: 70 mm (2.76 in)
  • Depth: 125 mm (4.92 in)
• Weight:
  • 0.4 kg
