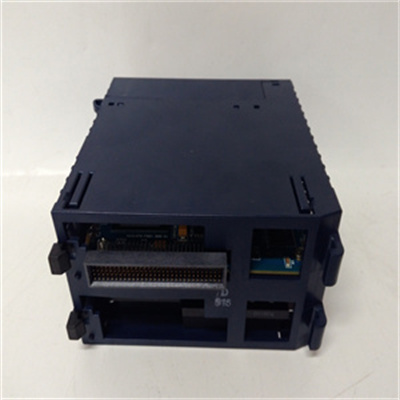

GE IC695CRU320 Product Details

GE IC695CRU320 is a high-performance redundant processor in the PACSystems RX3i product series of General Electric(GE).It is designed for industrial automation applications and has the following key features and functions.

Core functions and performance

Redundancy and hot standby

Supports dual-rack redundant configuration,real-time data synchronization between the main and auxiliary racks,and the shortest switching time is only 3.133 milliseconds(completed within 1 logic scan),ensuring continuous operation of the system.

The processor has a built-in error detection mechanism,which automatically switches to the backup rack when a single rack fails,minimizing downtime.

Powerful processing power

Adopts a 1GHz Celeron M processor,equipped with 64MB user memory,and can store up to 512 program blocks(each block is up to 128KB)to meet complex control logic requirements.

Supports 2MB data synchronous transmission,and can connect up to 2 IC695RMX128/228 synchronous links to achieve efficient data interaction.

Reliability and Durability

The rated flash memory endurance is up to 100,000 write/erase cycles,suitable for high-intensity industrial environments.

The operating temperature range is 0°C to 60°C.Avoid high humidity,dust,debris or water environments.It is recommended to install in a protective housing.

Communication and expansion capabilities

Multi-protocol communication

Built-in 2 integrated serial ports,supporting RS-232 and RS-485 communication standards respectively,compatible with a variety of industrial equipment.

Support PCI 2.2 or higher,fast data transmission through the backplane,and can be expanded to 90-30 series I/O modules.

Flexible scalability

Supports local and remote expansion racks,compatible with 90-30 series I/O modules through serial backplane design,convenient system upgrade.

The programming environment supports Ladder Diagram,C language and Function Block Diagram to meet diverse development needs.

Application and Advantages

Typical Application Scenarios

Applicable to key areas such as manufacturing(production line control),oil and gas(oil and gas extraction and processing),water treatment(water/wastewater treatment plants)and electricity(power generation and transmission and distribution systems).

Redundant design ensures high availability of the system under extreme conditions and reduces the risk of downtime due to hardware failure.

User Value

High reliability:industrial-grade design,adaptable to harsh environments,and reduces maintenance costs.

Flexible configuration:modular design supports on-demand expansion and reduces the difficulty of system upgrades.

Efficient development:based on the Proficy Machine Edition development environment,it provides an intuitive graphical programming interface to shorten the development cycle.

Technical Specifications Summary

Processor:1GHz Celeron M

Memory:64MB user memory+64MB battery backup RAM

Serial Ports:2(RS-232/RS-485)

Sync Link:Up to 2 IC695RMX128/228

Switch Time:3.133 ms minimum

Operating Temperature:0°C to 60°C

Programming Languages:Ladder,C,Function Block Diagram
