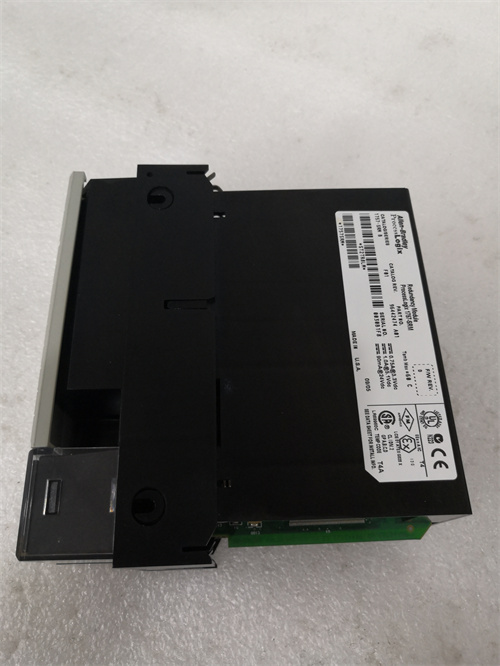

Allen‑Bradley 1757-SRM Product Introduction

Allen‑Bradley 1757-SRM is a system redundancy module of Allen-Bradley(AB,Allen-Bradley),mainly used in the field of industrial automation,especially in ProcessLogix and ControlLogix systems to achieve controller redundancy.The following is a detailed introduction to Allen‑Bradley 1757-SRM.

Product Overview

Brand:Allen-Bradley(AB)

Model:1757-SRM

Category:System Redundancy Module

Technical Specifications and Functions

Connector:SC type

Installation:Applicable to ControlLogix chassis

Cabinet type rating:None(open)

Cable type:62.5/125 micron multimode fiber optic cable

Power dissipation:Maximum 11.28 watts

Supported controller:Logix 5560

Redundancy implementation:Controller redundancy is achieved by pairing with 1756-SRM(or other compatible redundancy modules)in another ControlLogix chassis.This helps to automatically switch to the backup controller when the main controller fails to ensure the continuous operation of the system.

Module status display:It has a module status display function that can indicate a text code representing the module’s operating status.This includes the PRI LED(indicating which chassis is running as the master chassis),the COM LED(indicating communication and synchronization status),and the health status LED(indicating whether the module is performing a self-test,encountering a serious fault,or operating normally).

Application scenarios

The Allen‑Bradley 1757-SRM module is widely used in control and monitoring systems in industrial fields such as power,oil,and gas.Its redundancy function ensures the continuous operation of these critical systems and improves the reliability and stability of the system.In addition,it is also used in various automation systems such as control and data acquisition systems,production planning and scheduling systems,etc.

Product features

High performance:It has powerful data processing and communication capabilities and can meet the needs of complex industrial automation systems.

High reliability:It adopts high-quality materials and manufacturing processes,has high reliability and stability,and ensures the continuous operation of the system.

Easy to integrate:It provides standard communication interfaces and protocols,which are easy to integrate with other industrial automation equipment and systems.

Modular design:It is easy to install,maintain and upgrade,reducing the overall cost of the system.
