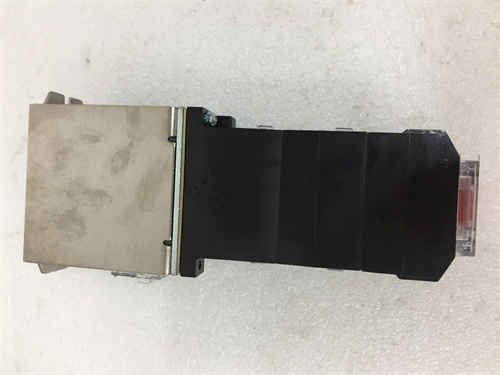

Allen‑Bradley 700SDCPK1020Z24 Product Overview

700SDCPK1020Z24 is a variable frequency drive(VFD)of the Allen-Bradley PowerFlex 700 series.The following is a detailed introduction to it.

Product Overview

Brand:Allen-Bradley

Model:700SDCPK1020Z24

Category:PowerFlex 700 series variable frequency drive(VFD)

Product Features

Versatility:Suitable for a variety of applications,including pumps,fans,conveyors and machines,etc.,and can meet the control needs of different equipment.

Rated power:10 horsepower(7.5 kilowatts),suitable for the control of small and medium power motors.

Input voltage:480VAC three-phase,in line with industrial standard voltage requirements.

Output voltage:0 to 480VAC three-phase,the output voltage can be adjusted according to actual needs.

Output frequency:0 to 60Hz,which can achieve a wide range of speed regulation.

Multiple control modes:Including speed,torque and flow control modes,you can choose the appropriate control mode according to the specific application.

Monitoring and protection functions:It has multiple protection functions such as overvoltage,overcurrent,undervoltage,undercurrent,overload,overheating,etc.to ensure safe and reliable operation of the equipment.

Product specifications

Size:305mm x 203mm x 180mm(12 inches x 8 inches x 7 inches),compact design for easy installation and maintenance.

Weight:17.2kg(38 pounds),moderate weight,easy to carry and install.

Installation method:Support wall-mounted or rack-mounted,which can be flexibly selected according to the actual installation environment.

Product application

Pump:Control the speed and flow of the pump to meet different process requirements.

Fan:Adjust the speed of the fan to control the air flow and temperature.

Conveyor:Control the speed of the conveyor to achieve efficient transportation of materials.

Machine:Control the speed and torque of the machine to improve production efficiency and product quality.
