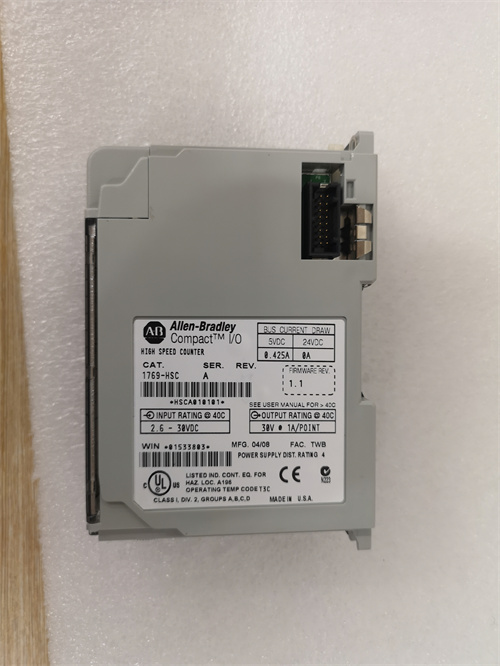

Allen‑Bradley 1769-HSC Product Introduction

The Allen‑Bradley 1769-HSC module is a high-performance high-speed counter module with its own microprocessor and I/O,which can respond quickly to high-speed input signals.It is suitable for the field of industrial automation and can accurately count and measure the frequency and pulse width of input signals,providing reliable data support for various control tasks.

Functional Features

High-speed counting capability:The Allen‑Bradley 1769-HSC module has high-speed counting capability and can accurately count and measure high-speed input signals,such as pulse signals generated by encoders,photoelectric switches,etc.

Multi-channel input:The module provides multiple input channels and can connect multiple sensors or signal sources to achieve multi-channel simultaneous counting and measurement.

Programmable output:According to the user-defined range,the count and frequency values​​can be used to activate up to 4 embedded outputs and 12 virtual outputs to meet different control needs.

Signal processing capability:The module can filter,decode and count the input signal,generate frequency and pulse width(pulse interval)data,and provide rich signal information.

High precision and stability:The module adopts high-precision counters and stable working circuits to ensure the accuracy and stability of counting.

Technical parameters

Working voltage:usually 220V(other voltage levels are also available).

Input signal type:supports multiple types of input signals,such as pulse signals,sine wave signals,etc.

Counting range:depends on the specific model and configuration,usually with a larger counting range.

Output form:relay,transistor or relay transistor mixed output.

Communication interface:supports the communication protocol of the CompactLogix series PLC,which is convenient for communication and data exchange with other PLC modules and devices.

Application field

The Allen‑Bradley 1769-HSC module is widely used in CNC machinery,metallurgy,oil and gas,paper printing,textile printing and dyeing,machinery,electronic manufacturing,automobile manufacturing,tobacco,plastic machinery and other fields.It can be used in various occasions where accurate counting and measurement of input signals are required,such as encoder signal processing,counting control on production lines,etc.
