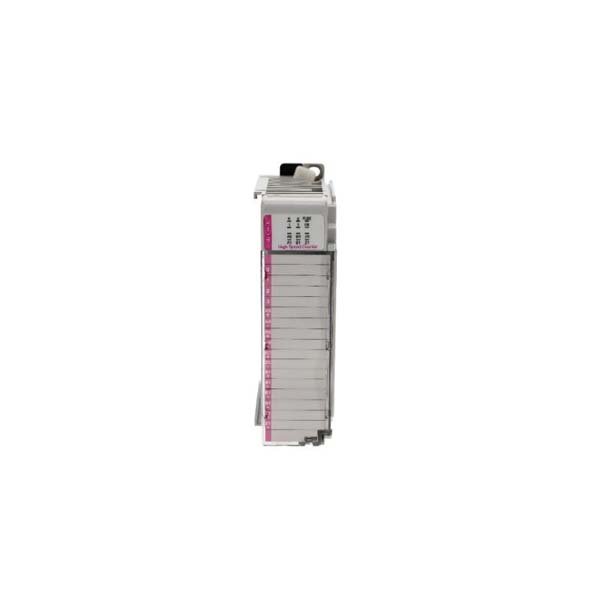

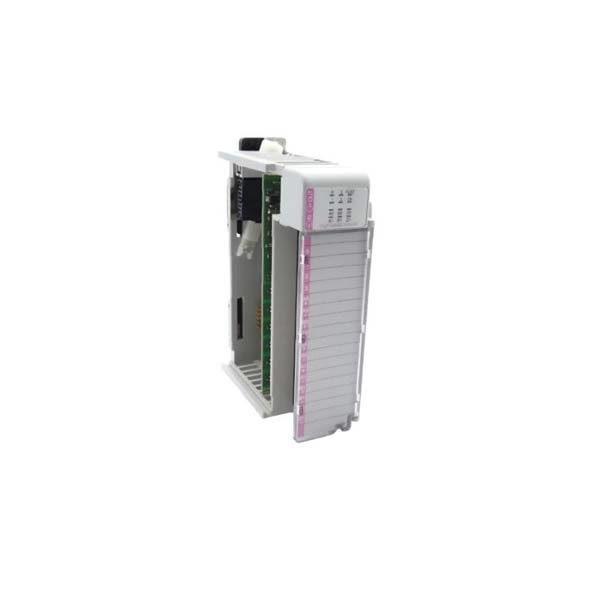

Allen-Bradley 1769-HSC High-Speed Counter Module
Manufacturer:Allen Bradley
Product Number:1769-HSC
Product Type:High-Speed Counter Module
Origin:USA
Dimensions:120 mm × 35 mm × 90 mm
Weight:0.32 kg
Views:169
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Allen-Bradley 1769-HSC is a High-Speed Counter (HSC) module designed for CompactLogix systems. It provides precise counting, frequency measurement, and pulse generation for applications that require high-speed digital input processing. With support for up to 4 high-speed channels, the module is ideal for motion control, rotary encoders, stepper motors, and industrial automation systems where accurate real-time counting and synchronization are essential. The 1769-HSC ensures deterministic performance and seamless integration with CompactLogix controllers.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Module Type | High-Speed Counter Module | Processes fast digital signals for counting and frequency applications |
| Number of Channels | 4 | Each channel can be configured independently |
| Maximum Input Frequency | 100 kHz | High-speed counting capability per channel |
| Input Type | Differential or single-ended | Compatible with TTL/HTL encoder signals |
| Pulse Output | Yes, 1 × 24 V DC pulse output | Can generate control pulses for motion devices |
| Resolution | 32-bit counters | Allows large counting ranges without overflow |
| Supported Functions | Quadrature counting, Up/Down counting, Pulse generation | Flexibility for various motion and counting applications |
| Communication Ports | CompactLogix backplane | Direct communication with controller and I/O modules |
| Power Supply | 5 V DC from CompactLogix backplane | No external power required |
| Current Draw | 150 mA typical | Low power consumption from backplane |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) | Industrial-rated operating range |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) | Non-operational storage limit |
| Relative Humidity | 5%–95% non-condensing | Suitable for industrial environments |
| Shock Resistance | 30 g operational | IEC 60068-2-27 compliant |
| Vibration Resistance | 5–2000 Hz @ 1 g | Industrial-grade tolerance |
| Dimensions (H × W × D) | 120 mm × 35 mm × 90 mm (4.7″ × 1.4″ × 3.5″) | Fits standard 1769 chassis |
| Weight | 0.32 kg (0.70 lbs) | Lightweight and compact design |
Applications
The 1769-HSC module is commonly deployed in automation systems requiring precise high-speed digital processing:
-
Rotary and Linear Motion Systems – Tracks encoder pulses for motors and actuators.
-
Conveyor and Material Handling – Counts items, monitors speed, and ensures synchronization.
-
Packaging Machines – Provides accurate product counting for batching and labeling.
-
CNC and Robotics – Integrates with motion controllers for position and speed feedback.
-
Industrial Process Control – Measures high-frequency signals from sensors for control loops.
-
OEM Equipment – Embeds into custom machinery for high-speed counting and pulse generation.
Advantages
-
High-Speed Counting: Up to 100 kHz input frequency for precise measurement.
-
Multiple Functions: Supports quadrature, up/down counting, and pulse output in one module.
-
Compact Design: Small footprint saves panel space while supporting four independent channels.
-
Seamless CompactLogix Integration: Direct communication with controller and I/O modules.
-
Deterministic Performance: Reliable real-time counting for motion and automation systems.
-
Flexible Input Compatibility: Supports TTL, HTL, and differential signals.
-
Low Power Consumption: Efficient design reduces overall system load.
-
Robust Industrial Tolerance: Shock, vibration, and environmental ratings ensure reliable operation.
FAQs
-
Q: What is the maximum input frequency per channel?
A: Each channel can handle up to 100 kHz.
-
Q: Can the module handle quadrature encoder inputs?
A: Yes, all four channels support quadrature counting.
-
Q: Does it provide pulse output for motion devices?
A: Yes, the module includes one 24 V DC pulse output.
-
Q: Can channels be configured independently?
A: Yes, each channel can be configured for up/down counting, quadrature, or pulse input.
-
Q: Is external power required?
A: No, the module is powered entirely from the CompactLogix backplane.
-
Q: Can multiple 1769-HSC modules be installed in the same chassis?
A: Yes, provided there are available slots in the 1769 chassis.
-
Q: What is the maximum counting resolution?
A: 32-bit counters per channel.
-
Q: What types of encoder signals are supported?
A: TTL, HTL, and differential signals.
-
Q: Can the module operate in high-vibration environments?
A: Yes, it meets industrial standards for shock and vibration.
-
Q: Does the module provide diagnostic feedback?
A: Yes, diagnostic information is accessible via Studio 5000 and LED indicators.
