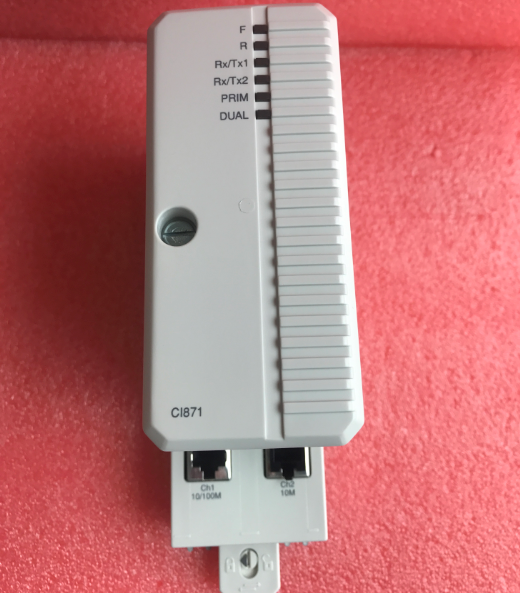

ABB CI871K01 3BSE056797R1 Product Introduction

ABB CI871K01 3BSE056797R1 is a Profinet IO interface module launched by ABB,which is part of ABB’s CI800 series motor control center(MCC).This module is mainly used for motor control and protection,and plays a key role in the communication interface of industrial automation systems.It supports efficient and stable data transmission,and realizes information interaction and control instruction transmission between devices.

Main features

Communication protocol:Supports PROFINET IO communication protocol,which is an Ethernet communication protocol widely used in the field of industrial automation,and can achieve seamless integration with other Profinet compatible devices.

Communication speed:Supports CH1 communication speed,which can be selected between 10 Mbps and 100 Mbps.These speeds are defined in the IEEE 802.3u 10/100 Base-Tx standard,ensuring the flexibility and efficiency of data transmission.

Power supply and power consumption:Receive 24VDC power through the CEX bus,with a maximum current consumption of 250 mA.Under typical working conditions,the power consumption is 3.8 W and the maximum power consumption is 6 W.

Dimensions and weight:The dimensions of the module are 59mm wide,185mm high,and 127.5mm deep(or 2.9 inches wide,7.3 inches high,and 5.0 inches deep),and the weight is 500 grams(700 grams with packaging).

Protection level:IP20(or IP30,depending on different materials),with certain dust and water resistance.

High reliability:The design takes stability and reliability into consideration and is suitable for various industrial automation application scenarios.

Easy to use and scalability:The module’s configuration interface can be accessed through specific configuration tools or software,which is convenient for users to configure and manage.At the same time,the module is often used in conjunction with other 800xA series modules of ABB,and has strong scalability and customizability.

Functional application

Real-time data transmission:The CI871K01 module is able to transmit microsecond data,realize real-time monitoring,and ensure high reliability and stability of the system.

Precise control:The module is able to control and monitor a variety of devices and parameters,such as sensors,valves,motors,etc.,to achieve precise control of industrial processes.

Troubleshooting:The ability to automatically detect and report faults helps reduce maintenance and downtime and improve productivity.Built-in diagnostic functions allow operators to monitor system status and troubleshoot problems in a timely manner.

High-speed communication:Ethernet technology is used to achieve high-speed communication to meet the needs of real-time data transmission and low-latency control and monitoring.

Security and stability:Ensure data security and system stability,and provide a solid communication foundation for industrial automation.

Application areas

ABB CI871K01 3BSE056797R1 module is widely used in industrial automation and control systems,including but not limited to the following fields

Industrial automation and process control:used in chemical,petrochemical,manufacturing and other industries to monitor and control production processes in real time to optimize production efficiency and quality.

Power industry:used in power plants,substations and other facilities to monitor and control power production and distribution in real time.

Water treatment and environmental control:used to monitor and manage water treatment processes,wastewater treatment,etc.

Pharmaceuticals and Life Sciences:In the pharmaceutical and life sciences sectors,it is used to monitor and control production processes to ensure product quality and consistency.

Manufacturing:It is used to automate production lines and industrial processes to increase productivity and reduce production costs.
