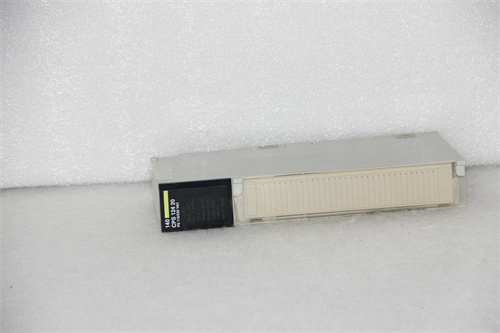

MODICON 140CPS11420 Product Details

MODICON 140CPS11420 is a power module produced by Schneider Electric,belonging to the Modicon Quantum series.The following is a detailed introduction to the module.

Product Overview

Model:140CPS11420

Brand:Schneider Electric

Series:Modicon Quantum

Functions and Applications

Main Use:This module is mainly used to provide power for controllers and other devices in industrial automation systems.

Application Areas:Widely used in industrial control systems,automation equipment,sensors and actuators,especially in glass production and processing,chemical and salt chemical plants,metallurgical ironmaking blast furnace systems,water conservancy and hydropower plant monitoring systems,automobile manufacturing and other industries.

Technical Specifications

Power Type:The module usually provides DC or AC power to meet the needs of different types of equipment.

Output Voltage:Its output to the bus is 5.1 volts DC.

Input voltage:The module can accept a range of power supply voltages,such as 115V or 230V AC,with a rated voltage of 220V AC on terminals 1 and 2.

Input frequency:The input frequency of the module can be between 47 and 63 Hz.

Other parameters:There are also 6A/30V DC,5A normally closed relay contacts on terminals 1 and 2 of the power terminal block.The relay will be de-energized when the input power drops below 70V AC,when the input voltage is set to 115V AC,or when the input is 140V AC.The voltage total harmonic distortion is less than 10%of the fundamental RMS value.

Product Features

High performance:The Modicon Quantum automation control platform has a full range of complete processors suitable for complex process control and infrastructure critical systems.

Integrated excellent communication functions:Supports multiple communication protocols,such as Ethernet TCP/IP,Modbus Plus,Modbus,etc.,to facilitate data exchange between devices.

Easy to install:Modules are generally designed to be easy to install and replace,such as DIN rail mounting or rack mounting.

High Reliability:Schneider Electric generally produces high-quality and reliable industrial automation equipment to meet the requirements of industrial environments.
