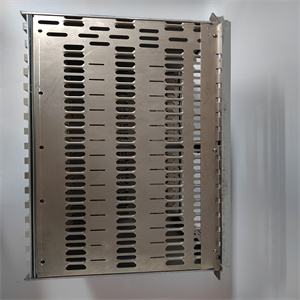

Bently Nevada 3500/05 System Rack Product Overview

The Bently Nevada 3500/05 System Rack is a crucial component of the Bently Nevada 3500 System, which is widely used for machinery protection and condition monitoring applications. This rack serves as a housing and power distribution unit for various 3500 modules, enabling them to communicate and function effectively.

General Information

• Manufacturer Bently Nevada
• Part Number 3500/05 System Rack
• Product Type System Rack
• Series 3500 System

Key Features

• Modular Design Accommodates a variety of 3500 modules, including monitor modules, power supplies, and communication gateways, to support diverse monitoring and protection requirements.
• Power Distribution Provides regulated 24 VDC power to all installed modules, ensuring reliable operation and data acquisition.
• Backplane Communication Facilitates data exchange between modules, enabling centralized monitoring and analysis of machinery condition.
• Rack-Mount or Panel-Mount Options Offers flexible mounting options to suit various installation scenarios and space constraints.

Applications

The Bently Nevada 3500/05 System Rack finds extensive applications in various industries for machinery protection and condition monitoring, including

• Oil and gas
• Power generation
• Petrochemical
• Manufacturing
• Pulp and paper

Specifications

• Rack Size 19-inch EIA rack with 14 available module slots
• Power Supply Capacity Two 24 VDC power supplies (redundant configuration optional)
• Input Voltage 100-240 VAC, 50/60 Hz
• Power Consumption 150 W (typical)
• Operating Temperature -20°C to 65°C (-4°F to 149°F)
• Storage Temperature -40°C to 80°C (-40°F to 176°F)
• Humidity 95% non-condensing
• Dimensions 241.3 mm x 482.6 mm x 349.2 mm (9.5 in. x 19 in. x 13.75 in.)
• Weight 22 kg (48.5 lbs.)
