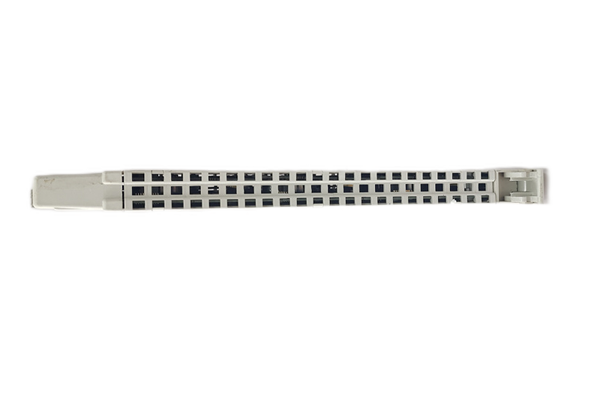

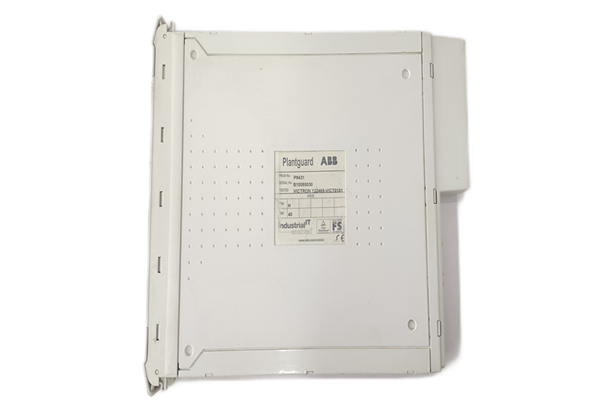

ICS Triplex P8431 Module Overview

The ICS Triplex P8431 is a high-reliability processor module designed for mission-critical and safety-related industrial automation systems. As part of the ICS Triplex family, this module is engineered to deliver robust performance in environments where system availability and fault tolerance are paramount.

Technical Specifications

• Processor Type: High-speed 32-bit processor, enabling real-time execution of complex control algorithms and multitasking.
• Memory Capacity: Equipped with ample memory for storing programs and processing data efficiently.
• Communication Interfaces: Supports RS-232, RS-485, and Ethernet interfaces, facilitating integration with various industrial networks.
• Power Requirements: Operates on 24V DC industrial standard power supply, ensuring compatibility with existing power systems.
• Environmental Robustness: Designed to withstand harsh industrial conditions, with an operating temperature range of -40°C to +70°C and resistance to vibration and shock.
• Safety Certifications: Compliant with SIL 3 functional safety standards, making it suitable for safety-critical applications.

Key Features

1. Triple Modular Redundancy (TMR) Architecture:

   The P8431 employs TMR, a fault-tolerant design that uses three identical processing channels. These channels operate in parallel, with majority voting to detect and isolate faults, ensuring continuous operation even in the event of a single-point failure.

2. Hot-Swappable Design:

   Allows for module replacement without system shutdown, minimizing downtime and simplifying maintenance.

3. Advanced Diagnostics and Self-Recovery:

   Built-in self-diagnostic capabilities enable the module to detect, isolate, and recover from faults automatically, maintaining system integrity and reducing operational risks.

4. Flexible Communication Protocols:

   Supports multiple industrial communication protocols, including Modbus, EtherNet/IP, and Profibus, ensuring seamless integration with existing control systems.

5. Scalability and Expandability:

   Designed to accommodate up to 10 expansion racks (including remote racks), with support for up to 128 I/O modules and approximately 5,000 I/O points.

Applications

The ICS Triplex P8431 is ideal for industries where system reliability and safety are non-negotiable, including:

• Oil and Gas: For critical control and safety systems in refineries, pipelines, and offshore platforms.
• Chemical and Petrochemical: In processes requiring high availability and fail-safe operation.
• Power Generation: For plant automation and safety systems in power plants.
• Process Automation: In manufacturing environments where continuous operation is essential.

Conclusion

The ICS Triplex P8431 module is a cornerstone of high-availability industrial automation systems. Its TMR architecture, combined with advanced diagnostic capabilities and flexible communication options, makes it a trusted solution for industries where downtime is not an option. Whether deployed in hazardous environments or critical infrastructure, the P8431 delivers the performance and reliability required to keep operations running smoothly.
