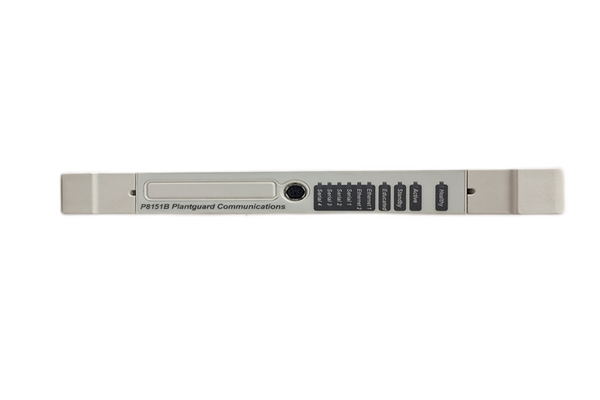

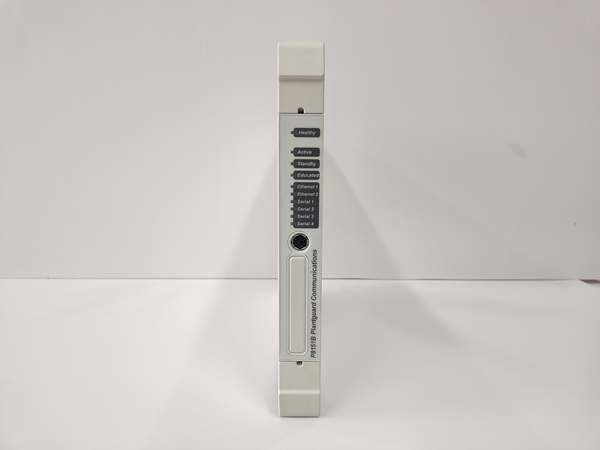

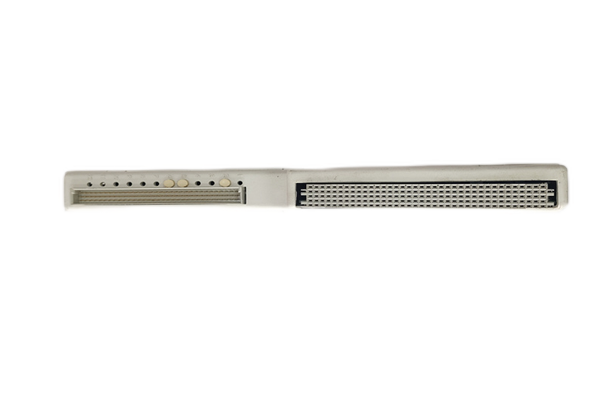

ICS Triplex P8151B Technical Specifications

The ICS Triplex P8151B is a highly reliable and advanced communication interface module designed for industrial control systems, particularly in environments requiring high availability and fault tolerance. Below is a detailed overview of its technical specifications, features, and applications:

Technical Specifications

• Processor: Equipped with a Motorola PowerPC processor, ensuring high-speed data processing and real-time communication capabilities.
• Memory: Features non-volatile memory for storing critical system data and configurations, ensuring data integrity even during power failures.
• Communication Interfaces:
  • Serial Ports: Supports RS-232 and RS-485 for legacy device integration.
  • Network Interface: Includes dual Ethernet ports for high-speed data exchange and redundancy.
• Power Supply: Operates on a 20 Vdc to 32 Vdc input range, with support for redundant power configurations to enhance system reliability.
• Operating Temperature: Designed to function reliably in environments ranging from -20°C to +70°C, making it suitable for harsh industrial conditions.
• Dimensions: Measures 16 cm x 16 cm x 12 cm, with a weight of 0.8 kg, facilitating easy integration into existing control systems.

Functional Features

• Triple Modular Redundancy (TMR): The P8151B is part of the ICS Triplex Trusted TMR System, which provides fault tolerance by running three identical modules in parallel. If one module fails, the others continue to operate, ensuring uninterrupted system performance.
• Real-Time Voting Mechanism: Each module operates independently and communicates with the others to vote on system states, ensuring that correct data is processed and transmitted even in the event of a module failure.
• Advanced Communication Protocols: Supports a variety of industrial protocols, including Modbus Slave and optional Modbus Master (when used with the T812X Trusted Processor Interface Adapter), EtherNet/IP, and others, facilitating seamless integration with diverse control systems.
• Hot-Swappable Design: Allows for the replacement of modules without shutting down the system, minimizing downtime and maintenance costs.
• Fault Detection and Isolation: Built-in mechanisms for detecting and isolating faults, ensuring that issues are localized and do not affect the entire system.
• Firmware Upgradeability: Firmware is stored in flash memory, allowing for easy upgrades via the front panel port to keep the system up-to-date with the latest features and security patches.

Application Scenarios

• Process Control: Widely used in industries such as oil and gas, chemical processing, and power generation, where real-time monitoring and control of critical processes are essential.
• Power Systems: Supports the monitoring and protection of electrical grids, ensuring stable and reliable power distribution.
• Water Treatment: Facilitates the automation of water purification and distribution processes, enhancing efficiency and reducing operational costs.
• Manufacturing: Integrates into production lines to improve automation, quality control, and overall productivity.
• Transportation: Applied in railway, highway, and port automation systems to enhance safety and operational efficiency.
• Building Automation: Used in HVAC, lighting, and security systems to create comfortable, energy-efficient environments.

Key Advantages

• High Reliability: The T8151B‘s TMR architecture ensures continuous operation even in the event of a single module failure, making it ideal for safety-critical applications.
• Scalability: Supports a wide range of communication protocols and can be easily integrated into existing control systems, providing flexibility for future upgrades.
• User-Friendly: Features a user-configurable interface, allowing for easy adaptation to different communication requirements and application scenarios.
• Robust Design: Built to withstand harsh industrial environments, with resistance to vibration, shock, and electromagnetic interference.

The ICS Triplex P8151B is a powerful and versatile communication interface module that offers high reliability, scalability, and ease of integration, making it an excellent choice for demanding industrial applications.
