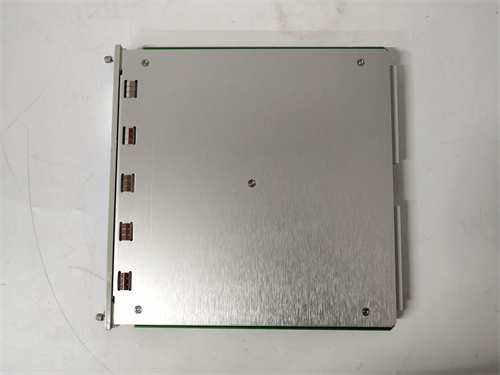

BENTLY 3500/92 Product Introduction

The BENTLY 3500/92 communication gateway module is a high-performance communication component designed for industrial automation systems.It provides a wide range of communication functions,supports Ethernet TCP/IP and multiple serial communication protocols(such as RS232/RS422/RS485),and can be integrated with various process control and other automation systems.

Technical Features

Extensive communication capabilities

Supports Ethernet TCP/IP and serial(RS232/RS422/RS485)communication protocols.

Can be integrated with process control and other automation systems.

Supports multiple communication protocols

Modicon Modbus protocol(via serial communication).

Modbus/TCP protocol(a variant of serial Modbus,used for TCP/IP Ethernet communication).

Bently Nevada proprietary protocol(used to communicate with 3500 frame configuration software and data acquisition software package).

Configurable Modbus registers

The 3500/92 module has a configurable Modbus register utility that provides the same functionality as the original 3500/90 module.

Communication via Modbus registers increases the flexibility and customizability of the device.

Flexible Ethernet connection

The Ethernet connection is a 10BASE-T star configuration using an RJ45 connector.

Supports fast data exchange to ensure real-time and reliability of communication.

High reliability and stability

Adopts high-quality materials and manufacturing processes to ensure long-term reliability.

Designed to work in a variety of industrial environments,supports dual power supply slots and waterproof housings(such as NEMA 4X).

LED status indication

The LED indicators on the front panel of the device(such as the OK LED and TX/RX LED)display the operating status and communication status of the device.

Convenient for users to troubleshoot and maintain the device.

Application scenarios

The BENTLY 3500/92 communication gateway module is suitable for various industrial automation systems,especially those that require remote monitoring and data management.It can communicate with a variety of devices and systems to provide comprehensive mechanical protection and condition monitoring solutions.In addition,it can be used with other Bently Nevada monitoring modules to achieve more complex automation control tasks.
