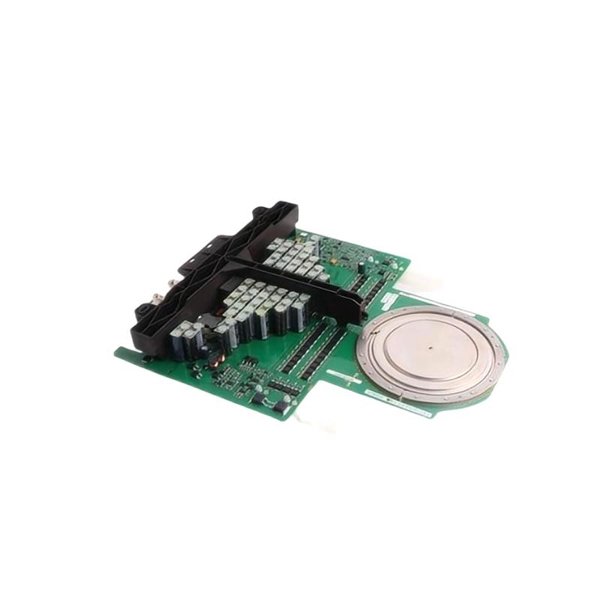

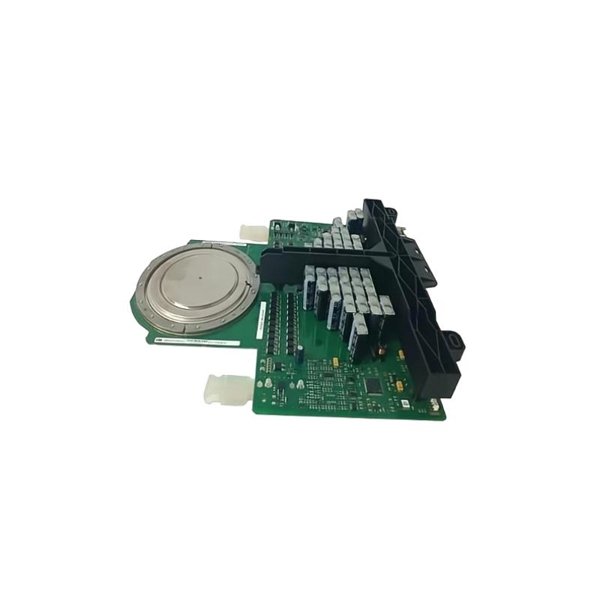

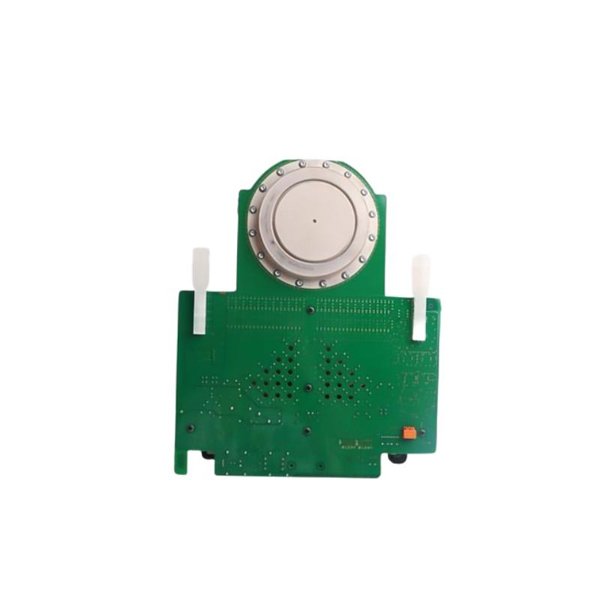

The ABB 5SHY5055L0002 3BHB026114R0001 IGCT (Integrated Gate-Commutated Thyristor) module is a high-performance power semiconductor device designed to manage high-voltage and high-current switching in demanding industrial applications. Known for its reliability, efficiency, and durability, this module is part of ABB’s prestigious IGCT product family. These modules are specifically engineered for optimal performance in power electronics systems that require fast switching, low losses, and long service life.

The 5SHY5055L0002 module offers a compact design combined with high power handling capabilities. It integrates advanced gate drive technology, which reduces the complexity of circuit designs and enhances the overall system efficiency. The module is an ideal solution for applications like motor drives, renewable energy systems, and high-voltage direct current (HVDC) converters. Its versatility makes it suitable for both light industrial applications and heavy-duty systems.

The advanced materials used in the construction of this IGCT module, along with its efficient heat dissipation design, ensure that it operates optimally in both normal and extreme conditions. Its superior switching characteristics make it highly effective in applications that demand rapid and reliable power conversion.

Product Specifications

Below are the detailed specifications of the ABB 5SHY5055L0002 IGCT module:

Product Applications

The ABB 5SHY5055L0002 3BHB026114R0001 IGCT module is designed to meet the power conversion needs of various industrial and commercial sectors. Some of the most common applications of this IGCT module include:

1. Motor Drives: The module is ideal for controlling large motors in industries such as steel, cement, and petrochemicals, where efficient motor drive solutions are crucial.

2. Power Converters: It is widely used in power conversion applications, such as in renewable energy systems like wind and solar power, to efficiently convert DC power to AC.

3. HVDC Systems: The module plays a crucial role in high-voltage direct current (HVDC) transmission systems, enabling long-distance power transmission with minimal losses.

4. Induction Heating: Used in induction heating systems to provide precise temperature control, which is essential for processes such as metal hardening and forging.

5. Electric Vehicles (EV): The IGCT module is used in the power conversion systems of electric vehicles and electric buses, ensuring reliable and efficient energy conversion.

6. Energy Storage Systems: It is utilized in battery storage systems to manage the conversion between AC and DC, ensuring safe and efficient energy storage and release.

7. Traction Systems: In railway and tram systems, this module provides efficient power conversion for the traction motors, improving performance and energy efficiency.

8. Power Generation: The module is employed in large-scale power generation systems to manage and convert electrical energy with high efficiency, reducing energy loss and improving system reliability.

9. Industrial Automation: Used in automated manufacturing plants, where precise control of electric motors and power systems is essential for the efficient operation of machinery.

10. Renewable Energy Integration: In systems that integrate renewable energy sources with the grid, the module ensures smooth and efficient power conversion between various energy sources.

Product Advantages

The ABB 5SHY5055L0002 IGCT module offers several advantages, making it a preferred choice in high-power applications:

1. High Efficiency: With an efficiency rating of 99.5%, the module minimizes energy losses and improves overall system performance, making it a cost-effective choice in power conversion applications.

2. Compact Design: The module’s small form factor allows it to fit into compact spaces, making it suitable for systems with limited space for power electronics components.

3. Integrated Gate Drive: The built-in gate drive system simplifies circuit design, reduces component count, and enhances reliability by eliminating the need for external gate drivers.

4. Fast Switching Capabilities: The 10 kHz switching frequency of the module makes it ideal for high-speed applications, improving overall system response and efficiency.

5. Wide Operating Temperature Range: The module can operate in temperatures ranging from -40°C to +125°C, ensuring it works reliably in both extremely cold and hot environments.

6. Durability and Reliability: Made from high-quality materials like copper, silicon, and ceramic, the module is built to withstand harsh industrial conditions, offering long service life and reduced maintenance costs.

7. Low Conduction Losses: The module’s design minimizes conduction losses, which is crucial for applications where power efficiency and thermal management are important.

8. High Power Handling: With a rated voltage of 5,500 V and a current rating of 1,050 A, the module can handle high power loads, making it ideal for large-scale industrial applications.

9. Excellent Heat Dissipation: The module features an advanced cooling system that ensures efficient heat dissipation, helping maintain stable operation even at high loads.

10. Cost-Effective: Despite its advanced technology, the ABB 5SHY5055L0002 module offers a competitive price point, providing excellent value for its performance and longevity.

FAQ

1. What is the ABB 5SHY5055L0002 module used for?

   • This module is designed for high-voltage and high-current switching applications in industries such as motor drives, power conversion, and renewable energy systems.

2. What is the switching frequency of the 5SHY5055L0002 module?

   • The module operates with a switching frequency of 10 kHz, allowing for fast and efficient switching in power conversion systems.

3. What is the operating temperature range of this module?

   • The module can operate in temperatures ranging from -40°C to +125°C, ensuring reliable performance in a variety of environments.

4. What cooling method is required for the 5SHY5055L0002 module?

   • The module requires forced air or liquid cooling to maintain optimal performance during operation.

5. What applications can this module be used in?

   • The 5SHY5055L0002 module is ideal for applications such as motor drives, HVDC systems, renewable energy systems, induction heating, and energy storage.

6. What are the dimensions and weight of the module?

   • The module has dimensions of 500 x 300 x 200 mm and weighs 1.5 kg.

7. What type of gate drive is integrated into the module?

   • The module features an integrated gate drive, simplifying circuit design and reducing the number of external components.

8. How reliable is this module?

   • The module is highly reliable, designed to perform in demanding conditions with built-in protections against overcurrent and overvoltage.

9. Can this module be used in electric vehicle systems?

   • Yes, the module is suitable for use in electric vehicle power conversion systems, ensuring efficient energy management.

10. What materials are used in the construction of this module?

• The module is made of high-quality copper, silicon, and ceramic materials, ensuring durability and efficient heat dissipation.
