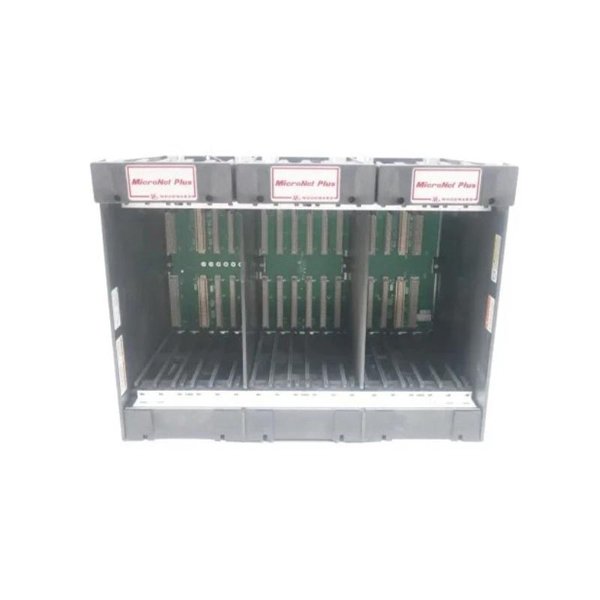

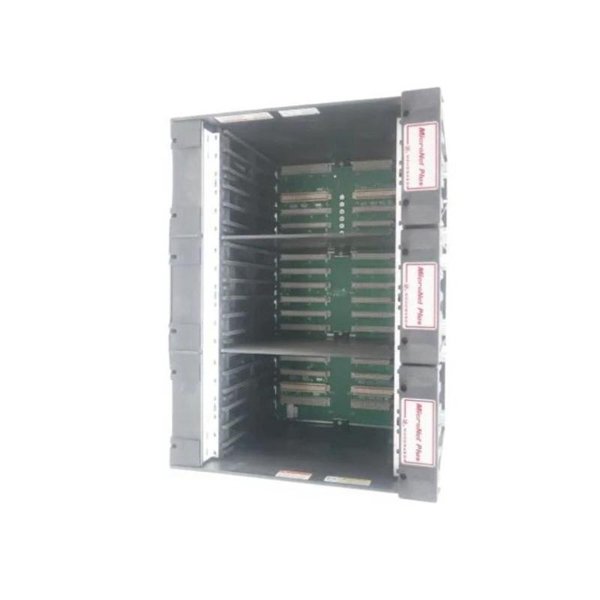

The Woodward 5453-759 MicroNet-Plus 14-Slot Chassis is a robust, industrial-grade modular platform designed to house and interconnect control modules for gas turbine and engine control systems. It provides reliable mechanical support, power distribution, and communication pathways necessary for the operation of Woodward’s MicroNet-Plus control system. Its modular design enables flexible system configurations, supporting complex control schemes with ease of installation and maintenance.

Constructed to withstand demanding industrial environments, this chassis is engineered for use in power generation plants, marine propulsion systems, and various industrial automation applications. It supports redundancy configurations such as Triple Modular Redundancy (TMR), enhancing system availability and safety in critical operations.

Key Features and Advantages

• 14-Slot Capacity: Accommodates up to fourteen MicroNet-Plus control modules, allowing extensive system expansion.

• Modular Design: Simplifies installation, removal, and upgrades of control modules.

• Robust Construction: Durable metal enclosure designed to operate in harsh industrial environments.

• Wide Operating Temperature Range: Suitable for operation between -40°C and +85°C, ensuring reliability across diverse conditions.

• Redundancy Support: Compatible with TMR configurations for high availability and fault tolerance.

• Flexible Communication Interfaces: Supports CAN bus and Ethernet protocols for seamless system integration.

• 24 VDC Power Supply: Standardized power input simplifies installation and maintenance.

• Panel Mountable: Facilitates secure and space-efficient installation within control cabinets.

• Lightweight: At approximately 1.36 kg (3 lbs), it is easy to handle and install.

• Manufactured in the USA: Ensures high-quality production standards and reliable performance.

Technical Specifications

Applications

The Woodward 5453-759 chassis is designed for use in:

• Gas turbine control systems in power plants

• Industrial engine control and automation

• Marine propulsion system control

• Distributed control systems requiring modular expansion

• Critical processes requiring system redundancy and fault tolerance

• Heavy industrial machinery requiring robust and scalable control infrastructure

Frequently Asked Questions (FAQ)

1. How many modules can the 5453-759 chassis accommodate?

   It supports up to 14 MicroNet-Plus control modules.

2. Does this chassis support redundancy configurations?

   Yes, it is compatible with Triple Modular Redundancy (TMR) configurations.

3. What is the operating temperature range?

   The chassis operates reliably from -40°C to +85°C.

4. What communication protocols does it support?

   It supports CAN bus and Ethernet communication interfaces.

5. Is the chassis suitable for outdoor use?

   It is designed for industrial environments; additional protection may be needed for harsh outdoor conditions.

6. What is the power supply requirement?

   The chassis requires a 24 VDC nominal power supply.

7. How is the chassis mounted?

   It is designed for secure panel mounting within control cabinets.

8. What is the weight of the chassis?

   Approximately 1.36 kg .

9. Where is this product manufactured?

   The chassis is manufactured in the United States.

10. Can this chassis be used in marine environments?

    Yes, it is suitable for marine propulsion control systems when properly installed.
