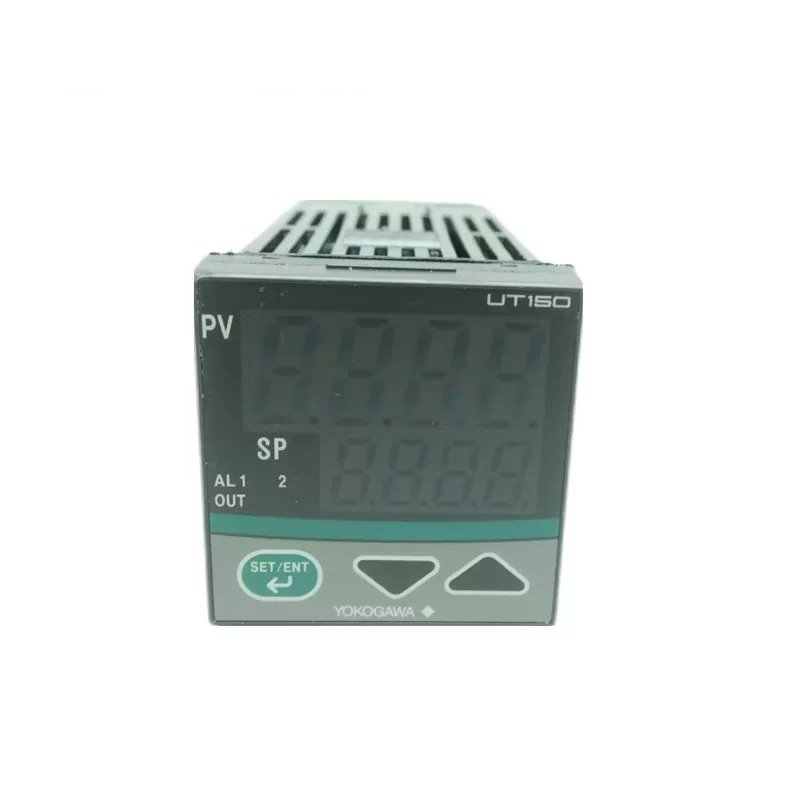

Yokogawa UT150-AN/AL/RET Temperature Controller

The Yokogawa UT150 series includes 1/4 DIN-sized single-loop temperature controllers. It offers diverse features and options to suit various applications.

Features

Universal Input

The UT150 accepts multiple input signals, including thermocouples, RTDs, and voltage/current signals.

PID Control

The UT150 uses PID control with autotuning to provide precise and stable temperature control.

High/Low Alarm

The UT150 has two independent alarms to trigger external devices or indicate out-of-range conditions.

Relay Output

The UT150 includes a relay output for controlling heaters, coolers, or other devices.

Analog Output

The UT150 has an analog output to indicate the process temperature or provide a control signal to another device.

Options

RS485 Communication

You can equip the UT150 with an RS485 communication module for communication with a host controller or SCADA system.

Profibus DP Communication

The UT150 can include a Profibus DP communication module for communication with a Profibus DP network.

Analog Input

The UT150 supports a second analog input for additional process measurement or control.

Universal Power Supply

The UT150 can feature a universal power supply that accepts AC or DC power.

Specifications

• Input: Thermocouple, RTD, or voltage/current
• Output: Relay, analog
• Control: PID with autotuning
• Alarms: Two independent
• Communication: RS485 (optional), Profibus DP (optional)
• Power Supply: 100-240 VAC or 24 VDC
• Dimensions: 48 x 48 x 110 mm (1/4 DIN)

Applications

• Food and Beverage
• Pharmaceutical
• Chemical
• Petrochemical
• Metal Processing
• Plastics Processing
