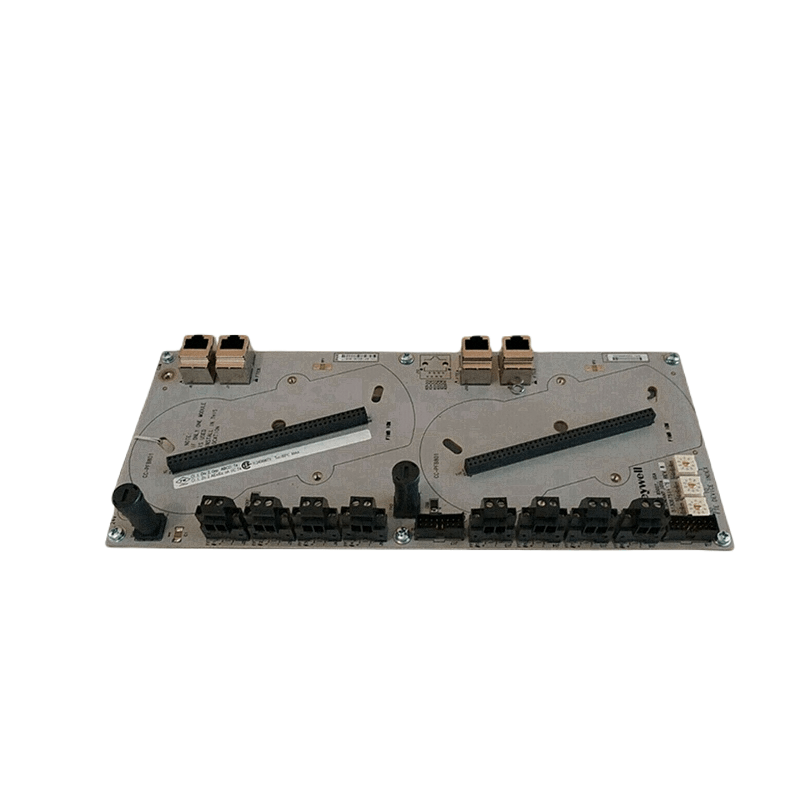

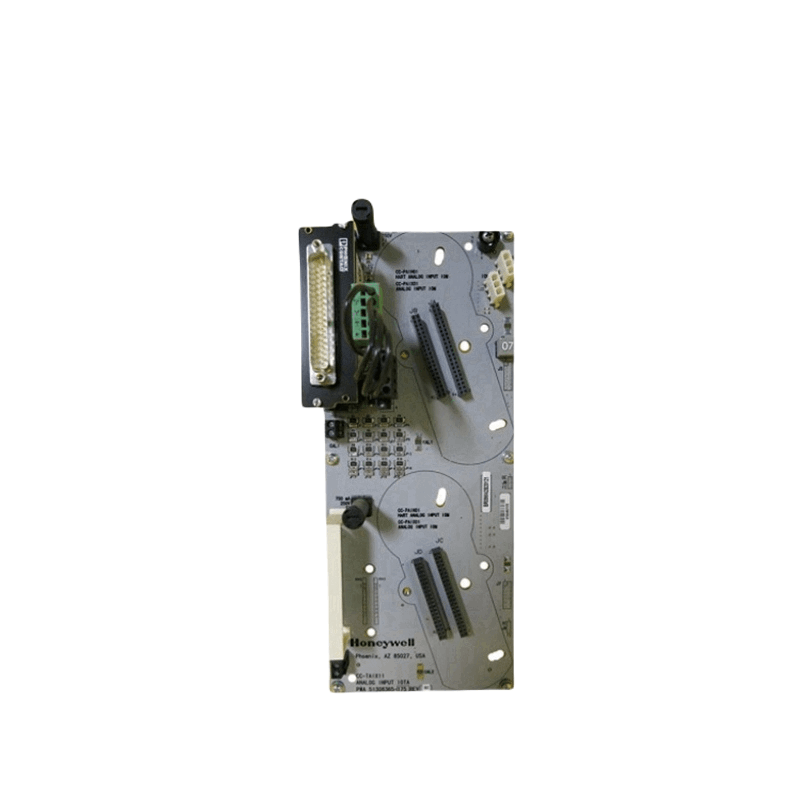

The Honeywell DC-TCF902 PLC Module is a reliable and efficient solution for your industrial automation needs. With its advanced features and high-quality components, it offers excellent performance and durability. In this article, we will explore the features, applications, technical specifications, and benefits of the Honeywell DC-TCF902 PLC Module.

Features

• Compatible with Honeywell’s TDC 3000 and Experion PKS control systems
• 16 digital inputs and 16 digital outputs
• Supports a variety of communication protocols, including Modbus, OPC, and Ethernet/IP
• Dual-redundant processor architecture ensures maximum system uptime
• Built-in diagnostics for easy troubleshooting and maintenance

Applications

The Honeywell DC-TCF902 PLC Module is suitable for a wide range of industrial automation applications, including:

• Process control
• Power generation
• Manufacturing
• Oil and gas
• Chemical processing
• Water and wastewater treatment

Technical Specifications

• Model: DC-TCF902
• Input voltage: 24 VDC
• Digital inputs: 16
• Digital outputs: 16
• Communication protocols: Modbus, OPC, Ethernet/IP
• Processor redundancy: Dual
• Operating temperature range: -40°C to 70°C
• Dimensions (HxWxD): 11.9 x 5.6 x 6.8 in (30.2 x 14.2 x 17.2 cm)
• Weight: 4.1 lbs (1.9 kg)

Benefits

• Reliable and efficient performance for industrial automation
• Compatible with Honeywell’s TDC 3000 and Experion PKS control systems
• Dual-redundant processor architecture ensures maximum system uptime
• Built-in diagnostics for easy troubleshooting and maintenance
• Suitable for a wide range of industrial applications
• High-quality components ensure durability and longevity

Conclusion

The Honeywell DC-TCF902 PLC Module is an excellent choice for your industrial automation needs. Its advanced features, compatibility with Honeywell’s control systems, and dual-redundant processor architecture ensure reliable and efficient performance. With its built-in diagnostics and suitability for a wide range of applications, it offers easy troubleshooting and maintenance.

FAQs

Q: Is the Honeywell DC-TCF902 PLC module easy to install?

A: Yes, the module is designed for easy installation and comes with instructions.

Q: What type of applications is the Honeywell DC-TCF902 PLC module suitable for?

A: The module is suitable for various industrial automation applications, including temperature and process control.

Q: What is the temperature range for the Honeywell DC-TCF902 PLC module?

A: The module can operate within a temperature range of -40°C to 85°C.

Q: What is the weight of the Honeywell DC-TCF902 PLC module?

A: The module weighs approximately 0.5 lbs (0.2 kg).

Q: What is the power supply requirement for the Honeywell DC-TCF902 PLC module?

A: The module requires a 24 VDC power supply.

Q: What is the input signal range for the Honeywell DC-TCF902 PLC module?

A: The module accepts inputs from thermocouples, RTDs, and mV sources. The input signal range depends on the selected input type.

Q: Does the Honeywell DC-TCF902 PLC module offer high accuracy in temperature measurement?

A: Yes, the module offers high accuracy temperature measurement with up to 0.1°C resolution.

Q: What type of communication protocols does the Honeywell DC-TCF902 PLC module support?

A: The module supports various communication protocols, including Modbus RTU and Honeywell DE.

Q: Is the Honeywell DC-TCF902 PLC module suitable for use in hazardous environments?

A: Yes, the module is suitable for use in hazardous environments as it is designed to meet various safety standards.
