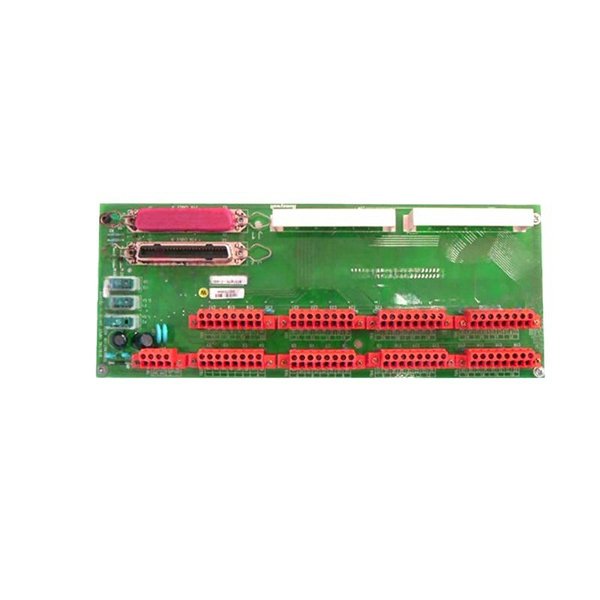

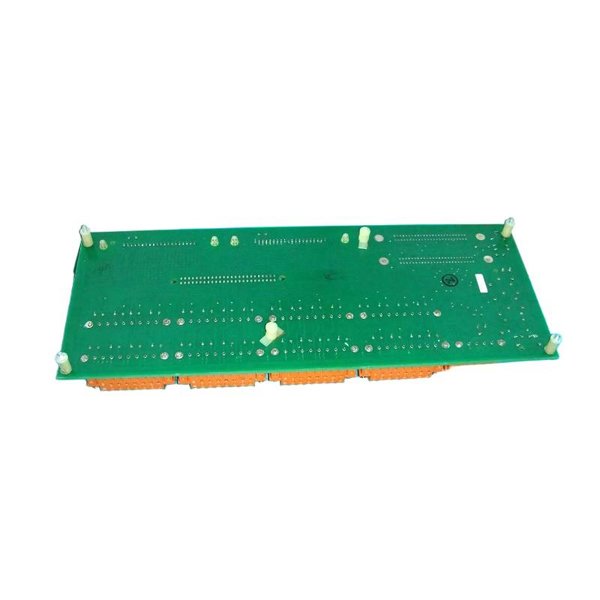

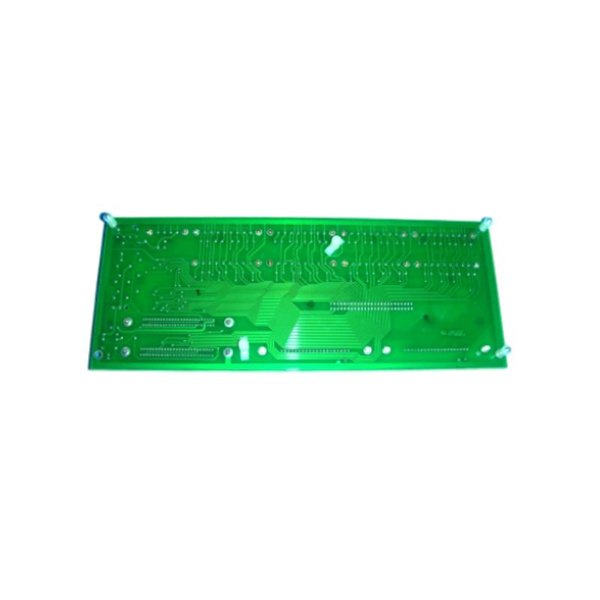

The Honeywell MU-TDIY22 51204160-125 Digital Input Field Termination Assembly is a high-quality, robust component designed to provide secure and reliable termination for digital input signals in industrial environments. This device is engineered for seamless integration into industrial automation and control systems, offering simplified wiring connections for a variety of field devices. The MU-TDIY22 51204160-125 is used to connect digital input devices such as sensors, switches, and relays to control systems, ensuring stable and accurate signal transmission.

Constructed from durable materials, the MU-TDIY22 assembly offers an efficient and cost-effective solution for system integrators and maintenance teams by minimizing installation complexity while maintaining high reliability. The assembly’s compact design, measuring just 307.3 x 120.7 mm, is suitable for installations where space is limited, such as control cabinets, switchboards, and industrial panels.

Technical Specifications

Product Applications

The Honeywell MU-TDIY22 51204160-125 Digital Input Field Termination Assembly is highly versatile and can be used in various industrial applications that require reliable signal termination. Key applications include:

1. Industrial Automation: The assembly is ideal for connecting digital input devices like sensors, switches, and proximity sensors to industrial control systems, ensuring stable data transmission in automation processes.

2. Process Control Systems: It is used to integrate field devices with process control systems, allowing operators to monitor and control industrial processes with real-time data.

3. Energy Management: The unit is perfect for energy management systems, where accurate input from meters and sensors is critical for monitoring and optimizing energy usage.

4. Manufacturing and Production Lines: Commonly used in manufacturing plants to connect input devices that monitor temperature, pressure, and flow, helping to streamline production processes.

5. Building Automation Systems: The MU-TDIY22 assembly is ideal for integrating sensors in building management systems (BMS), providing accurate data for managing HVAC systems, lighting, and security systems.

6. HVAC Systems: Used for connecting temperature, humidity, and airflow sensors in HVAC systems to ensure precise environmental control in large facilities.

Advantages

1. Compact and Efficient Design: The MU-TDIY22 assembly offers a compact design (307.3 x 120.7 mm), making it ideal for installations in small spaces such as control panels, switchboards, and cabinets.

2. High Channel Density: With 16 input channels, this assembly provides the ability to connect a wide range of devices in a single unit, reducing wiring complexity and enhancing system organization.

3. Durability and Reliability: Made from flame-retardant plastic, the MU-TDIY22 is built to last in harsh industrial environments, ensuring long-term reliable operation.

4. Easy Installation: Featuring screw terminals, the assembly allows for quick and secure wiring connections, reducing installation time and improving overall system efficiency.

5. Wide Operating Temperature Range: It can operate in a wide temperature range of -20°C to +60°C, making it suitable for use in various environmental conditions.

6. Cost-Effective Solution: By consolidating multiple input connections into a single unit, the MU-TDIY22 offers a cost-effective solution that simplifies wiring and reduces installation costs.

7. Enhanced Protection: With an IP20 rating, the assembly is protected against dust and small foreign objects, ensuring reliable performance in industrial environments.

8. Versatile Applications: It is compatible with a wide range of industrial sensors, making it ideal for use in automation, process control, and energy management systems.

9. Safe and Secure Connections: The screw terminals provide a secure and stable connection, ensuring the integrity of digital signals and minimizing the risk of signal degradation.

10. Efficient Signal Transmission: The design of the MU-TDIY22 ensures that signals from field devices are transmitted without interference, allowing for accurate monitoring and control.

FAQ(Frequently Asked Questions)

1. What is the input type of the Honeywell MU-TDIY22 51204160-125?

   • The MU-TDIY22 assembly is designed for digital input signals, ideal for use with devices like sensors, switches, and relays.

2. What is the weight of the Honeywell MU-TDIY22 assembly?

   • The weight of the MU-TDIY22 assembly is 0.2 kg, making it lightweight and easy to handle during installation.

3. What is the voltage rating for the MU-TDIY22?

   • The voltage rating for the MU-TDIY22 is 24V DC, which is commonly used in industrial automation and control systems.

4. What is the temperature range in which the MU-TDIY22 can operate?

   • The operating temperature range of the MU-TDIY22 is -20°C to +60°C, making it suitable for use in a variety of industrial environments.

5. How many input channels does the MU-TDIY22 have?

   • The MU-TDIY22 assembly offers 16 input channels, allowing for the connection of multiple field devices to a single unit.

6. What kind of protection does the assembly have?

   • The MU-TDIY22 is rated with IP20 protection, offering basic protection against dust and small foreign objects.

7. Can the MU-TDIY22 be used in process control systems?

   • Yes, the MU-TDIY22 is ideal for use in process control systems, where reliable signal termination from sensors to control systems is essential.

8. What material is used in the construction of the MU-TDIY22?

   • The MU-TDIY22 is made from flame-retardant plastic, ensuring safety and durability in industrial settings.

9. How is the MU-TDIY22 mounted?

   • The assembly is designed for panel mounting, allowing easy integration into control panels or switchboards.

10. What is the connection type for the MU-TDIY22?

    • The MU-TDIY22 uses screw terminals for wiring connections, providing a secure and reliable method for connecting field devices.
