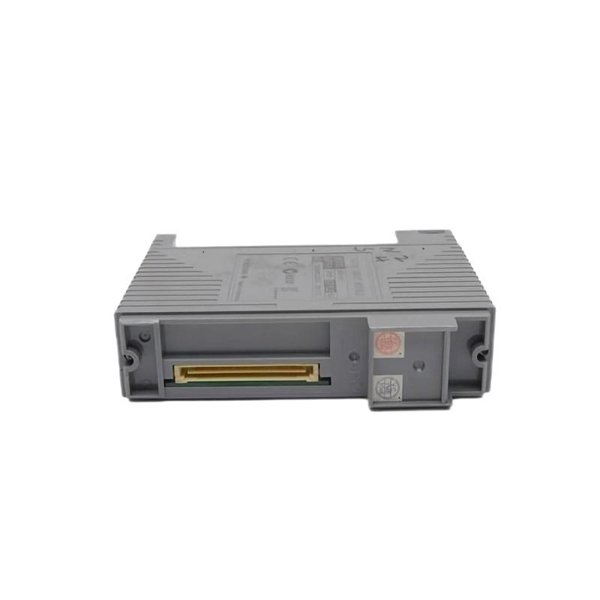

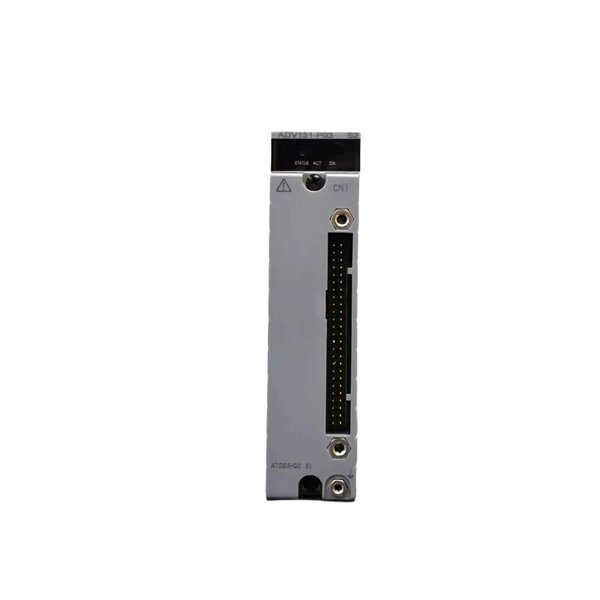

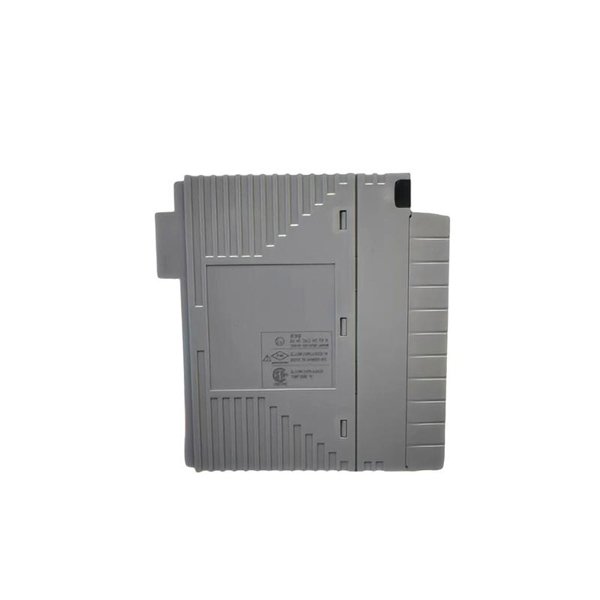

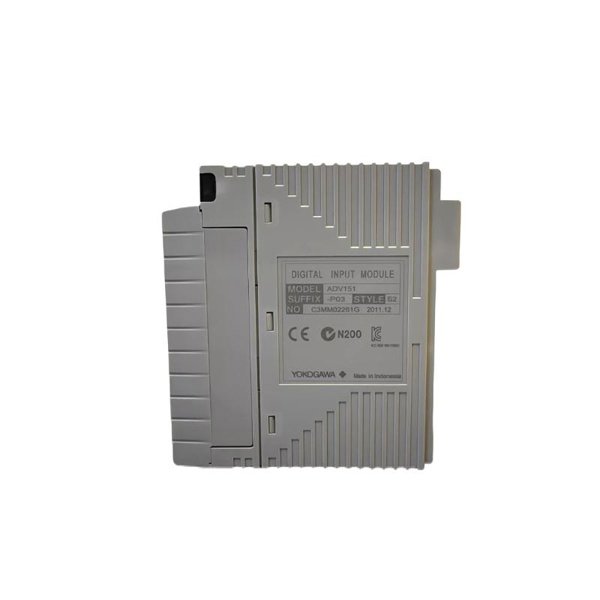

The Yokogawa ADV151-P03/D5A00 is a 16-channel digital input module designed to provide reliable and high-performance digital signal acquisition for Yokogawa’s CENTUM VP and ProSafe-RS control systems. It accepts discrete ON/OFF signals from a variety of field devices, such as switches, relay contacts, and proximity sensors, converting them into processed digital data for monitoring and control purposes.

This model features enhanced input filtering and diagnostic capabilities to ensure accurate signal detection and immediate fault reporting. Its rugged construction supports stable operation in industrial environments, making it ideal for use in process automation and safety applications. The ADV151-P03/D5A00 module offers easy integration with Yokogawa’s automation platforms, allowing system engineers to achieve robust control and efficient fault management.

Product Specifications

Applications

The ADV151-P03/D5A00 is widely used across multiple industries for dependable digital input signal collection, including:

• Process Control: Monitoring of field devices such as limit switches, push buttons, and proximity sensors in oil & gas, petrochemical, and chemical plants.

• Safety Instrumented Systems: Integrated into ProSafe-RS platforms to manage emergency shutdown systems (ESD), fire and gas detection, and other critical safety functions.

• Manufacturing Automation: Control and monitoring of discrete signals in factory automation environments.

• Power Generation: Collection of circuit breaker status and other discrete control signals for power plant automation.

• Water and Wastewater Treatment: Input signal acquisition from level sensors, alarms, and control switches.

• Mining and Heavy Industry: Reliable input processing in harsh environments with dust, vibration, and temperature fluctuations.

Advantages

• High Density Input: Supports 16 discrete inputs in a compact form factor, optimizing rack space.

• Advanced Diagnostics: Enables early detection of wiring faults such as line disconnection or shorts, minimizing downtime.

• Noise Immunity: Optical isolation and signal filtering safeguard input integrity against electrical noise and transients.

• Robust Design: Engineered for industrial-grade reliability in demanding environments.

• Fast Response Time: Ensures timely updates of digital status for responsive control systems.

• Seamless Integration: Compatible with Yokogawa’s CENTUM VP and ProSafe-RS platforms for unified system architecture.

• User-Friendly Maintenance: Diagnostic indicators and system logs facilitate quick troubleshooting.

• Long Lifecycle Support: Yokogawa guarantees availability and support to align with long-term plant operations.

FAQ

1. What kind of signals does the ADV151-P03/D5A00 accept?

   It accepts discrete 24 VDC digital input signals from field devices.

2. How many input channels are available on this module?

   The module provides 16 isolated digital input channels.

3. Is this module compatible with Yokogawa’s ProSafe-RS system?

   Yes, it is fully compatible with both CENTUM VP and ProSafe-RS systems.

4. What diagnostics features are built into the module?

   It detects line disconnection, short circuits, stuck signals, and performs bounce filtering.

5. What are the dimensions and weight of this module?

   It measures 107.5 × 130 × 32.8 mm and weighs about 0.3 kg.

6. Can the module handle noisy industrial environments?

   Yes, it has optical isolation and input filtering to protect against noise.

7. What is the response time of the digital inputs?

   The response time is 10 milliseconds or less per channel.

8. Does this module support hot swapping?

   No, hot swapping is not supported; the module requires powering down before replacement.

9. Is the module certified for use in hazardous locations?

   Depending on configuration, it holds certifications such as ATEX and UL.

10. How is the module powered?

    It receives power from the rack backplane, requiring no separate external power.
