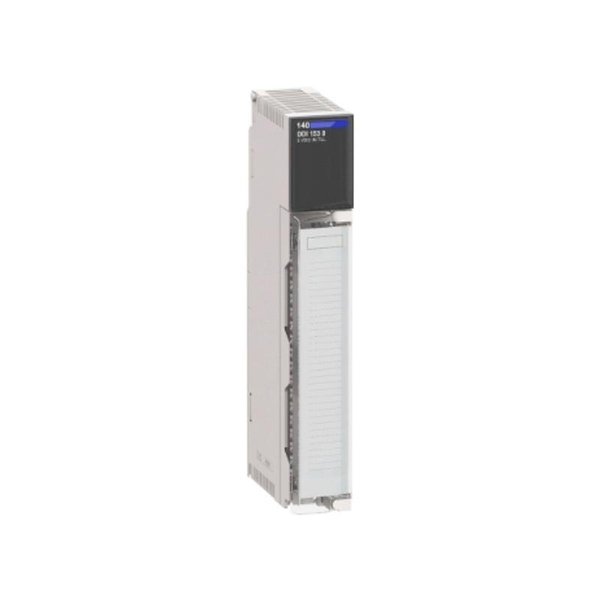

Schneider 140DDI15310C Low Voltage Discrete Input Module
Manufacturer:Schneider
Product Number:140DDI15310C
Product Type:Low Voltage Discrete Input Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.45 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140DDI15310C is a discrete input module from the Modicon Quantum series, designed for reliable low-voltage digital signal acquisition in industrial automation systems. It supports 32 input channels and is optimized for 24 VDC signals. The module ensures secure signal detection with high immunity to industrial noise, making it ideal for mission-critical control systems.
Product Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Series | Modicon Quantum |
| Model | 140DDI15310C |
| Product Type | Discrete Input Module |
| Number of Channels | 32 (Positive Logic) |
| Input Voltage | 24 VDC |
| Input Current | 7 mA at 24 V |
| Input Type | Sink (positive logic) |
| Isolation | 1780 Vrms |
| Module Format | Standard |
| Power Dissipation | 4.5 W |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
| Mounting | Rack-mounted (Quantum Backplane) |
| Status Indicators | Yes (Per channel LED) |
Applications
-
Process automation systems
-
Machine control and monitoring
-
Discrete manufacturing lines
-
Water and wastewater management
-
Power plant control systems
-
Infrastructure automation
Product Advantages
-
Supports high-density input with 32 channels
-
LED indicators for clear signal diagnostics
-
Robust isolation for signal integrity and safety
-
Easy integration into Modicon Quantum PLC systems
-
Compact form factor with lightweight design
-
High immunity to electrical noise in harsh environments
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range of the 140DDI15310C module?
A1: The module operates with a nominal 24 VDC input voltage.
Q2: How many input channels does the module support?
A2: It provides 32 discrete input channels.
Q3: Can this module be used in safety-critical applications?
A3: Yes, it is commonly used in mission-critical automation systems with high reliability requirements.
Q4: Is it compatible with all Quantum racks?
A4: Yes, it is designed to be installed in any standard Quantum backplane.
Q5: Are input states indicated visually?
A5: Yes, each channel has its own LED indicator for status monitoring.
Q6: What type of logic does the module use?
A6: The 140DDI15310C uses positive logic (sink input type).
Q7: What is the isolation voltage of the module?
A7: It provides electrical isolation of 1780 Vrms.
Q8: What is the module’s power dissipation?
A8: Power dissipation is approximately 4.5 W.
Q9: Is configuration software required to use this module?
A9: Yes, configuration is typically done using Schneider’s Unity Pro or EcoStruxure Control Expert software.
Q10: Can it be used in noisy industrial environments?
A10: Yes, the module is designed to operate reliably in harsh environments with high electrical noise.
