Schneider TSXETG100 Product Overview

TSXETG100 is an Ethernet Modbus gateway/router produced by Schneider Electric.As an Ethernet Modbus gateway/router,it can connect Modbus devices to an Ethernet network to achieve communication and data exchange between devices.

Product Features

Compatibility:TSXETG100 complies with the Modbus standard and can easily connect and communicate with various Modbus devices.

Operating System Support:Supports multiple Windows operating systems,including Windows XP Professional,Windows Vista Business and Enterprise Editions,Windows 7 Business and Enterprise Editions,etc.,as well as Windows server versions such as Windows Server 2003 and Windows Server 2008 R2.

Network Function

Integrated Ethernet TCP/IP RJ45 interface,supporting 10/100 Mbps transmission rate.

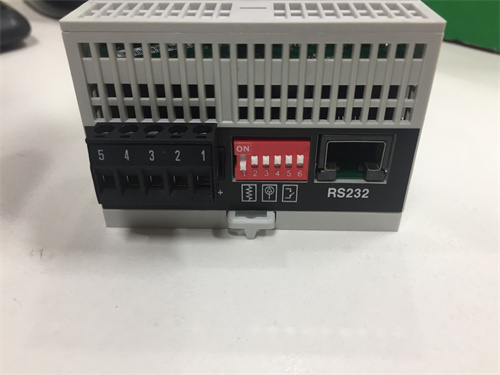

Provides 5-way removable terminal board Modbus RTU and ASCII RS485 serial links,as well as RJ45 RS232 serial links,supporting transmission rates of 57.6 kbps and 38.4 kbps.

Supports SNMP agent and FDR client for easy network management and device monitoring.

Provides predefined web pages for diagnosing device status on Ethernet and Modbus links.

Security:Integrated micro-on-board firewall(IP address filtering)and password protection functions to ensure the security of network communications.

Power supply method:Supports power supply via PoE(IEEE 802.3af)to simplify wiring and management.

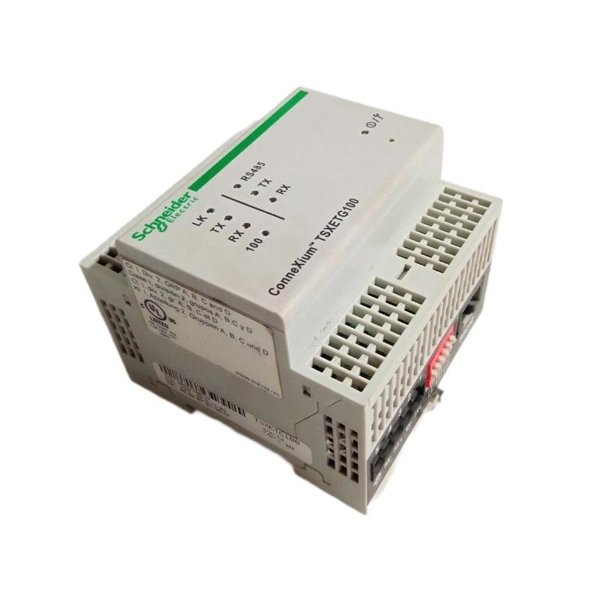

Indicator and LED:Provides local signaling indicator to display serial link communication status(RS485 receive,send),as well as Ethernet communication status(LK,RX,TX,100).

Product Specifications

Rated power supply voltage:24 V DC.

Number of devices:Supports up to 32 Modbus serial link devices.

Physical dimensions:width 72 mm,height 81 mm(specific dimensions may change due to product version and manufacturer updates).

Application scenarios

TSXETG100 is suitable for industrial automation and monitoring systems that need to integrate Modbus devices into Ethernet networks.It can connect scattered Modbus devices,realize centralized data management and monitoring,and improve system efficiency and reliability.
