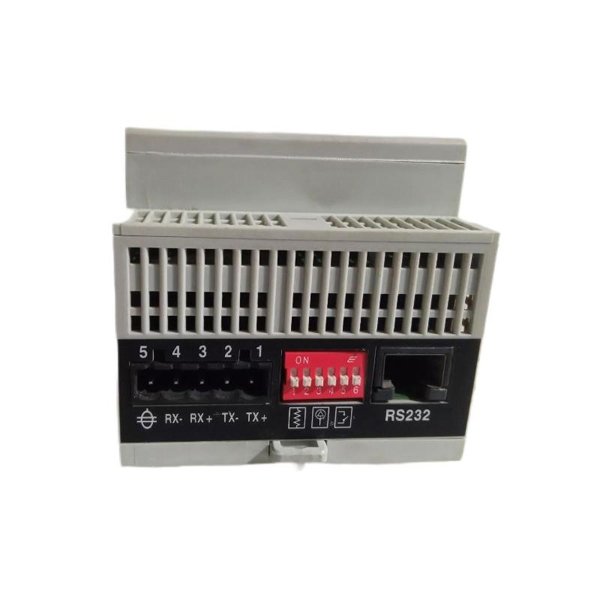

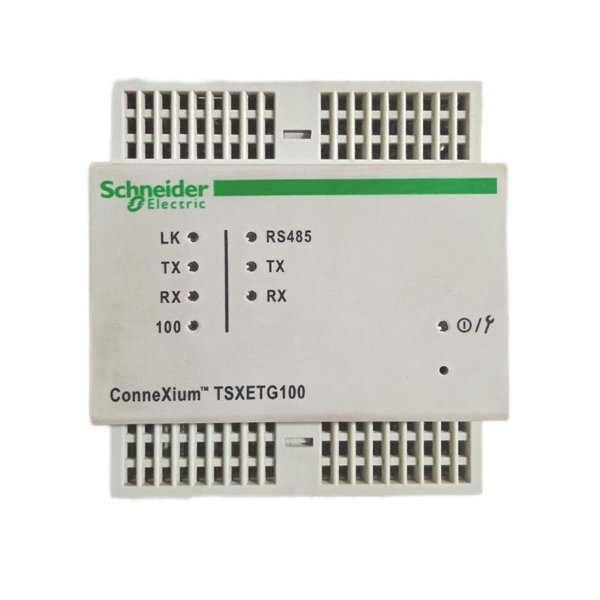

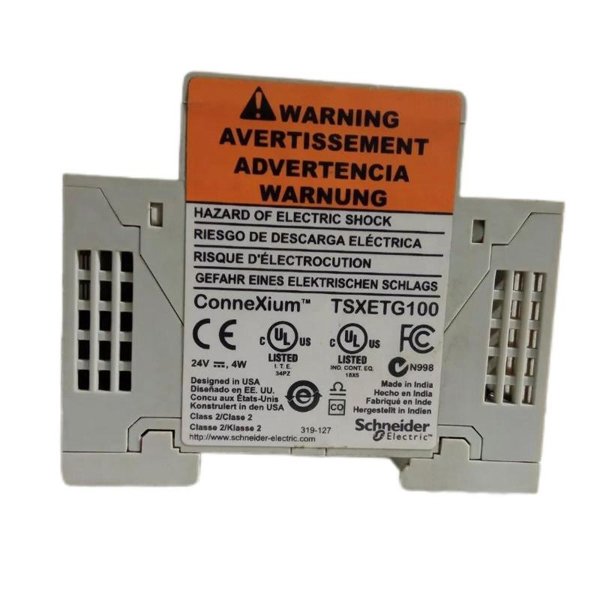

Schneider TSXETG1000 TCP-IP/Modbus Gateway Module

Primarily used in discrete manufacturing, infrastructure, and process industries, this gateway supports secure and efficient data exchange between Ethernet and serial Modbus devices. It provides a cost-effective solution for industries aiming to modernize their communication networks while retaining existing Modbus-compatible field devices.

Technical Specifications

Applications

The TSXETG1000 is used in a variety of industrial automation environments. Key application scenarios include:

• Industrial Automation and Control Systems: Enabling communication between Modicon PLCs and SCADA/HMI over Ethernet.

• Legacy System Modernization: Integrating older Modbus RTU devices into new Ethernet-based control architectures.

• Remote Monitoring: Facilitating data transmission over TCP/IP for real-time remote diagnostics.

• Building Automation: Used in BMS for HVAC, lighting, and energy monitoring control systems.

• Water and Wastewater Treatment: Interfacing multiple PLCs across treatment plant systems.

• Transportation and Infrastructure: Supporting PLC communication in tunnels, traffic control systems, and substations.

Product Advantages

• Seamless Integration: Allows legacy Modbus serial devices to communicate on Ethernet TCP/IP networks.

• Industrial-grade Design: Built for robustness, including resistance to EMI and vibration in harsh industrial environments.

• Compact and Lightweight: Easy to install on DIN rails within tight control panels.

• Fast Deployment: Uses intuitive software (FactoryCast Configurator) for rapid setup and network configuration.

• High Compatibility: Works with a broad range of Schneider Electric Modicon PLCs.

• Scalable Architecture: Supports multiple simultaneous Modbus TCP clients and Modbus RTU slaves.

• Low Power Consumption: Draws power directly from the PLC backplane, eliminating extra wiring.

• Certified for Global Use: Meets CE, UL, CSA standards, making it suitable for global applications.

Frequently Asked Questions (FAQ)

1. What is the main purpose of the TSXETG1000 module?

   The TSXETG1000 functions as a gateway to enable communication between Modbus RTU serial devices and Ethernet Modbus TCP/IP networks.

2. Can this gateway be used with non-Schneider PLCs?

   While optimized for Modicon PLCs, it can connect to any device supporting standard Modbus TCP or RTU protocols.

3. How many devices can I connect using the TSXETG1000?

   It supports up to 16 Modbus TCP clients and multiple serial slave devices, depending on configuration.

4. What configuration software is needed?

   FactoryCast Configurator is typically used to configure IP settings and Modbus parameters.

5. Does it support remote diagnostics?

   Yes, through Ethernet-based SCADA or HMI systems, remote diagnostics are possible.

6. Can it be used in hazardous environments?

   It is rated IP20 and not intended for directly explosive environments unless installed in certified enclosures.

7. What is the data transmission speed on Ethernet?

   It supports both 10 Mbps and 100 Mbps over its RJ45 Ethernet port.

8. Is there a web server interface available?

   Yes, a built-in web server allows monitoring and basic configuration over the browser.

9. Can it be used with Unity Pro software?

   Yes, Unity Pro can detect and integrate the TSXETG1000 for diagnostics and parameter tuning.

10. What’s the difference between TSXETG1000 and TSXETY4103?

    The TSXETG1000 is a standalone gateway module, while TSXETY4103 is a dedicated Ethernet communication module for Premium PLCs with integrated CPU slot installation.
