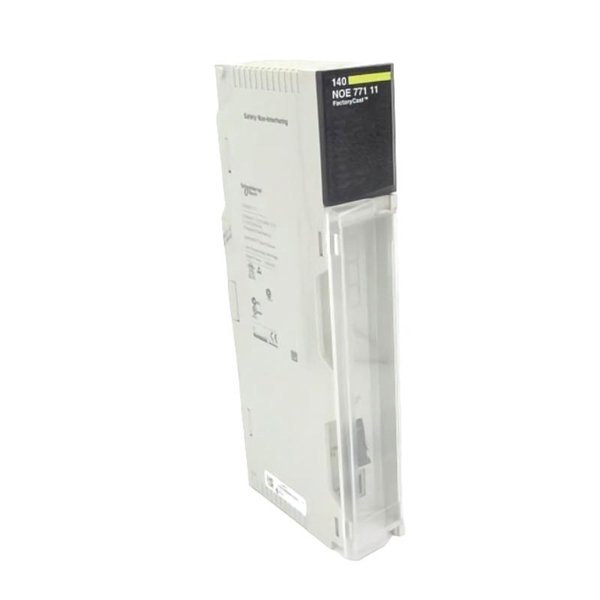

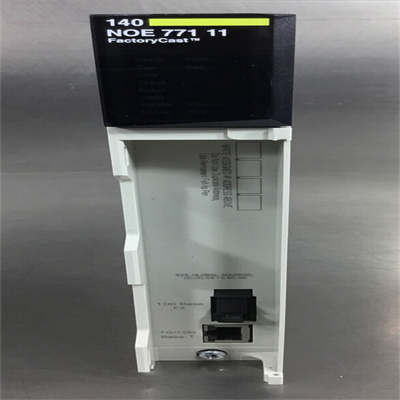

SCHNEIDER 140NOE77111 Product Introduction

The 140NOE77111 module is part of the Modicon Quantum automation platform and is specifically designed to be installed in the slot of the local rack configured with a Modicon Quantum PLC(Programmable Logic Controller).It supports Transparent Ready technology and can easily communicate with other devices without additional configuration or programming.

Main Features

Communication interface:The 140NOE77111 module provides an Ethernet TCP/IP communication interface,supports the Modbus TCP/IP protocol,and has distributed I/O functions.Using a bus or ring(copper or fiber)topology,efficient data transmission and communication can be achieved.

Hot-swappable design:The module adopts a hot-swappable design and can be replaced or upgraded without shutting down the system,greatly improving the system’s availability and maintenance efficiency.

FTP communication:Using the FTP(Ethernet port)communication driver,the transmission rate is 10/100 Mbit/s,ensuring fast and stable data transmission.

Multiple local signaling functions:including 10 Mbps or 100 Mbps data rate,collision detection,download mode,Ethernet module fault,Ethernet network status,full-duplex mode,module ready,network activity and rack operation.These functions provide comprehensive network status monitoring and fault detection capabilities.

Easy to configure and manage:The web server level is C30 and can be configured and managed through the web interface.The bracket observer function of the web server is provided to help users remotely monitor and diagnose through a predetermined observer.

Application field

The 140NOE77111 module is widely used in industrial automation fields such as material handling,packaging and textile machinery.As a data transmission and communication component in industrial automation systems,it can communicate efficiently and stably with other devices and systems to meet the needs of various complex industrial processes.

Technical specifications

Brand:Schneider Electric

Model:140NOE77111

Series:Modicon Quantum

Communication protocol:Modbus TCP/IP

Transmission rate:10/100 Mbit/s

Design features:hot-swap,FTP communication,multiple local signaling functions

Application areas:industrial automation,material handling,packaging,textile machinery,etc.
