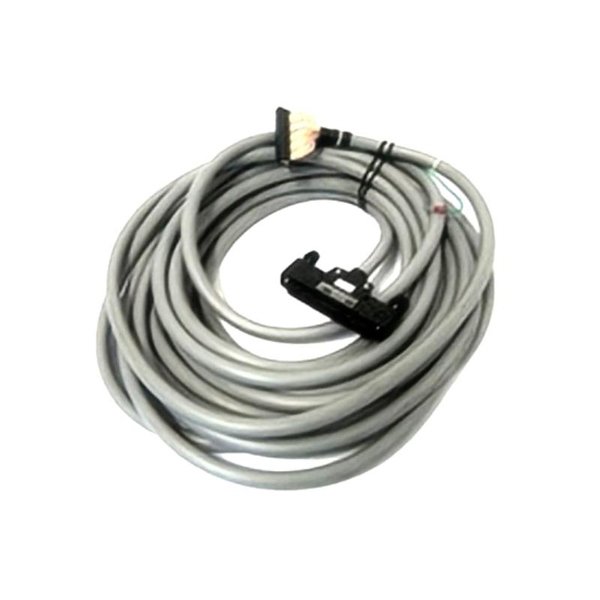

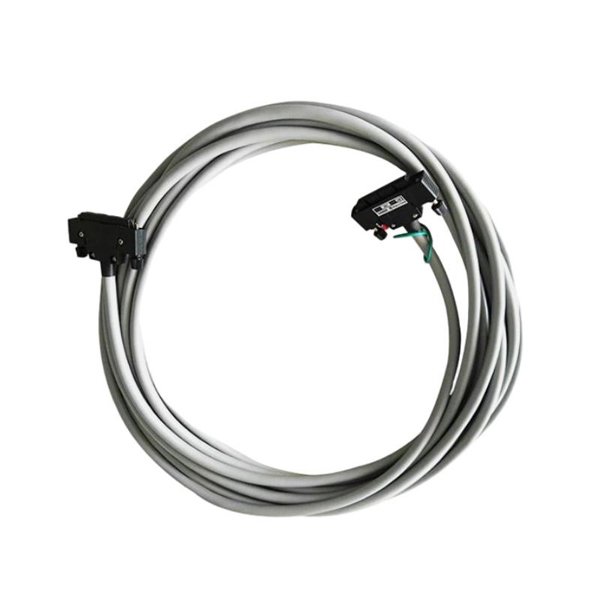

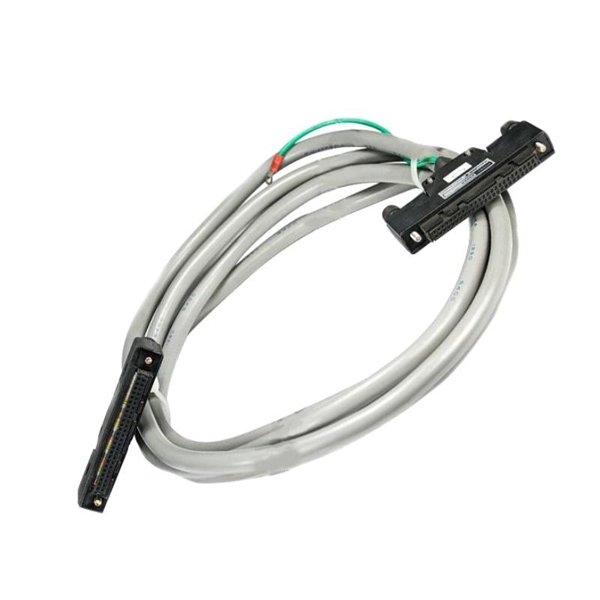

The Yokogawa KS10-20*A Cable is a specialized industrial-grade connection cable engineered to interface reliably with Yokogawa’s control systems and instrumentation platforms. Designed for rugged environments, the KS10-20*A is known for its robust shielding, high-flex durability, and consistent electrical signal transmission performance. It is commonly used in Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and other industrial automation setups where accurate and uninterrupted signal flow is critical.

This cable offers seamless integration with Yokogawa hardware, particularly their CENTUM VP and ProSafe-RS series, ensuring operational safety and precision. Its construction supports long-distance data transmission with minimal interference, making it ideal for both control and field signal applications.

Product Specifications

Product Applications

The KS10-20*A cable is designed for use in a wide range of industrial automation and control applications, particularly where precise signal transmission and environmental durability are required:

• Distributed Control Systems (DCS), such as Yokogawa CENTUM VP

• Safety Instrumented Systems (SIS), including ProSafe-RS

• Programmable Logic Controllers (PLC)

• Process control and monitoring equipment

• Signal transmission for sensors and actuators

• Control room cabling

• Power plant and oil & gas instrumentation

• Chemical plant automation wiring

Its performance under electromagnetic interference (EMI) conditions and resistance to physical stress makes it suitable for heavy industrial environments.

Product Advantages

• Superior Signal Integrity: Shielded design minimizes noise, enhancing data integrity across distances.

• Durability in Harsh Environments: Flame-retardant PVC and reinforced shielding provide resilience in chemically aggressive or high-temperature locations.

• Flexibility: Multistranded core construction allows for easier routing in tight enclosures or conduit installations.

• Compatibility with Yokogawa Systems: Engineered for seamless plug-and-play integration with Yokogawa’s automation products.

• Reduced Downtime: High reliability minimizes signal errors and system failures, reducing maintenance needs.

• Long Lifecycle: Designed for industrial use, the cable maintains performance over extended operational life.

Frequently Asked Questions (FAQ)

1. What systems are compatible with the Yokogawa KS10-20*A cable?

It is primarily compatible with Yokogawa CENTUM VP, ProSafe-RS, and other DCS/PLC products.

2. Is the KS10-20*A cable suitable for outdoor use?

While it has good insulation and shielding, it is best suited for indoor or enclosed conduit environments unless additional weatherproofing is applied.

3. Can this cable be cut and customized in length?

Yes, the KS10-20*A can be cut to desired lengths and terminated as needed for installation.

4. Does the cable come with connectors?

The standard model is open-ended; however, it can be customized with connectors upon request.

5. What is the maximum voltage it can carry?

The cable is rated for 300V maximum.

6. Is the cable fire-resistant?

Yes, it meets IEC 60332-1 flame resistance standards.

7. What kind of shielding is used?

It uses aluminium-mylar foil with a drain wire to provide excellent EMI shielding.

8. Can I use this cable for analog and digital signals?

Yes, it is suitable for both analog and digital signal transmission.

9. Is the cable RoHS compliant?

Yes, the KS10-20*A conforms to RoHS environmental compliance standards.

10. How is it packaged for delivery?

It typically comes coiled and sealed in protective industrial-grade packaging for transport.
