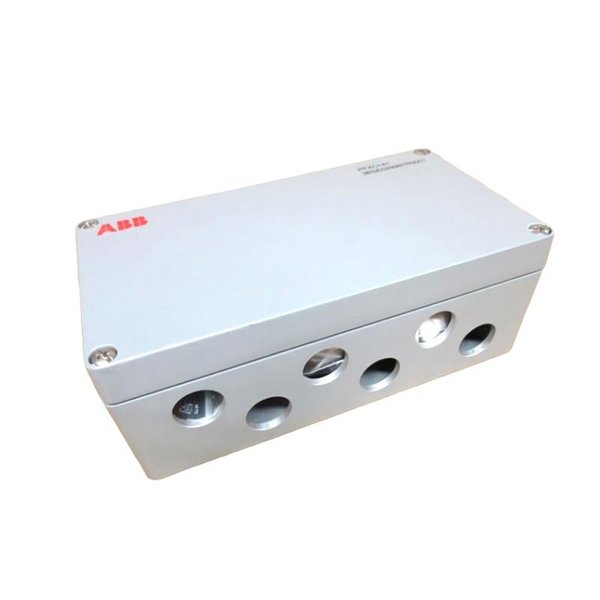

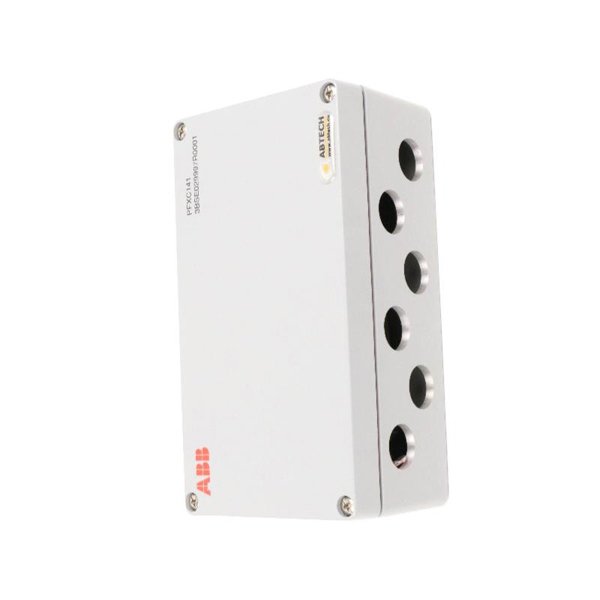

The ABB PFXC141 (part number 3BSE029997R1) is a specialized Control Unit designed to interface with ABB’s high-performance web tension control systems. It acts as a centralized processing and command module, enabling communication, coordination, and precise adjustment between ABB load cells, signal amplifiers (like PFEA modules), and drive systems such as DCS800 and ACS880.

This module is part of ABB’s PFXC series, which complements the PFEA and PFEV components in closed-loop tension control systems. The PFXC141 is engineered for demanding applications where real-time precision, ruggedness, and compatibility with multiple sensors and feedback loops are essential. It supports advanced diagnostics, parameter management, and firmware interfacing, and it is optimized for integration into paper, plastic film, textile, and converting machinery.

Product Specifications

Applications

The ABB PFXC141 control unit is used in closed-loop tension measurement and control systems. Its flexible interface makes it ideal for industrial applications requiring real-time feedback and high-precision signal management.

Typical applications include:

• Paper Machines: Controls tension across multiple web zones.

• Plastic Film Production: Maintains stable tension during extrusion, slitting, and rewinding.

• Textile Processing Equipment: Regulates thread and fabric tension in spinning and weaving systems.

• Flexible Packaging Machinery: Ensures accuracy during material feeding and lamination.

• Steel and Metal Strip Lines: Controls tension during coiling and processing.

• Printing Presses: Prevents paper deformation by keeping consistent feed tension.

Product Advantages

• Centralized Control: Integrates sensor feedback, analog signals, and drive commands into one platform.

• Plug-and-Play with ABB Modules: Fully compatible with PFEA amplifiers and PFEV matching units.

• Advanced Diagnostics: Built-in diagnostics and fault indication via LEDs and software interfaces.

• Wide Communication Support: Supports RS-232/RS-485 and Modbus for flexible system integration.

• Industrial-Grade Design: Durable enclosure and high EMC immunity for harsh industrial environments.

• Compact Form Factor: Small DIN rail-mountable design suitable for dense control cabinets.

• Firmware Upgradeable: Future-proof with support for firmware updates via service interface.

• High-Speed Processing: Real-time microcontroller processing ensures precise tension loop stability.

• Energy Efficient: Low power consumption helps reduce panel heat and operating costs.

• Global Certification: CE and UL listing ensures safety and compatibility across markets.

Frequently Asked Questions (FAQ)

1. Q: What devices can be connected to the PFXC141 input channels?

   A: The PFXC141 receives tension signals from ABB PFEA modules, which process input from strain gauge-based load cells.

2. Q: Can the PFXC141 directly control a drive or motor?

   A: No, it does not directly drive motors. Instead, it sends processed tension signals to ABB drives like the DCS800 or ACS880.

3. Q: Is the PFXC141 programmable via PC?

   A: Yes. Configuration and diagnostics can be done via RS-232 or RS-485 interfaces using ABB’s service software tools.

4. Q: What type of output does the PFXC141 provide to the drive system?

   A: It offers analog output (±10V) and digital relay signals for control interfacing and alarm triggers.

5. Q: Does the PFXC141 support redundant input signals?

   A: Yes. It can handle dual tension signal inputs for redundancy or cross-checking between web zones.

6. Q: What fault protection does the unit have?

   A: It includes internal diagnostics for sensor failure, signal dropout, overrange errors, and communication faults, all shown via front-panel LEDs.

7. Q: How is the unit powered in a typical system?

   A: It operates on a 24V DC industrial power supply, typically shared with control panels and sensors.

8. Q: What happens during a power outage? Does it retain configuration?

   A: Yes. The PFXC141 stores configuration settings in non-volatile memory, so there is no need for reprogramming after power restoration.

9. Q: Can it be mounted vertically in control panels?

   A: Yes. Its DIN rail mounting system allows flexible vertical or horizontal placement in control cabinets.

10. Q: Is the PFXC141 compatible with older PFEA versions?

    A: Yes. It is backward compatible with previous ABB PFEA tension electronics, making it suitable for both retrofit and new installations.
