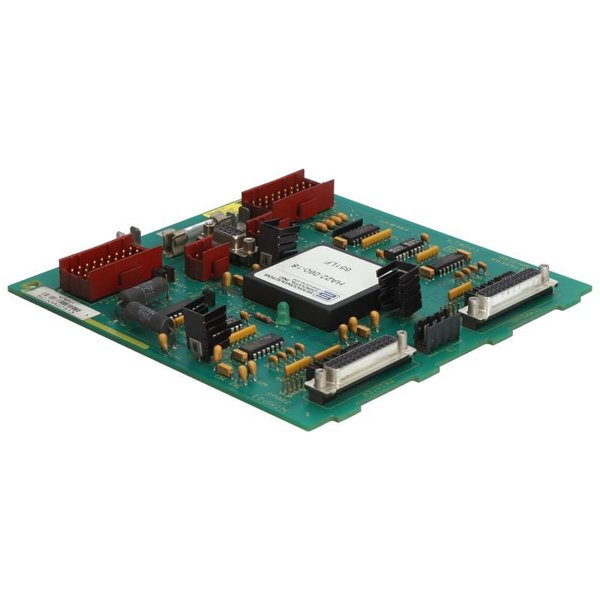

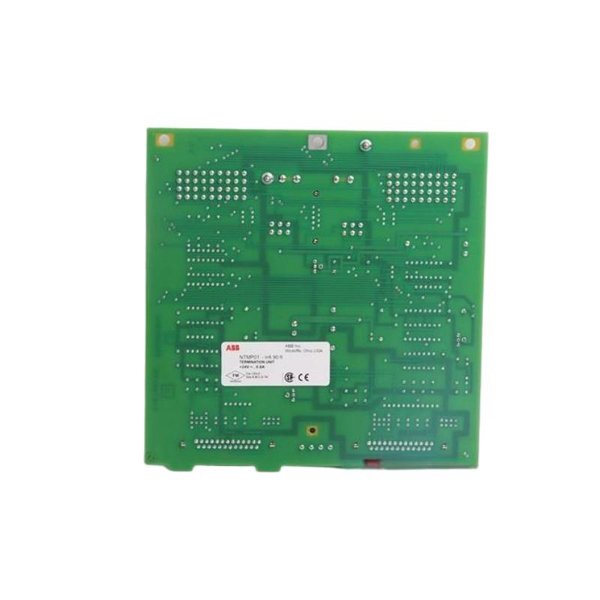

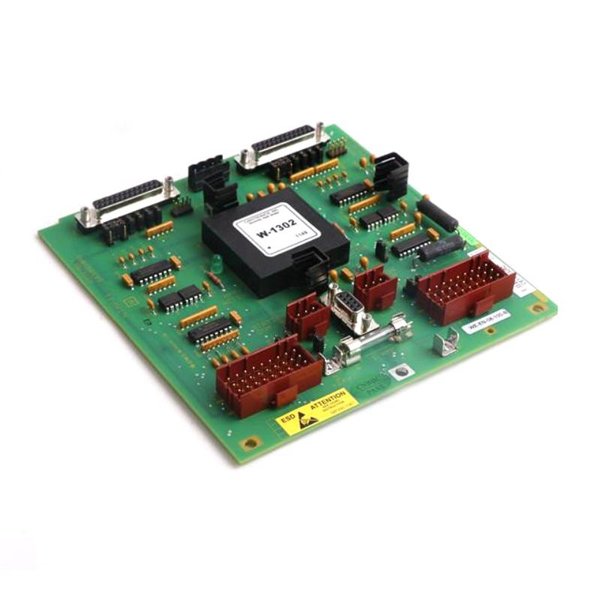

The ABB Bailey NMTP01 is a high-performance modular terminal board designed for industrial automation and control systems. It is part of ABB’s Bailey product line, known for reliability and durability in harsh environments. The NMTP01 facilitates secure and efficient wiring connections in distributed control systems (DCS), process automation, and power generation applications. Its robust construction ensures long-term stability, even in high-vibration and high-temperature conditions.

Product Specifications

The NMTP01 features a compact yet sturdy design, with precise engineering to ensure optimal signal integrity and ease of installation. Below are the detailed technical parameters:

Product Applications

The NMTP01 is widely used in industries requiring secure and organized wiring solutions, including:

• Power Plants: For control panel wiring in turbine and boiler systems.

• Oil & Gas: Signal termination in hazardous environments.

• Chemical Processing: Reliable connections in corrosive atmospheres.

• Manufacturing: Integration into PLC and DCS cabinets.

• Water Treatment: Monitoring and control system wiring.

Product Advantages

1. Modular Design: Allows flexible configuration and easy expansion.

2. High Durability: Resistant to vibrations, dust, and moisture.

3. Easy Installation: Tool-free terminal clamping for quick wiring.

4. Safety Compliance: Meets international standards for electrical safety.

5. Space-Saving: Compact size optimizes panel space utilization.

6. Long Service Life: High-quality materials ensure minimal maintenance.

Frequently Asked Questions (FAQ)

Q1: What is the maximum wire size supported by the NMTP01?

A: It supports wires from 0.2 mm² to 2.5 mm².

Q2: Can the NMTP01 be used in outdoor environments?

A: Yes, but it should be installed in a protective enclosure to prevent direct exposure to rain or extreme UV.

Q3: Is the terminal board compatible with solid and stranded wires?

A: Yes, it accommodates both types securely.

Q4: What is the voltage isolation rating?

A: It provides 300 V AC/DC isolation between terminals.

Q5: Are replacement terminals available for the NMTP01?

A: Yes, ABB offers spare terminals and accessories.

Q6: Does the NMTP01 require special tools for installation?

A: No, it features tool-free clamping for easy wiring.

Q7: Can multiple NMTP01 units be stacked together?

A: Yes, the modular design allows stacking for expanded I/O needs.

Q8: What certifications does the NMTP01 hold?

A: It is CE, UL, and IEC 60664-1 certified.

Q9: What is the operating temperature range?

A: -20°C to +70°C.

Q10: How does the NMTP01 compare to traditional terminal blocks?

A: It offers higher density, better vibration resistance, and easier maintenance.
