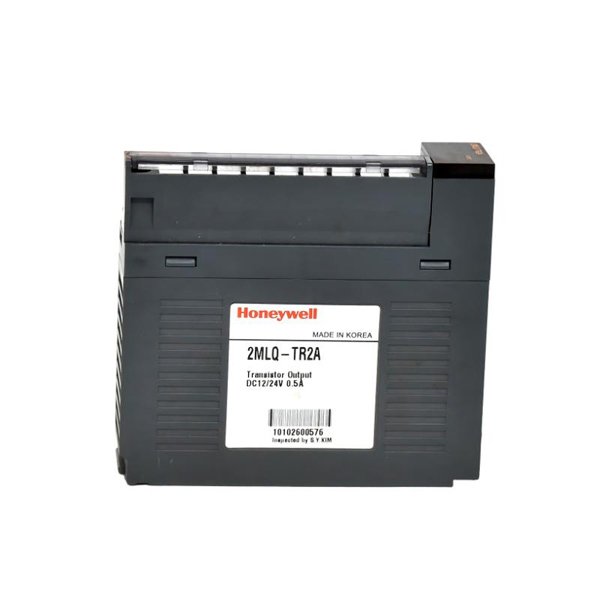

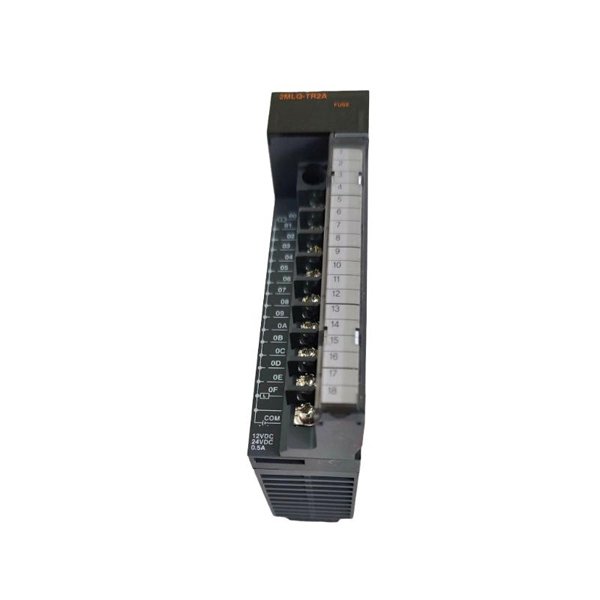

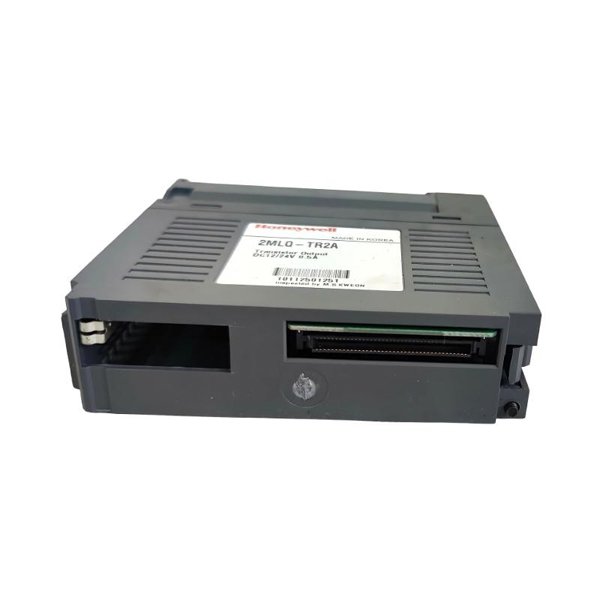

The Honeywell 2MLQ-TR2A Output Module is a high-quality industrial automation component designed to provide efficient and reliable output signals for various control systems. Part of Honeywell’s 2MLQ Series, this output module is engineered to meet the demands of modern industrial applications, offering flexibility, durability, and enhanced performance.

The 2MLQ-TR2A Output Module is typically used in automation systems to drive actuators, valves, motors, and other mechanical systems based on the control logic provided by a central controller. It ensures accurate signal conversion and transmission, providing the necessary outputs to control field devices in manufacturing, processing, and other industrial environments.

Honeywell has designed this module to offer excellent performance in high-demand applications, ensuring smooth operation of complex systems. Its versatile capabilities allow it to interface with various input/output (I/O) devices, making it ideal for integration into both new and existing automation setups.

Product Specifications

Product Applications

The Honeywell 2MLQ-TR2A Output Module is widely used in various industrial automation and control systems. Its ability to convert control signals into precise output actions makes it suitable for a broad range of applications:

• Process Control Systems: This module is used in industries such as chemical, pharmaceutical, and food processing, where it controls equipment like pumps, valves, and mixers based on real-time process data.

• Manufacturing Automation: It is ideal for controlling machines, robotic arms, and automated production lines in sectors such as automotive, electronics, and consumer goods.

• Building Automation: Used in controlling HVAC systems, lighting, and security systems to improve energy efficiency and ensure optimal building management.

• Energy Management: In power plants, the module controls critical systems like turbines and generators, helping maintain optimal performance and energy efficiency.

• Water Treatment: It helps control water treatment processes, including pumps and filtration systems, ensuring water quality and process stability.

• Material Handling Systems: It can control conveyors, lifts, and sorting systems, improving logistics and material flow in warehouses and distribution centers.

Product Advantages

• High Precision: The 2MLQ-TR2A Output Module provides highly accurate output signals, ensuring precise control over connected equipment and processes.

• Dual Channel Output: With 2 channels capable of handling both digital and analog outputs, the module offers flexibility to suit a variety of industrial applications.

• Reliable Performance: Designed for reliability, this module offers robust protection features, including short-circuit, overcurrent, and overvoltage protection, ensuring the safety of connected devices.

• Wide Input Voltage Range: The module accepts a wide input voltage range of 100-240 VAC, making it suitable for global applications without requiring additional converters.

• Compact Design: The module’s 22 x 124 x 126 mm compact form factor allows it to fit into tight spaces, simplifying installation even in crowded control panels.

• Durable Construction: With an operating temperature range of -10°C to +60°C, this module is built to operate reliably even in harsh industrial environments.

• Easy Integration: The DIN rail mounting allows for simple integration into existing control systems and panel setups.

• Efficient Cooling: The module operates using natural convection cooling, eliminating the need for active cooling systems like fans, which reduces maintenance needs and enhances system longevity.

• Global Certifications: Certified with CE, UL, and RoHS, the module meets international standards for safety, quality, and environmental compliance.

• Cost-Effective: By enabling precise control and reducing the risk of equipment failure, the 2MLQ-TR2A contributes to reduced downtime, lower maintenance costs, and improved system performance.

Frequently Asked Questions (FAQ)

1. What is the output voltage of the Honeywell 2MLQ-TR2A Output Module?

The module provides a stable 24 VDC output, which is suitable for driving various field devices like actuators and valves.

2. How many channels does the 2MLQ-TR2A Output Module have?

The module features 2 output channels, providing flexibility for controlling multiple devices simultaneously.

3. Can this module handle both analog and digital outputs?

Yes, the module is capable of handling both analog and digital outputs, making it adaptable to a variety of control applications.

4. What is the operating temperature range of the Honeywell 2MLQ-TR2A?

The module operates within a temperature range of -10°C to +60°C, suitable for most industrial environments.

5. How is the 2MLQ-TR2A Output Module mounted?

The module is designed for DIN rail mounting, making it easy to integrate into existing control systems and panel setups.

6. Does the module offer protection features?

Yes, the 2MLQ-TR2A includes short-circuit, overcurrent, and overvoltage protection to safeguard the connected equipment from power-related issues.

7. What is the input voltage range of the module?

The module accepts an input voltage range of 100-240 VAC, making it suitable for use in a variety of global industrial applications.

8. What type of cooling does the Honeywell 2MLQ-TR2A use?

The module uses natural convection cooling, which eliminates the need for additional cooling fans and enhances its reliability and longevity.

9. Is the Honeywell 2MLQ-TR2A certified?

Yes, the module is CE, UL, and RoHS certified, meeting international standards for safety, quality, and environmental protection.

10. What is the weight of the Honeywell 2MLQ-TR2A Output Module?

The module weighs 0.11 kg, making it lightweight and easy to handle during installation.
