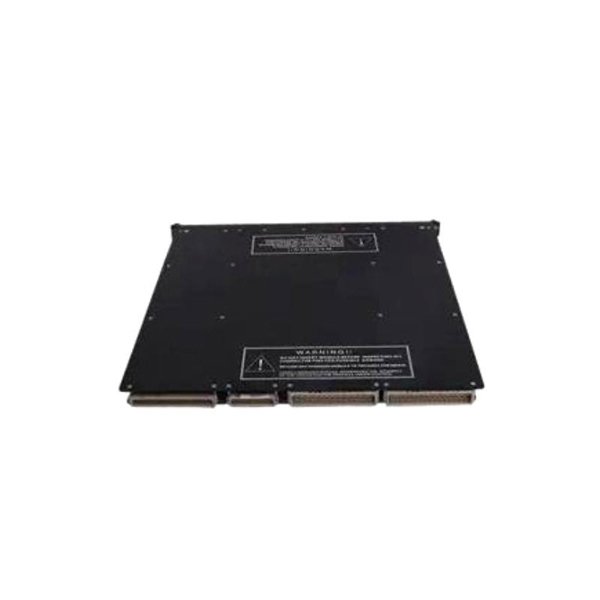

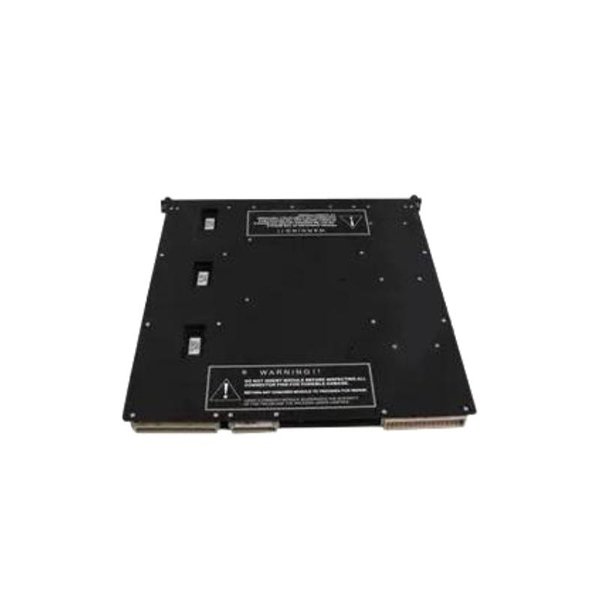

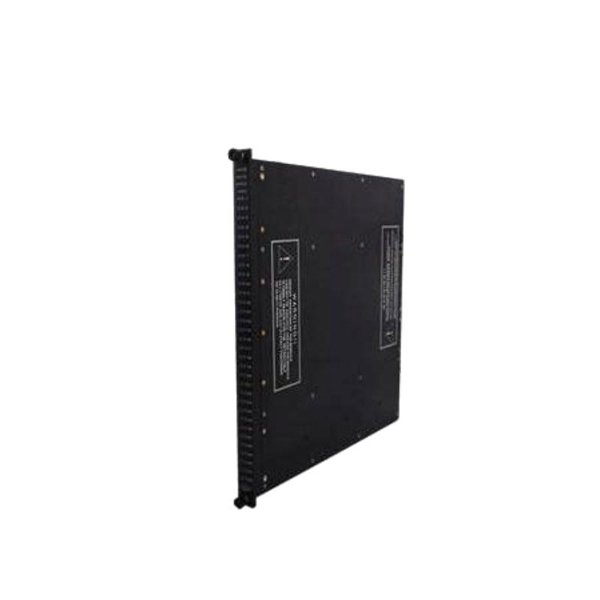

Triconex 3482 Analog Output Module

The Invensys Triconex 3482 Analog Output Module is an advanced, high-performance module designed to handle analog output signals in safety-critical and industrial process control systems. Part of the Triconex safety system, the 3482 module ensures reliable control over multiple analog devices, such as actuators, valves, and other process equipment. It is engineered for applications that require a high level of safety integrity and system reliability. As a robust solution for analog output in industrial environments, this module supports both voltage and current output options, enabling precise control across diverse system needs.

The Triconex 3482 is ideal for industries such as oil and gas, power generation, petrochemicals, and manufacturing, where safety and operational continuity are paramount. It seamlessly integrates into Triconex’s Tricon and TriGard safety systems, ensuring that each system maintains optimal operation under any circumstances.

Key Features

• Multiple Output Channels: Equipped with 16 analog output channels, the 3482 module offers flexibility and scalability for complex control applications.
• High Resolution: Capable of delivering high-precision analog output with 16-bit resolution for accurate control of process devices.
• Dual Output Types: Supports voltage (0-10 V) and current (4-20 mA) output types, catering to a wide range of industrial devices.
• Certified for Safety: The module meets SIL 3 safety standards, ensuring that it can be used in safety-critical applications.
• Durability: Built to withstand harsh industrial environments, the 3482 operates reliably across a broad temperature range and offers IP20 protection.

Product Specifications

Applications

The Invensys Triconex 3482 Analog Output Module is a versatile solution suitable for use in a range of safety-critical applications across different industries:

• Process Control: Ideal for controlling process devices such as actuators, valves, and sensors in industries like oil and gas, chemical processing, and power generation.
• Safety Instrumented Systems (SIS): Used in systems requiring precise and reliable analog control for safety shutdowns and emergency responses.
• Automation Systems: Integrated into industrial automation systems, providing analog output to control and monitor processes in real-time.
• Environmental Control: Controls environmental variables such as temperature, pressure, and flow to maintain system stability and safety.
• Machine Control: Provides analog control for machine actuators and systems in automated environments, ensuring safe and efficient operation.

Advantages

• High Precision: The 3482 module ensures high-precision output, supporting both voltage and current outputs for diverse industrial applications.
• Flexibility: With 16 channels of output, the module is highly flexible, allowing for control of multiple devices simultaneously, making it ideal for complex systems.
• Safety-Certified: The module is SIL 3 certified, meaning it is designed for use in safety-critical applications that require stringent safety standards.
• Reliable Performance: Built to endure harsh industrial conditions, the 3482 provides reliable service in demanding environments with a wide temperature operating range.
• Ease of Integration: Easily integrates into Triconex’s Tricon and TriGard safety systems, providing seamless control in critical process environments.
