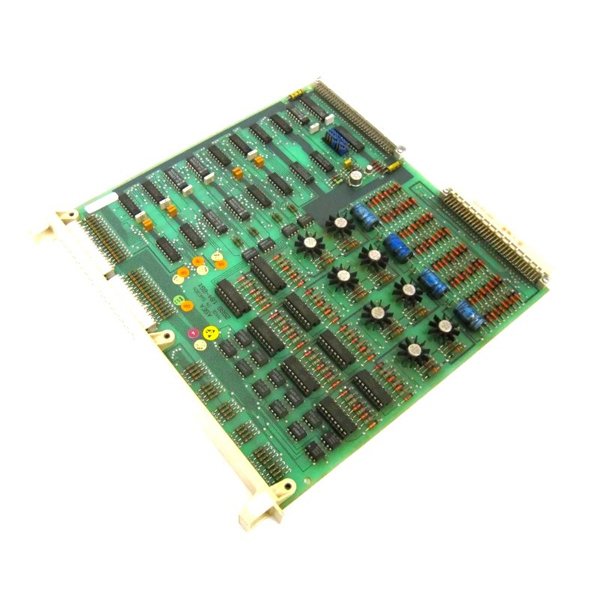

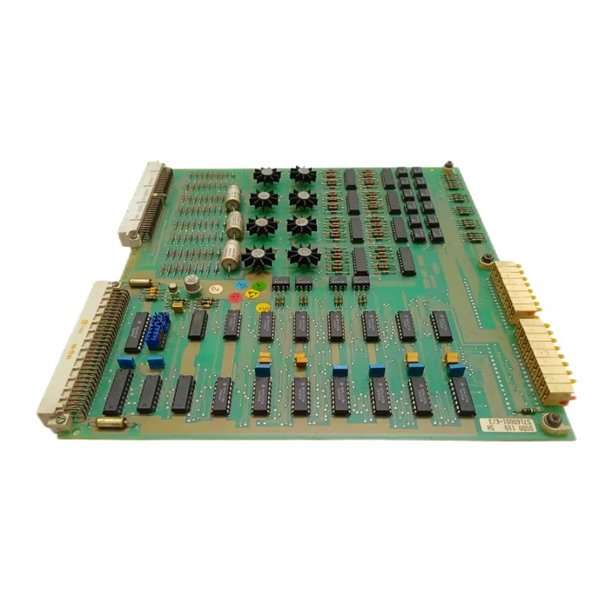

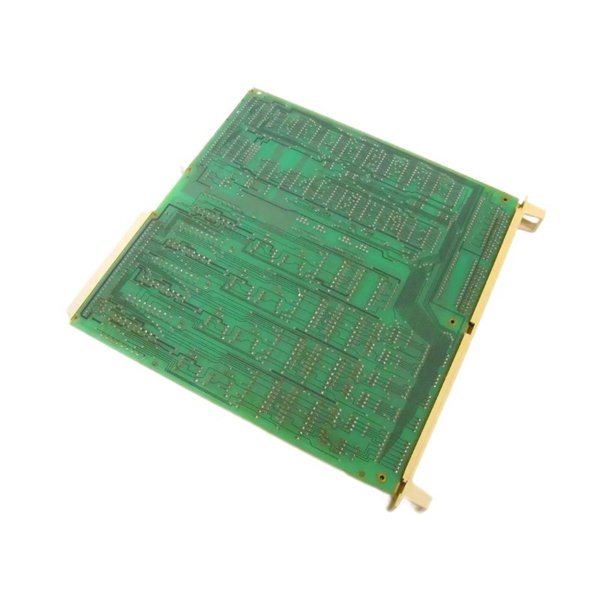

The ABB DSDO 110 57160001-K is a high-performance digital output module, designed for use within ABB’s distributed control systems. This module is an integral component for applications requiring reliable, high-speed digital signal control and output. It is engineered to meet industrial standards for automation systems, offering exceptional flexibility and reliability in a wide range of industrial environments.

The module serves to provide digital outputs that allow operators to control machinery and processes. With a compact design and robust functionality, the DSDO 110 is particularly suitable for high-demand applications where performance and precision are crucial.

Product Parameters

Applications

The ABB DSDO 110 module is ideal for applications in various industries such as:

• Process Control Systems: Enables precise control of digital signals to machinery and actuators.

• Automation Systems: Facilitates automation of industrial processes, enhancing operational efficiency.

• Control Systems for Manufacturing: Used in manufacturing facilities where real-time digital output control is essential.

• Building Management Systems: Used for controlling HVAC systems, lighting, and other digital output systems.

• Oil and Gas Industry: Employs in high-demand environments where reliable digital output control is required for process automation.

Advantages

• High Durability: Built to withstand harsh industrial environments with wide temperature and humidity tolerance.

• Flexible and Scalable: Can be integrated into larger distributed control systems for scalable operations.

• Enhanced Safety: CE and UL certified, ensuring the module meets rigorous safety standards.

• Fast Response Time: Provides high-speed outputs, crucial for time-sensitive applications.

• Compact Design: The small form factor ensures easy installation in tight spaces.

• Low Power Consumption: The module is energy-efficient, contributing to overall system performance improvements.

FAQs

1. What is the maximum output current for the DSDO 110 module?

   The maximum output current per channel is 2 A.

2. How many output channels are available on the module?

   The DSDO 110 has 16 digital output channels.

3. What is the temperature range for operating this module?

   It operates within the range of -20°C to +60°C.

4. Is the DSDO 110 module compatible with other ABB products?

   Yes, it is fully compatible with other ABB control systems and modules.

5. What are the mounting requirements for the DSDO 110?

   It is designed for rail-mounting, making installation quick and easy.

6. Does this module require any special wiring?

   The module operates with a 24 V DC supply and standard wiring for digital outputs.

7. Can the module handle high-frequency switching?

   Yes, it can handle high-frequency switching up to its rated output current.

8. Is the module protected against short circuits?

   Yes, it includes built-in protections to prevent damage from short circuits.

9. What certifications does the DSDO 110 have?

   The module is CE, UL, and CSA certified, ensuring it meets international safety and quality standards.

10. Can the DSDO 110 be used in hazardous locations?

    While the DSDO 110 is designed for industrial environments, specific hazardous location use would require checking additional certifications.
