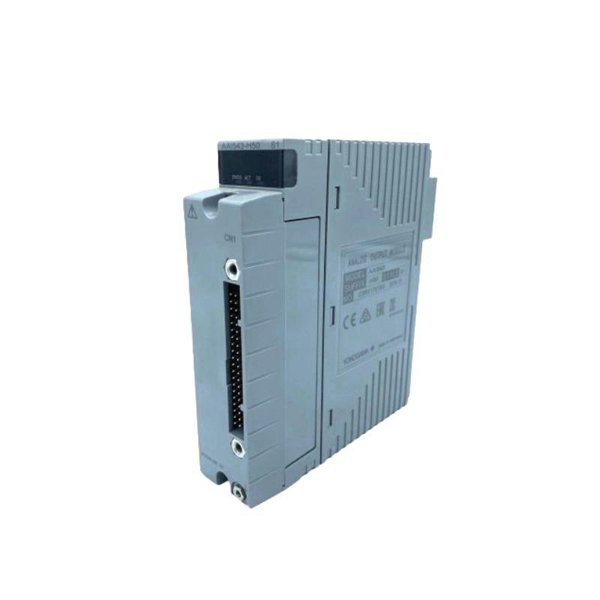

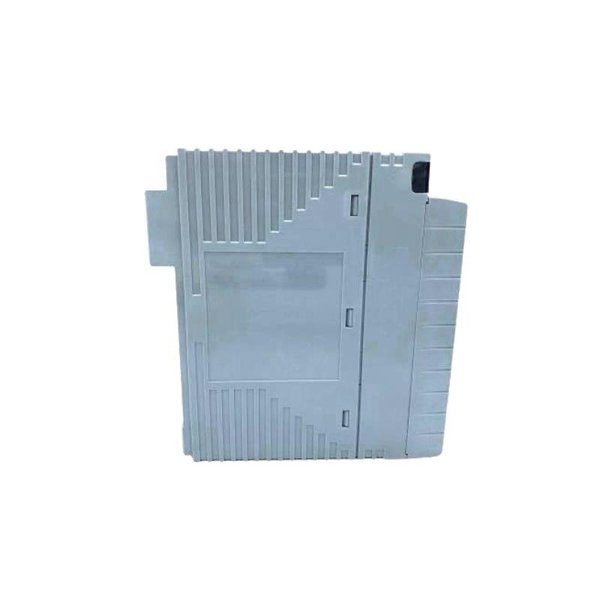

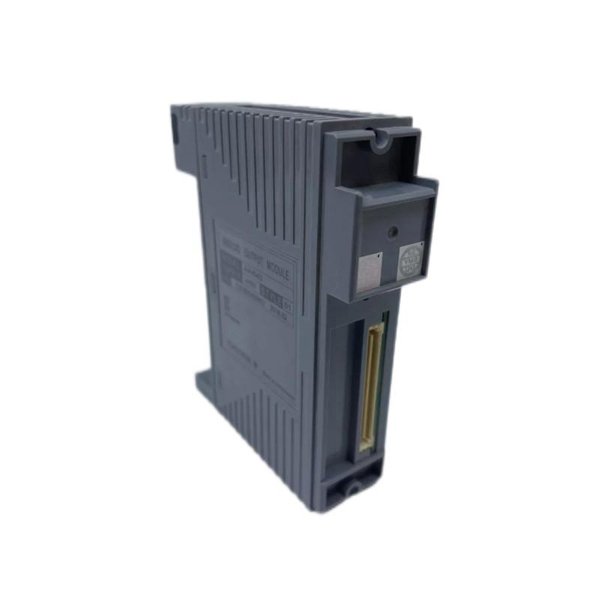

The Yokogawa AAI543-H50 Analog Output Module is a high-performance, reliable solution designed to provide precise analog output in industrial control systems. This module belongs to the AAI500 series, which is well known for its robust design and exceptional functionality. The AAI543-H50 module is engineered for use in process control systems, distributed control systems (DCS), and programmable logic controllers (PLC). It is capable of handling multiple output channels simultaneously, with support for both current and voltage output signals.

Designed to operate in a variety of demanding industrial environments, the AAI543-H50 offers excellent flexibility in terms of output types (current or voltage) and resolution (16-bit). This makes it ideal for industries such as chemical processing, power generation, and manufacturing, where real-time and accurate control of field devices is essential.

With its user-friendly features and compact design, the AAI543-H50 is an excellent choice for systems that require stable and high-precision analog signal output.

Product Specifications

Product Applications

The Yokogawa AAI543-H50 Analog Output Module is used in a variety of applications across multiple industries, where accurate analog output is critical. Some key applications include:

• Process Control Systems: In industries such as chemical manufacturing, oil & gas, and pharmaceuticals, where precise control of field devices (such as valves, actuators, and pumps) is required to maintain optimal process conditions.

• Energy Management: The module is widely used in power plants and renewable energy applications to regulate the output of control devices and ensure consistent energy production.

• Factory Automation: In automated production lines, it ensures the precise control of machines and equipment, like motors, conveyors, and robotic arms, by providing accurate analog signals.

• Instrumentation and Measurement: For measurement and monitoring of industrial equipment, the module can provide feedback to control systems, enhancing overall system performance and reliability.

• Water and Wastewater Treatment: Used in water treatment plants for controlling pumps, actuators, and other equipment necessary for the processing of water and wastewater.

The versatility of the AAI543-H50 makes it suitable for a broad spectrum of industrial applications that require precise and reliable analog signal output.

Advantages of the Yokogawa AAI543-H50 Analog Output Module

1. High Precision and Resolution: With a 16-bit resolution, the AAI543-H50 offers precise output control, ensuring high accuracy for critical applications.

2. Flexible Output Types: The module supports both current (4-20 mA) and voltage (0-10 V) outputs, providing flexibility to meet various system requirements.

3. Wide Operating Temperature Range: It operates in a temperature range of -20°C to +60°C, making it suitable for use in a wide range of environmental conditions.

4. Reliable Communication Protocols: The module supports both Modbus TCP and Yokogawa proprietary protocols, ensuring smooth integration with existing control systems.

5. Compact and Durable Design: Its compact size (107.5 × 32.8 × 130 mm) and DIN rail mounting option make it easy to install in control panels, while the durable construction ensures long-lasting performance.

6. Scalable and Cost-effective: With 4 output channels, the module is a cost-effective solution for systems that require multiple outputs, and its scalability allows for easy system expansion.

7. Low Maintenance: The module is built to be robust, reducing the need for frequent maintenance and minimizing downtime in industrial environments.

8. Energy-Efficient: Designed to operate efficiently with minimal power consumption, the module offers a reliable and sustainable solution for industrial control applications.

9. Versatile Applications: Its compatibility with various industrial automation systems makes it suitable for use in process control, factory automation, energy management, and more.

10. Long-Term Stability: The AAI543-H50 is engineered for consistent, reliable performance, offering long-term stability and reduced operational risks in mission-critical systems.

FAQ (Frequently Asked Questions)

1. What is the output range of the Yokogawa AAI543-H50 module?

   The module provides output ranges of 0-20 mA for current and 0-10 V for voltage.

2. How many output channels does the module support?

   The AAI543-H50 has 4 output channels.

3. Can the module output both current and voltage signals?

   Yes, it can output both 4-20 mA current signals and 0-10 V voltage signals.

4. What is the operating temperature range for this module?

   The module operates within a temperature range of -20°C to +60°C.

5. What communication protocols are supported by the AAI543-H50?

   It supports Modbus TCP and Yokogawa proprietary communication protocols.

6. What is the power supply requirement for the AAI543-H50?

   The module requires a 24 V DC power supply.

7. Is the Yokogawa AAI543-H50 module suitable for outdoor use?

   While it is designed for industrial environments, it is recommended to install it in a controlled environment within the specified operating temperature range.

8. How is the AAI543-H50 mounted?

   The module can be mounted on a DIN rail, allowing for easy installation in control panels.

9. What is the weight of the AAI543-H50?

   The module weighs 0.4 kg.

10. What industries can benefit from using this module?

    The AAI543-H50 is ideal for industries such as process control, energy management, factory automation, and water treatment.
