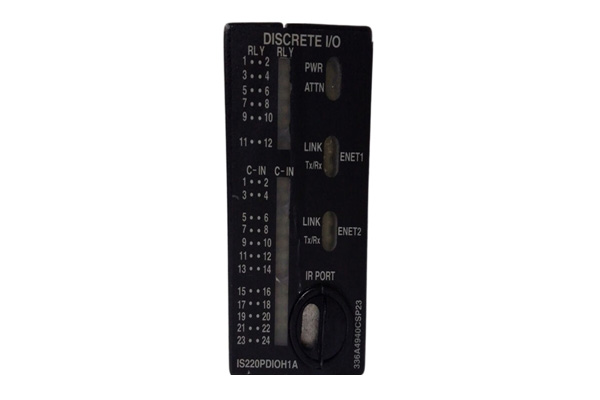

General Electric IS220PDIOH1A is a circuit board produced by General Electric (GE), specifically the I/O packaGeneral Electric module of the Mark VIe Speedtronic system. The following is detailed information and features about General Electric IS220PDIOH1A:

Overview:

General Electric IS220PDIOH1A is an I/O packaGeneral Electric module with two Ethernet ports, a local CPU, and a data acquisition board.

This module can be used with IS200TDBSH2A and terminal boards, and has been authorized for use in hazardous environments.

Electrical characteristics:

Minimum rated voltage: 27.4 VDC

Nominal voltage: 28.0 VDC

Power supply: Dual power redundant input, DC (9-36) V, typical DC24V, power consumption less than 4W

Equipped with DC1500V voltaGeneral Electric isolation and reverse connection protection function

Interface and Communication:

Data electrical interface: 1-2 5Pin terminal interfaces, supporting CAN BUS/DeviceNet/CANOpen bus standards, with a communication speed of up to 1M.

Fiber optic interface: Supports both multimode and single-mode fibers, with a transmission distance of up to 20Km (single-mode).

Protection function:

Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surGeneral Electric protection functions.

Relay alarm output: Fiber optic link fault and power supply fault alarm output, contact capacity: DC48V/1 A.
