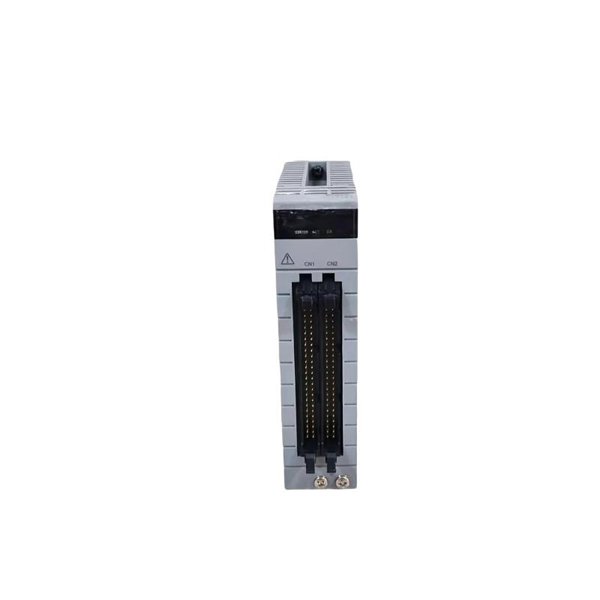

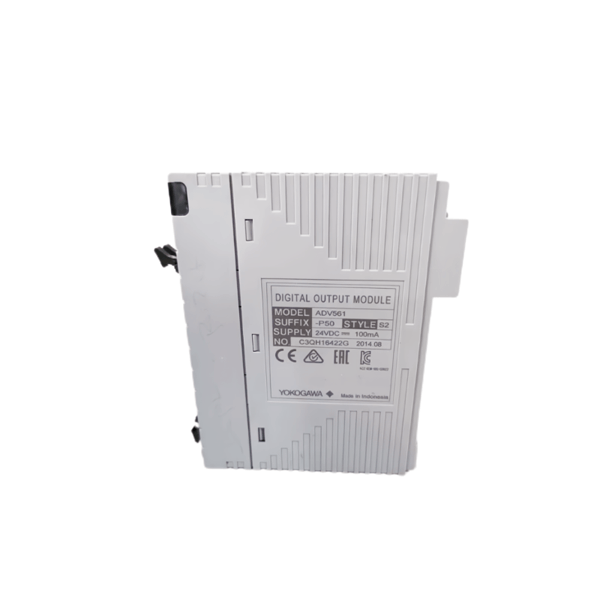

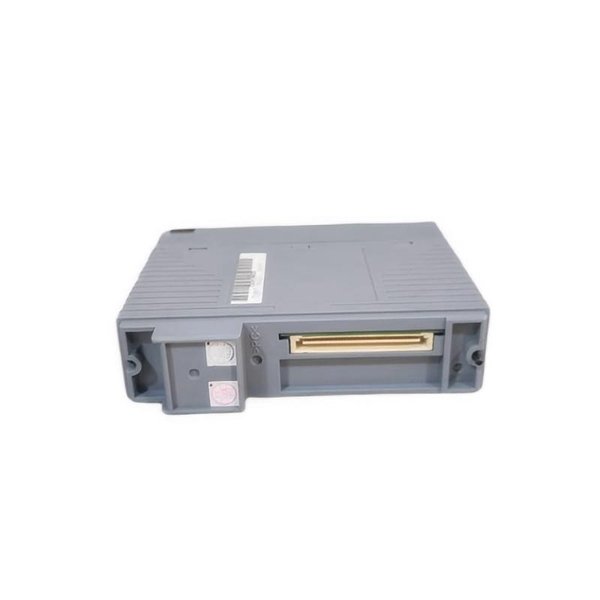

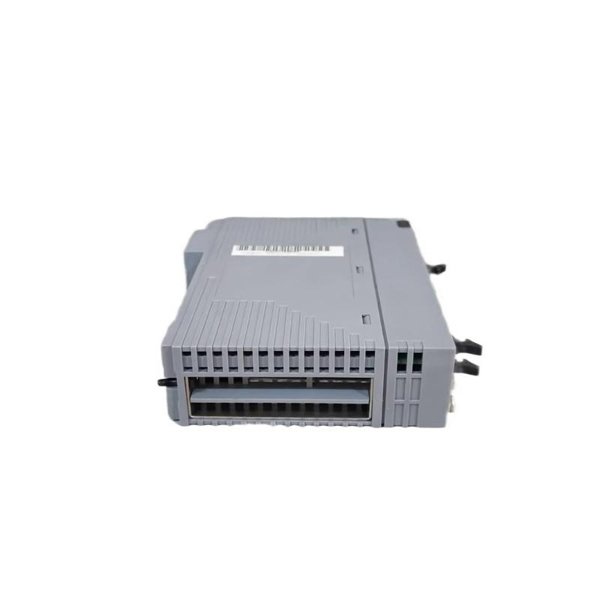

The Yokogawa ADV561-P50 Digital Output Module is a high-quality, reliable component designed for use within Yokogawa’s DCS (Distributed Control System). It serves as part of the Advanced I/O (Input/Output) systems, ensuring smooth and efficient communication between the control system and field devices. The module is widely used in industries such as oil and gas, chemical processing, power generation, and automated manufacturing where precision and system reliability are crucial.

This digital output module is capable of delivering a high-speed and reliable output to control various field devices like solenoids, relays, or valves. As part of the ADV500 series, the ADV561-P50 ensures optimal performance in harsh industrial environments, handling high-density control with ease.

Product Specifications

Applications

The ADV561-P50 Digital Output Module is widely used across various industries where digital outputs are required to interface with devices that switch on/off, like relays, solenoids, or actuators. Its specific applications include:

1. Process Control – In chemical, petrochemical, and pharmaceutical processes, where precision control of valves and relays is needed.

2. Automation Systems – In factory automation, controlling digital devices such as actuators, conveyors, or sensors.

3. Energy Management – Utilized in power generation plants for switching high-power devices on and off reliably.

4. Oil & Gas – Provides outputs for valves, actuators, and emergency shutdown systems.

5. Building Automation – Interfaces with HVAC systems, lighting systems, and other devices requiring digital signals.

6. Water Treatment Plants – Controls pumps, valves, and dosing systems in water purification processes.

Product Advantages

1. High Reliability and Durability

   The ADV561-P50 module is designed for industrial environments, ensuring that it works reliably under extreme temperature conditions (-20°C to +60°C) and in areas with high humidity (up to 95% RH). This durability makes it ideal for mission-critical systems.

2. High-Speed Digital Outputs

   With 16 digital output channels, this module delivers fast, on/off control for devices in real-time applications, ensuring precision and minimizing delays in process control.

3. Compact and Easy Installation

   The module has a compact size (130 x 119.9 x 32.8 mm) and can be easily mounted on a DIN rail, which simplifies installation and saves valuable space in control cabinets.

4. Wide Compatibility

   The ADV561-P50 is compatible with a range of communication protocols, including MODBUS RTU and Yokogawa’s proprietary protocol. This ensures seamless integration with various control systems, such as Yokogawa’s CENTUM VP DCS.

5. Low Power Consumption

   The module consumes only 3 W of power, making it energy-efficient and suitable for long-term use in continuous operation environments.

6. Compliant with International Standards

   The module complies with CE, UL, and RoHS standards, ensuring it meets international safety, environmental, and performance regulations.

7. Versatile Output Configuration

   The 16 digital output channels provide flexibility for various industrial applications, offering both flexibility and reliability for digital control needs.

8. Low Maintenance Requirements

   Designed for long-lasting operation, the ADV561-P50 requires minimal maintenance, reducing downtime and the cost of ownership.

9. Enhanced Safety

   With an IP20 rating, the module is protected from dust and small objects, ensuring a safe operation in industrial environments.

10. Proven Performance

    Built with Yokogawa’s high standards for industrial automation, the ADV561-P50 has proven performance in both domestic and international markets, providing decades of reliable service.

Frequently Asked Questions (FAQ)

1. What is the maximum number of digital outputs the ADV561-P50 module can handle?

   The ADV561-P50 has a total of 16 digital output channels.

2. What is the power consumption of the ADV561-P50 module?

   The module consumes 3 W of power per module.

3. Can the ADV561-P50 be mounted on a standard DIN rail?

   Yes, the module is designed for DIN rail mounting.

4. What is the operating temperature range for this module?

   The ADV561-P50 operates in temperatures from -20°C to +60°C.

5. Which communication protocols does the ADV561-P50 support?

   The module supports MODBUS RTU and Yokogawa’s proprietary communication protocol.

6. What types of field devices can the digital output module control?

   The module can control devices like solenoids, relays, and valves in various industrial applications.

7. What is the protection rating of the ADV561-P50?

   The module has an IP20 rating, meaning it is protected from solid objects greater than 12mm in size.

8. Is the ADV561-P50 module RoHS compliant?

   Yes, the module is RoHS compliant, ensuring it meets environmental safety standards.

9. Can the ADV561-P50 be used in outdoor environments?

   It is designed for indoor use in controlled environments, given its IP20 protection.

10. What is the weight of the ADV561-P50 module?

    The ADV561-P50 weighs 0.3 kg.
